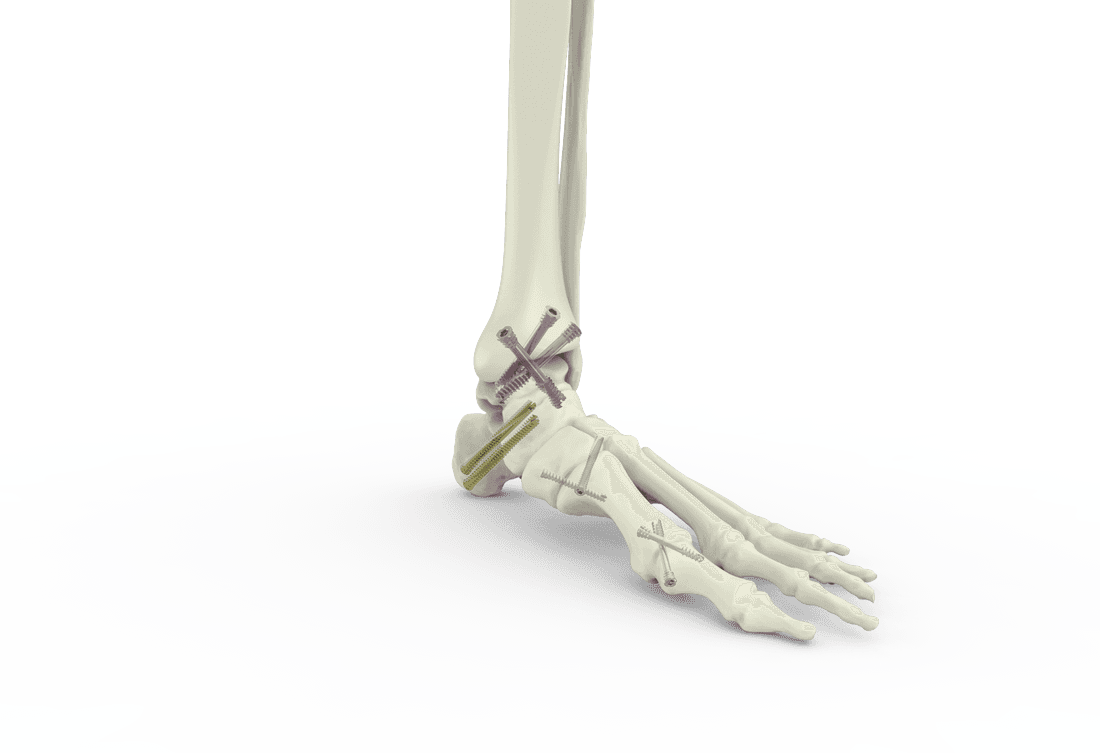

MID-FOOT

Features: Screws with a 2.7 mm diameter are targeted at hand surgery, foot surgery, and small bone fractures. Screws with a diameter ranging from 3.5 to 4.5 mm are aimed to tackle fractures of lateral malleolus, distal tibia (including intra-articular), radius, ulna, olecranon, distal humerus, and pelvic ring. Screws with a diameter that ranges from 6.5 to 7.2 mm are used in femoral neck and proximal femur fractures (including basocervical and subtrochanteric), femoral condyles, tibial plateau, and ankle arthrodesis.

Features: The differential pitch thread shape is designed for optimal grip and penetration through cortical bone. Torx Head – shape supports a higher torque without degradation. Head Conical shape – Increase the perception of stability once it reaches its final position. Made of Titanium alloy Ti6Al4V, the I.B.S.® Mid and Hindfoot screws are available in 4.5mm, 6.5 mm and 8.0mm diameters. The I.B.S.® screws are delivered in a sterile tube. The I.B.S.™ 6.5mm compression screws are available in two versions : 15mm distal thread (C) and 30mm distal thread (C+)

Features: The Omni Plating System is a universal plating system that accommodates many foot and ankle indications. Plate screws are available in 2.8mm & 3.5mm Non-locking and variable angle locking screw options (30° cone of angulation)   The system offers a PlantarFiX Post, which is a component that locks into the plate and acts as a metal cortex for the 3.5mm cannulated lag screw, providing the following benefits: Significantly increases peak compression (2x vs. independent lag screw)* Provides compression where it is needed most: plantar-side of the construct Compression is independent of patient’s bone quality The PlantarFiX Post is compatible with the locking holes of all the plates in this system. The system includes a targeting system for accurate placement of the 3.5mm lag screw through the post, allowing for reliable and reproducible results.

The Cartilaginator is a specialized surgical instrument engineered for precise joint preparation prior to fusion procedures. Its compatibility with the Stryker TPS power unit ensures seamless integration into existing surgical setups. Surgeons have reported that The Cartilaginator significantly facilitates joint preparation in foot fusion surgeries.

Features:   Low-Profile Inside / Outside stepped-tooth design that resists pullout Available in multiple sizes from 8 to 25mm Easy-to-Use Staple Inserter NeoSpan® SE is a SuperElastic, compression-ready fixation system designed for fixation of fractures, fusions or osteotomies of the bones in the forefoot, midfoot and rearfoot. NeoSpan® SE’s compressive properties and stepped-tooth design resist pullout.  The instrumentation kit is sterile and disposable. The inserter spreads the legs of the staple before released for compression loading.       Compression loading: With the Staple firmly in the Inserter’s metal prongs, slowly twist the top handle clockwise, extending the internal plunger to spread the staple’s legs.   Release: Slowly twist the top handle counterclockwise.

The Extremity Medical IO-FIX IntraOsseous Fixation Device is intended for the reduction and internal fixation of arthrodesis, osteotomy, intra-articular and extra-articular fractures and nonunions of the small bones and joints of the foot & ankle. This two-part construct is specifically intended for use in the Ankle Fusion, Calcanealcuboid , , Lapidus, MTP, Metatarso-Cuneiform, TMTJ’s (2nd,3rd,4th), Subtalar, Talonavicular,  and Tibia-Talar joints. Features:    Zero Profile – no soft tissue irritation Implant compresses across joint – uniform compression Reinforced Bone Bridge Stable Fixation Avoids the need to bend plates or hardware Easy, Fast, & Reproducible Results Versatile Applications Removable Manufacturers Website :http://www.extremitymedical.com
