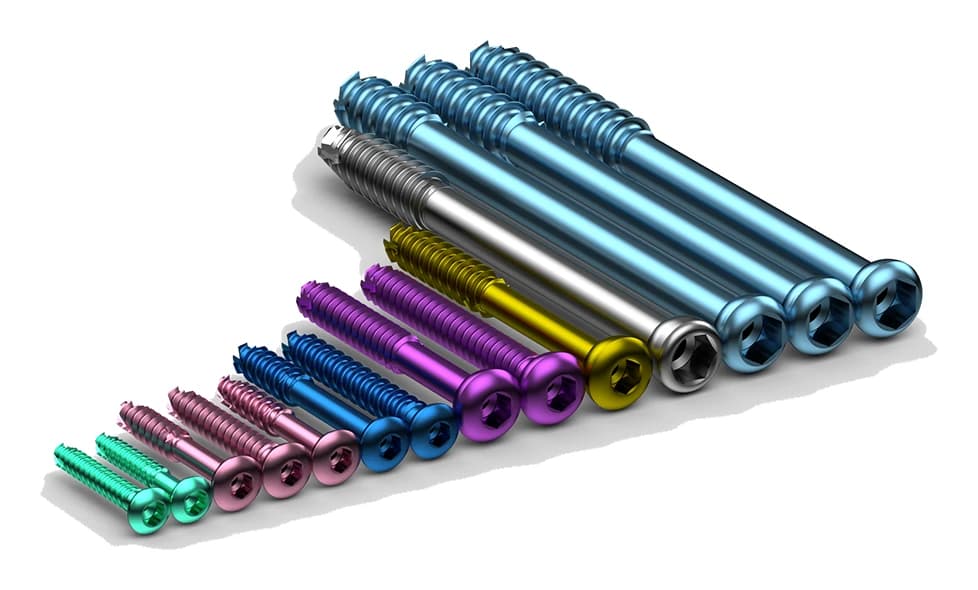

Overview
LSM Superscrews are cannulated titanium screws (Ti6Al4V, ISO 5832-3), self-drilling and self-tapping, in diameters of 2.7, 3.5, 4.0, 4.5, 5.0, 6.5 and 7.2 mm for fracture fixation and arthrodesis. Cortical and cancellous, full- and partial-thread versions are available. They are inserted over a guide wire, are colour-coded by diameter and are supplied sterile in single packs. Washers and a single instrument set (SCR 100000) cover the whole range.
Features
- Self-drilling and self-tapping; cannulated drills and countersinks are in the set where preparation is needed.
- Cannulated for insertion over a guide wire: Ø 1.1 mm (2.7 mm screws), Ø 1.6 mm (3.5 and 4.0 mm), Ø 2.2 mm (4.5 and 5.0 mm) and Ø 3.5 mm (6.5 and 7.2 mm).
- Hexagonal socket: 2.5 mm (2.7 to 4.0 mm screws), 3.5 mm (4.5 and 5.0 mm) and 5 mm (6.5 and 7.2 mm).

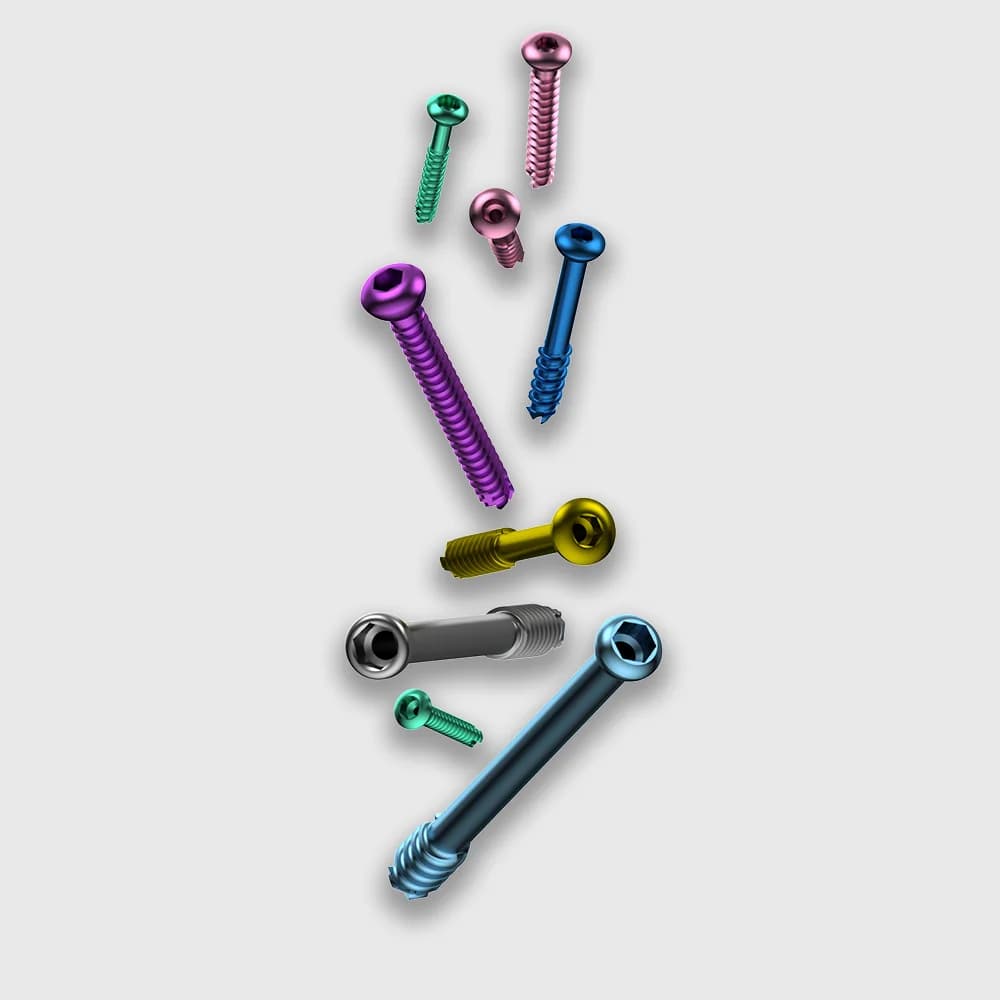

- Colour-coded by diameter.
- Titanium washers, external Ø 7 to 19 mm, to increase the compression area; the technique recommends them in osteoporotic bone with the 6.5 and 7.2 mm screws.
- Supplied sterile, individually packed.
Indications
- 2.7 mm screws: hand and foot surgery, and small-bone fractures.
- 3.5, 4.0 and 4.5 mm screws: fractures of the lateral malleolus, intra-articular fractures of the distal tibia, and fractures of the radius, ulna, olecranon, distal humerus and pelvic ring.
- 5.0 mm screws: metaphyseal fractures, tibial plateau, femoral condyle, distal tibial and malleolar fractures, and tibiotalar and subtalar arthrodesis.
- 6.5 and 7.2 mm screws: femoral neck fractures (including basicervical and subcapital), proximal femoral fractures with medial fragments, femoral condyle and tibial plateau fractures, and tibiotalar and subtalar arthrodesis.
Indications, contraindications, warnings and precautions are listed in the instructions for use (IFU).
Sizes and ordering
For availability, kit contents or a quote, use Enquire above or call us.
Cortical screw, full thread — Ø 2.7 mm (cannulation Ø 1.1 mm, hex 2.5 mm)11 items
| Ref. | Length (mm) |
|---|---|
| HMV 110-010ST | 10 |
| HMV 110-012ST | 12 |
| HMV 110-014ST | 14 |
| HMV 110-016ST | 16 |
| HMV 110-018ST | 18 |
| HMV 110-020ST | 20 |
| HMV 110-022ST | 22 |
| HMV 110-024ST | 24 |
| HMV 110-026ST | 26 |
| HMV 110-028ST | 28 |
| HMV 110-030ST | 30 |
Cortical screw, partial thread — Ø 2.7 mm (cannulation Ø 1.1 mm, hex 2.5 mm)11 items
| Ref. | Length (mm) | Thread length (mm) |
|---|---|---|
| HMV 111-010ST | 10 | 12 |
| HMV 111-012ST | 12 | 12 |
| HMV 111-014ST | 14 | 12 |
| HMV 111-016ST | 16 | 12 |
| HMV 111-018ST | 18 | 12 |
| HMV 111-020ST | 20 | 12 |
| HMV 111-022ST | 22 | 12 |
| HMV 111-024ST | 24 | 12 |
| HMV 111-026ST | 26 | 12 |
| HMV 111-028ST | 28 | 12 |
| HMV 111-030ST | 30 | 12 |
Cancellous screw, partial thread — Ø 3.5 mm (cannulation Ø 1.6 mm, hex 2.5 mm)25 items
| Ref. | Length (mm) | Thread length (mm) |
|---|---|---|
| HMV 114-010ST | 10 | 8 |
| HMV 114-012ST | 12 | 10 |
| HMV 114-014ST | 14 | 12 |
| HMV 114-016ST | 16 | 12 |
| HMV 114-018ST | 18 | 12 |
| HMV 114-020ST | 20 | 12 |
| HMV 114-022ST | 22 | 12 |
| HMV 114-024ST | 24 | 12 |
| HMV 114-026ST | 26 | 12 |
| HMV 114-028ST | 28 | 12 |
| HMV 114-030ST | 30 | 12 |
| HMV 114-032ST | 32 | 16 |
| HMV 114-034ST | 34 | 16 |
| HMV 114-036ST | 36 | 16 |
| HMV 114-038ST | 38 | 16 |
| HMV 114-040ST | 40 | 16 |
| HMV 114-042ST | 42 | 16 |
| HMV 114-044ST | 44 | 16 |
| HMV 114-046ST | 46 | 16 |
| HMV 114-048ST | 48 | 16 |
| HMV 114-050ST | 50 | 16 |
| HMV 114-055ST | 55 | 20 |
| HMV 114-060ST | 60 | 20 |
| HMV 114-065ST | 65 | 20 |
| HMV 114-070ST | 70 | 20 |
Cortical screw, full thread — Ø 3.5 mm (cannulation Ø 1.6 mm, hex 2.5 mm)25 items
| Ref. | Length (mm) |
|---|---|
| HMV 115-010ST | 10 |
| HMV 115-012ST | 12 |
| HMV 115-014ST | 14 |
| HMV 115-016ST | 16 |
| HMV 115-018ST | 18 |
| HMV 115-020ST | 20 |
| HMV 115-022ST | 22 |
| HMV 115-024ST | 24 |
| HMV 115-026ST | 26 |
| HMV 115-028ST | 28 |
| HMV 115-030ST | 30 |
| HMV 115-032ST | 32 |
| HMV 115-034ST | 34 |
| HMV 115-036ST | 36 |
| HMV 115-038ST | 38 |
| HMV 115-040ST | 40 |
| HMV 115-042ST | 42 |
| HMV 115-044ST | 44 |
| HMV 115-046ST | 46 |
| HMV 115-048ST | 48 |
| HMV 115-050ST | 50 |
| HMV 115-055ST | 55 |
| HMV 115-060ST | 60 |
| HMV 115-065ST | 65 |
| HMV 115-070ST | 70 |
Cortical screw, partial thread — Ø 3.5 mm (cannulation Ø 1.6 mm, hex 2.5 mm)25 items
| Ref. | Length (mm) | Thread length (mm) |
|---|---|---|
| HMV 116-010ST | 10 | 8.5 |
| HMV 116-012ST | 12 | 10.5 |
| HMV 116-014ST | 14 | 12 |
| HMV 116-016ST | 16 | 12 |
| HMV 116-018ST | 18 | 12 |
| HMV 116-020ST | 20 | 12 |
| HMV 116-022ST | 22 | 12 |
| HMV 116-024ST | 24 | 12 |
| HMV 116-026ST | 26 | 12 |
| HMV 116-028ST | 28 | 12 |
| HMV 116-030ST | 30 | 12 |
| HMV 116-032ST | 32 | 16 |
| HMV 116-034ST | 34 | 16 |
| HMV 116-036ST | 36 | 16 |
| HMV 116-038ST | 38 | 16 |
| HMV 116-040ST | 40 | 16 |
| HMV 116-042ST | 42 | 16 |
| HMV 116-044ST | 44 | 16 |
| HMV 116-046ST | 46 | 16 |
| HMV 116-048ST | 48 | 16 |
| HMV 116-050ST | 50 | 16 |
| HMV 116-055ST | 55 | 20 |
| HMV 116-060ST | 60 | 20 |
| HMV 116-065ST | 65 | 20 |
| HMV 116-070ST | 70 | 20 |
Cancellous screw, full thread — Ø 4.0 mm (cannulation Ø 1.6 mm, hex 2.5 mm)25 items
| Ref. | Length (mm) |
|---|---|
| HMV 136-010ST | 10 |
| HMV 136-012ST | 12 |
| HMV 136-014ST | 14 |
| HMV 136-016ST | 16 |
| HMV 136-018ST | 18 |
| HMV 136-020ST | 20 |
| HMV 136-022ST | 22 |
| HMV 136-024ST | 24 |
| HMV 136-026ST | 26 |
| HMV 136-028ST | 28 |
| HMV 136-030ST | 30 |
| HMV 136-032ST | 32 |
| HMV 136-034ST | 34 |
| HMV 136-036ST | 36 |
| HMV 136-038ST | 38 |
| HMV 136-040ST | 40 |
| HMV 136-042ST | 42 |
| HMV 136-044ST | 44 |
| HMV 136-046ST | 46 |
| HMV 136-048ST | 48 |
| HMV 136-050ST | 50 |
| HMV 136-055ST | 55 |
| HMV 136-060ST | 60 |
| HMV 136-065ST | 65 |
| HMV 136-070ST | 70 |
Cancellous screw, partial thread — Ø 4.0 mm (cannulation Ø 1.6 mm, hex 2.5 mm)25 items
| Ref. | Length (mm) | Thread length (mm) |
|---|---|---|
| HMV 135-010ST | 10 | 8 |
| HMV 135-012ST | 12 | 10 |
| HMV 135-014ST | 14 | 12 |
| HMV 135-016ST | 16 | 12 |
| HMV 135-018ST | 18 | 12 |
| HMV 135-020ST | 20 | 12 |
| HMV 135-022ST | 22 | 12 |
| HMV 135-024ST | 24 | 12 |
| HMV 135-026ST | 26 | 12 |
| HMV 135-028ST | 28 | 12 |
| HMV 135-030ST | 30 | 12 |
| HMV 135-032ST | 32 | 12 |
| HMV 135-034ST | 34 | 16 |
| HMV 135-036ST | 36 | 16 |
| HMV 135-038ST | 38 | 16 |
| HMV 135-040ST | 40 | 16 |
| HMV 135-042ST | 42 | 16 |
| HMV 135-044ST | 44 | 16 |
| HMV 135-046ST | 46 | 16 |
| HMV 135-048ST | 48 | 16 |
| HMV 135-050ST | 50 | 16 |
| HMV 135-055ST | 55 | 16 |
| HMV 135-060ST | 60 | 16 |
| HMV 135-065ST | 65 | 16 |
| HMV 135-070ST | 70 | 16 |
Cortical screw, full thread — Ø 4.5 mm (cannulation Ø 2.2 mm, hex 3.5 mm)20 items
| Ref. | Length (mm) |
|---|---|
| HMV 120-020ST | 20 |
| HMV 120-022ST | 22 |
| HMV 120-024ST | 24 |
| HMV 120-026ST | 26 |
| HMV 120-028ST | 28 |
| HMV 120-030ST | 30 |
| HMV 120-032ST | 32 |
| HMV 120-034ST | 34 |
| HMV 120-036ST | 36 |
| HMV 120-038ST | 38 |
| HMV 120-040ST | 40 |
| HMV 120-042ST | 42 |
| HMV 120-044ST | 44 |
| HMV 120-046ST | 46 |
| HMV 120-048ST | 48 |
| HMV 120-050ST | 50 |
| HMV 120-055ST | 55 |
| HMV 120-060ST | 60 |
| HMV 120-065ST | 65 |
| HMV 120-070ST | 70 |
Cortical screw, partial thread — Ø 4.5 mm (cannulation Ø 2.2 mm, hex 3.5 mm)17 items
| Ref. | Length (mm) | Thread length (mm) |
|---|---|---|
| HMV 125-026ST | 26 | 20 |
| HMV 125-028ST | 28 | 20 |
| HMV 125-030ST | 30 | 20 |
| HMV 125-032ST | 32 | 20 |
| HMV 125-034ST | 34 | 20 |
| HMV 125-036ST | 36 | 20 |
| HMV 125-038ST | 38 | 20 |
| HMV 125-040ST | 40 | 20 |
| HMV 125-042ST | 42 | 20 |
| HMV 125-044ST | 44 | 20 |
| HMV 125-046ST | 46 | 20 |
| HMV 125-048ST | 48 | 20 |
| HMV 125-050ST | 50 | 20 |
| HMV 125-055ST | 55 | 20 |
| HMV 125-060ST | 60 | 20 |
| HMV 125-065ST | 65 | 20 |
| HMV 125-070ST | 70 | 20 |
Cancellous screw, partial thread — Ø 5.0 mm (cannulation Ø 2.2 mm, hex 3.5 mm)17 items
| Ref. | Length (mm) | Thread length (mm) |
|---|---|---|
| HMV 140-026ST | 26 | 20 |
| HMV 140-028ST | 28 | 20 |
| HMV 140-030ST | 30 | 20 |
| HMV 140-032ST | 32 | 20 |
| HMV 140-034ST | 34 | 20 |
| HMV 140-036ST | 36 | 20 |
| HMV 140-038ST | 38 | 20 |
| HMV 140-040ST | 40 | 20 |
| HMV 140-042ST | 42 | 20 |
| HMV 140-044ST | 44 | 20 |
| HMV 140-046ST | 46 | 20 |
| HMV 140-048ST | 48 | 20 |
| HMV 140-050ST | 50 | 20 |
| HMV 140-055ST | 55 | 20 |
| HMV 140-060ST | 60 | 20 |
| HMV 140-065ST | 65 | 20 |
| HMV 140-070ST | 70 | 20 |
Cancellous screw, partial thread — Ø 6.5 mm (cannulation Ø 3.5 mm, hex 5 mm)20 items
| Ref. | Length (mm) | Thread length (mm) |
|---|---|---|
| HMV 200-025 | 25 | 15 |
| HMV 200-030 | 30 | 15 |
| HMV 200-035 | 35 | 22 |
| HMV 200-040 | 40 | 22 |
| HMV 200-045 | 45 | 22 |
| HMV 200-050 | 50 | 22 |
| HMV 200-055 | 55 | 22 |
| HMV 200-060 | 60 | 22 |
| HMV 200-065 | 65 | 22 |
| HMV 200-070 | 70 | 22 |
| HMV 200-075 | 75 | 22 |
| HMV 200-080 | 80 | 22 |
| HMV 200-085 | 85 | 22 |
| HMV 200-090 | 90 | 22 |
| HMV 200-095 | 95 | 22 |
| HMV 200-100 | 100 | 22 |
| HMV 200-105 | 105 | 22 |
| HMV 200-110 | 110 | 22 |
| HMV 200-115 | 115 | 22 |
| HMV 200-120 | 120 | 22 |
Cancellous screw, partial thread — Ø 7.2 mm (cannulation Ø 3.5 mm, hex 5 mm; 125–140 mm on request)24 items
| Ref. (thread 16 mm) | Ref. (thread 22 mm) | Ref. (thread 32 mm) | Length (mm) |
|---|---|---|---|
| HMV 202-025ST | — | — | 25 |
| HMV 202-030ST | — | — | 30 |
| HMV 202-035ST | HMV 205-035ST | — | 35 |
| HMV 202-040ST | HMV 205-040ST | HMV 204-040ST | 40 |
| HMV 202-045ST | HMV 205-045ST | HMV 204-045ST | 45 |
| HMV 202-050ST | HMV 205-050ST | HMV 204-050ST | 50 |
| HMV 202-055ST | HMV 205-055ST | HMV 204-055ST | 55 |
| HMV 202-060ST | HMV 205-060ST | HMV 204-060ST | 60 |
| HMV 202-065ST | HMV 205-065ST | HMV 204-065ST | 65 |
| HMV 202-070ST | HMV 205-070ST | HMV 204-070ST | 70 |
| HMV 202-075ST | HMV 205-075ST | HMV 204-075ST | 75 |
| HMV 202-080ST | HMV 205-080ST | HMV 204-080ST | 80 |
| HMV 202-085ST | HMV 205-085ST | HMV 204-085ST | 85 |
| HMV 202-090ST | HMV 205-090ST | HMV 204-090ST | 90 |
| HMV 202-095ST | HMV 205-095ST | HMV 204-095ST | 95 |
| HMV 202-100ST | HMV 205-100ST | HMV 204-100ST | 100 |
| HMV 202-105ST | HMV 205-105ST | HMV 204-105ST | 105 |
| HMV 202-110ST | HMV 205-110ST | HMV 204-110ST | 110 |
| HMV 202-115ST | HMV 205-115ST | HMV 204-115ST | 115 |
| HMV 202-120ST | HMV 205-120ST | HMV 204-120ST | 120 |
| HMV 202-125ST | HMV 205-125ST | HMV 204-125ST | 125 |
| HMV 202-130ST | HMV 205-130ST | HMV 204-130ST | 130 |
| HMV 202-135ST | HMV 205-135ST | HMV 204-135ST | 135 |
| HMV 202-140ST | HMV 205-140ST | HMV 204-140ST | 140 |

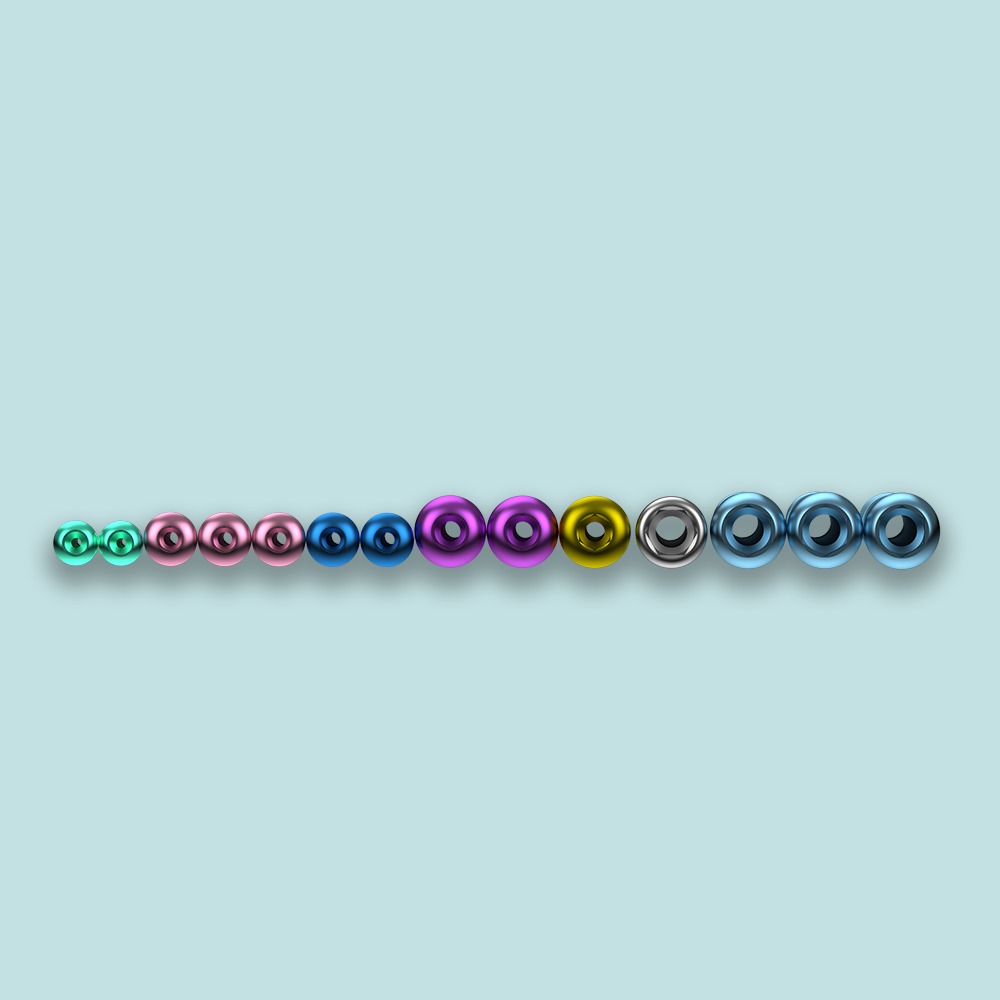

Washers (Ti6Al4V, sterile)7 items
| Ref. | For screw Ø (mm) | External Ø (mm) | Internal Ø (mm) |
|---|---|---|---|
| HMV 357ST | 2.7, 3.5, 4.0 | 7 | 4.2 |
| HMV 356ST | 4.5, 5.0, 6.5 | 13 | 6.7 |
| HMV 355ST | 4.5, 5.0, 6.5 | 16 | 6.7 |
| HMV 354ST | 4.5, 5.0, 6.5 | 19 | 6.7 |
| HMV 206ST | 7.2 | 13 | 7.5 |
| HMV 207ST | 7.2 | 16 | 7.5 |
| HMV 208ST | 7.2 | 19 | 7.5 |

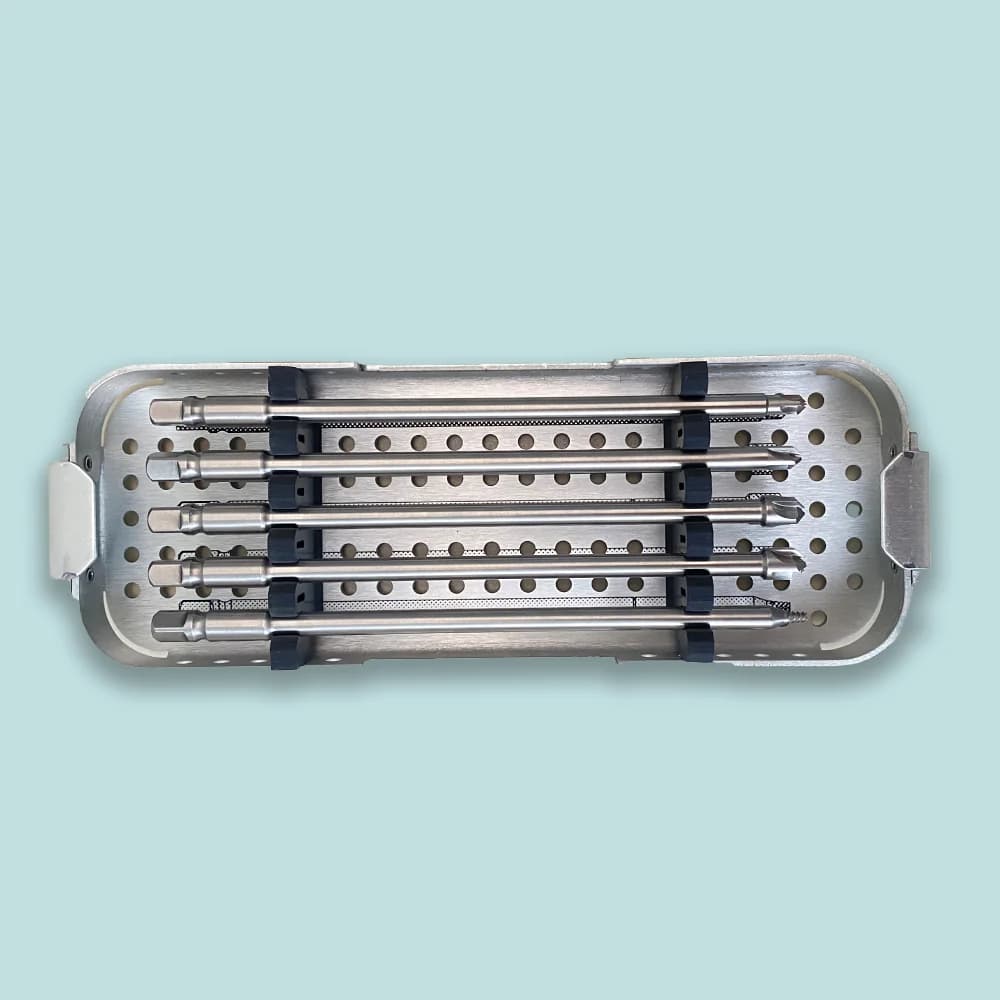

Instrument set SCR 10000026 items
| Ref. | Description | For screws |
|---|---|---|
| SCR 100000 | Complete instrument set | All diameters |
| HME 353-02 | Guide wire Ø 1 mm, L 155 mm | Ø 2.7 mm |
| HMV 311 | Cannulated drill bit Ø 2 mm | Ø 2.7 mm |
| STR 06050A | Cannulated countersink Ø 5 × 1 mm | Ø 2.7 mm |
| HMV 115-1 | Guide wire Ø 1.5 mm, L 155 mm | Ø 3.5 and 4.0 mm |
| HMV 166-28 | Cannulated drill bit Ø 2.8 mm | Ø 3.5 and 4.0 mm |
| STR 06060A | Cannulated countersink Ø 6 × 1.5 mm | Ø 3.5 and 4.0 mm |
| HMV 353-04 | Threaded guide wire Ø 2 mm, L 230 mm | Ø 4.5 and 5.0 mm |
| HMV 167-35 | Cannulated drill bit Ø 3.5 mm | Ø 4.5 and 5.0 mm |
| STR 06080A | Cannulated countersink Ø 8 × 2 mm | Ø 4.5 and 5.0 mm |
| HMV 200-002 | Guide wire Ø 3.2 mm, L 230 mm | Ø 6.5 and 7.2 mm |
| HMV 200-007 | Cannulated drill bit Ø 5 mm | Ø 6.5 and 7.2 mm |
| STR 06080B | Cannulated countersink Ø 8 × 3.2 mm | Ø 6.5 and 7.2 mm |
| HMV 200-001 | Adjustable guide | Ø 6.5 and 7.2 mm |
| STR 031250 | Cannulated screwdriver, hex 2.5 mm | Ø 2.7, 3.5 and 4.0 mm |
| STR 031350 | Cannulated screwdriver, hex 3.5 mm | Ø 4.5 and 5.0 mm |
| STR 031500 | Cannulated screwdriver, hex 5 mm | Ø 6.5 and 7.2 mm |
| HME 353-01 | Guide wire measuring device | Ø 2.7, 3.5 and 4.0 mm |
| HM 00110 | Guide wire measuring device | Ø 4.5, 5.0, 6.5 and 7.2 mm |
| STR 081250 | Extractor, hex 2.5 mm | Ø 2.7, 3.5 and 4.0 mm |
| STR 081350 | Extractor, hex 3.5 mm | Ø 4.5 and 5.0 mm |
| STR 081500 | Extractor, hex 5 mm | Ø 6.5 and 7.2 mm |
| STR 150020 | Cannulated T-handle (1/4" coupling) | All diameters |
| STR 13R127 | Cannulated straight handle (1/4" coupling) | All diameters |
| HMV 106-000 | Tray | — |
| HMV 106-001 | Internal tray | — |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the LSM-Med website or the instructions for use before ordering.
Surgical Technique & Brochures
Related Products
Foot & ankle
CoLink® Bone Graft Harvester
Sterile, single-use, pre-assembled harvester that morselises cancellous bone graft, in 6 and 8 mm diameters, driven by a power reamer.
View product
Foot & ankle
IBS-B™ MIS Beveled Screw System
Cannulated, self-drilling titanium screws with a 45° bevelled head, in 3.3, 4.0 and 6.5 mm, for minimally invasive foot surgery.
View product
Foot & ankle
I.B.S.™ Compression Screws – 4.5, 6.5 and 8.0 mm
Cannulated, self-drilling, self-tapping titanium alloy compression and neutralisation screws for the midfoot and hindfoot.
View product
