CoLink XP is a low-profile titanium plating system for the forefoot and midfoot. The indication-specific MTP, Lapidus and Y plates have a transverse hole for a lag screw that crosses the joint and compresses the fusion site, without a separate cross-joint screw. Universal and H plates and a revision MTP plate complete the range, using the same screws and instruments. The Lapidus, Y and universal plates are also known as Tarsalis plates.
Features
- Transverse lag screw (3.0 mm) through the plate for mechanical compression across the fusion site.

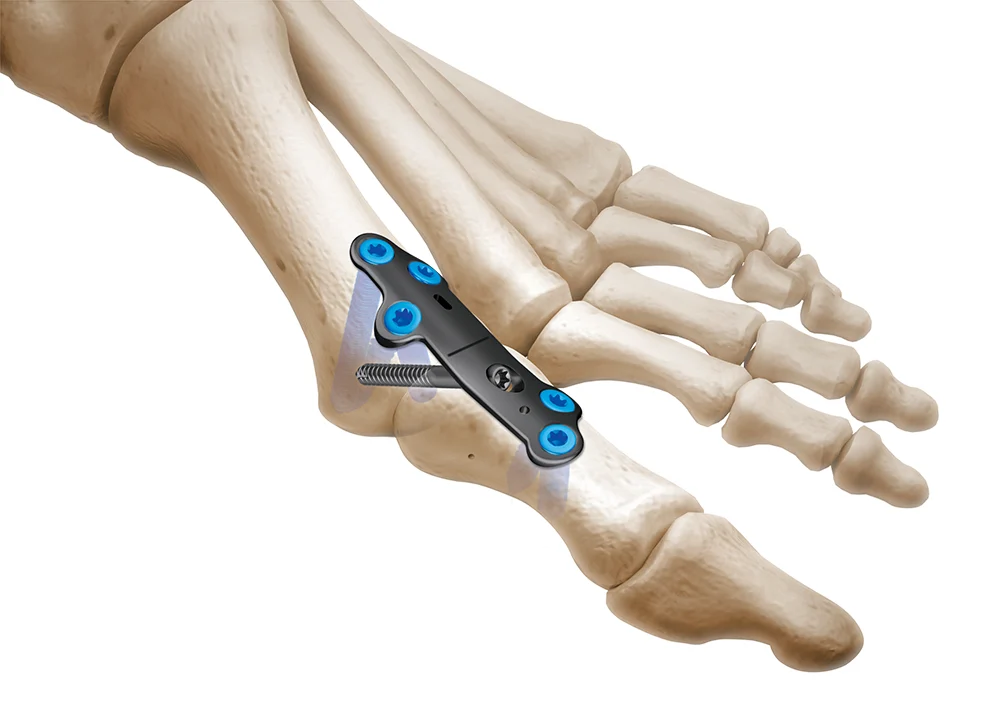

- MTP plate XP: 6-hole, with a laser mark for joint-line placement.
- Lapidus plates XP in three sizes: standard, +1 mm and +2 mm.

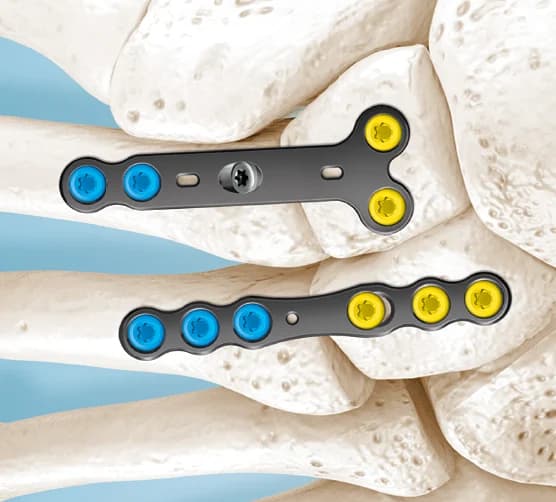

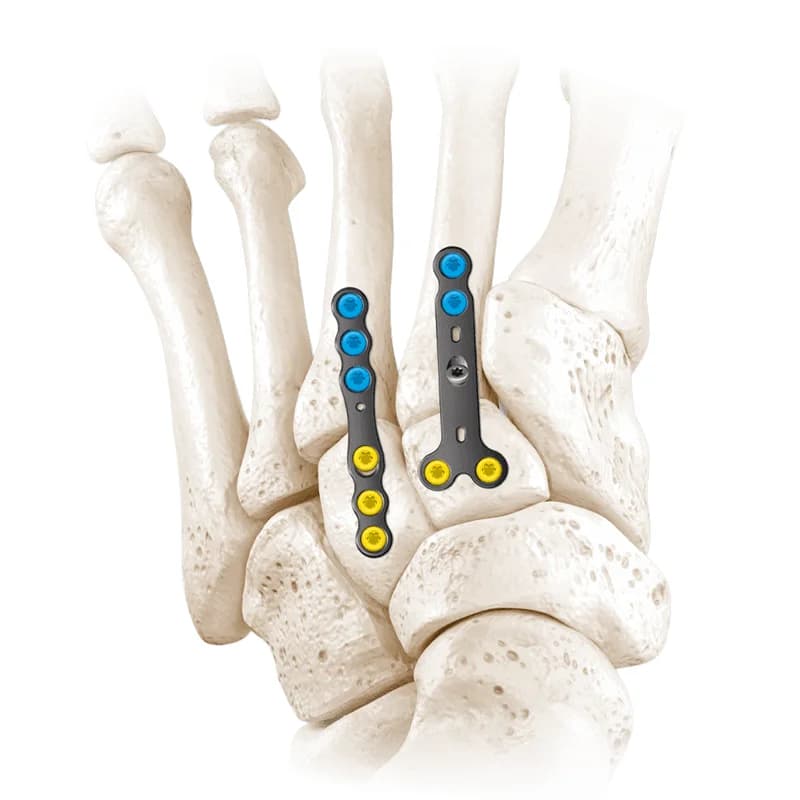

- Y plate XP for midfoot fusions.
- Universal plates (2 to 6 holes) with an oblong compression slot, and H plates (small, medium, large) with a large central hole for radiographic visibility.
- 3.0 and 3.5 mm locking and non-locking screws in every plate hole.
- Low-profile, anatomic design in type II anodised titanium alloy, with a tapered edge designed to limit soft-tissue irritation.
- Implants supplied sterile, with a single-use sterile instrument kit.
Indications
Stabilisation and fixation of fractures, revision procedures, joint fusion, osteotomies and reconstruction of the small bones of the hand, wrist, foot and ankle, in adult and paediatric patients.
The XP plates are designed for first metatarsophalangeal (MTP) fusion, first metatarsocuneiform (Lapidus) fusion and midfoot arthrodesis.
Contraindications are listed in the surgical technique and the instructions for use.
How it works
The plate is positioned over the joint, using the laser mark to find the joint line on the MTP plate, and held with olive wires. The distal screws go in first.

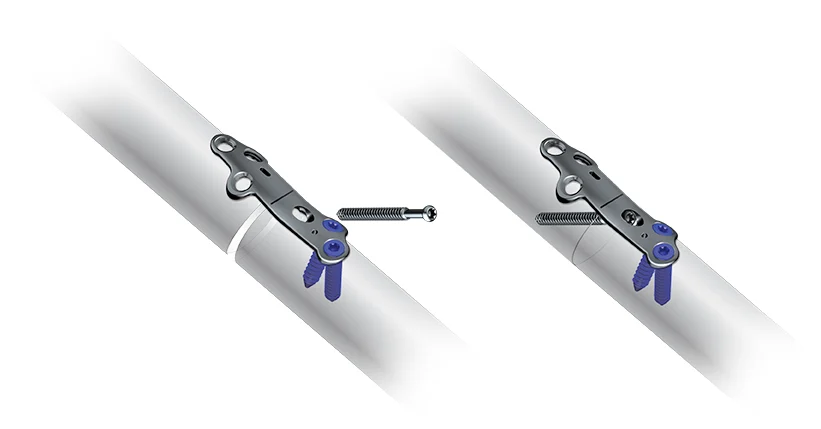

The transverse drill guide seats in the transverse hole, with its handle at 90° to the plate, so the 3.0 mm lag screw crosses the joint at about 40° to the plate. Tightening the lag screw compresses the fusion site; the remaining proximal screws are then inserted.
Instrument set
- Driver handle and T8 driver.
- Colour-coded locking and non-locking drill guides.
- Transverse drill guide.
- Cup and cone reamers (18, 21 and 23 mm) for MTP joint preparation.
- Plate benders and depth gauge.
- Trial plates for each plate shape.
- Single-use sterile kit: drills, olive wires and guide pins.
Sizes and ordering
Implants are supplied sterile. All plate holes take 3.0 or 3.5 mm locking or non-locking screws; the transverse hole takes only the 3.0 mm transverse lag screw. Codes are from CONMED's CE-market catalogue (2025).
Plates19 items
| Ref. | Description |
|---|---|
| P40 ST135 | MTP plate XP, 6-hole, right |
| P40 ST235 | MTP plate XP, 6-hole, left |
| P40 ST137 | MTP revision plate, right |
| P40 ST237 | MTP revision plate, left |
| P40 ST145 | Lapidus plate XP, standard, right |
| P40 ST245 | Lapidus plate XP, standard, left |
| P40 ST155 | Lapidus plate XP, +1 mm, right |
| P40 ST255 | Lapidus plate XP, +1 mm, left |
| P40 ST165 | Lapidus plate XP, +2 mm, right |
| P40 ST265 | Lapidus plate XP, +2 mm, left |
| P40 ST055 | Y plate XP, 5-hole |
| P40 ST012 | Universal plate, 2-hole |
| P40 ST013 | Universal plate, 3-hole |
| P40 ST014 | Universal plate, 4-hole |
| P40 ST015 | Universal plate, 5-hole |
| P40 ST016 | Universal plate, 6-hole |
| P40 ST021 | H plate, small |
| P40 ST022 | H plate, medium |
| P40 ST023 | H plate, large |
Transverse lag screw, Ø 3.0 mm12 items
| Ref. | Length |
|---|---|
| V30 ST418 | 18 mm |
| V30 ST420 | 20 mm |
| V30 ST422 | 22 mm |
| V30 ST424 | 24 mm |
| V30 ST426 | 26 mm |
| V30 ST428 | 28 mm |
| V30 ST430 | 30 mm |
| V30 ST432 | 32 mm |
| V30 ST434 | 34 mm |
| V30 ST436 | 36 mm |
| V30 ST438 | 38 mm |
| V30 ST440 | 40 mm |
Plate screws, Ø 3.0 mm24 items
| Ref. | Type | Length |
|---|---|---|
| V30 ST208 | Non-locking | 8 mm |
| V30 ST210 | Non-locking | 10 mm |
| V30 ST212 | Non-locking | 12 mm |
| V30 ST214 | Non-locking | 14 mm |
| V30 ST216 | Non-locking | 16 mm |
| V30 ST218 | Non-locking | 18 mm |
| V30 ST220 | Non-locking | 20 mm |
| V30 ST222 | Non-locking | 22 mm |
| V30 ST224 | Non-locking | 24 mm |
| V30 ST226 | Non-locking | 26 mm |
| V30 ST228 | Non-locking | 28 mm |
| V30 ST230 | Non-locking | 30 mm |
| V30 ST308 | Locking | 8 mm |
| V30 ST310 | Locking | 10 mm |
| V30 ST312 | Locking | 12 mm |
| V30 ST314 | Locking | 14 mm |
| V30 ST316 | Locking | 16 mm |
| V30 ST318 | Locking | 18 mm |
| V30 ST320 | Locking | 20 mm |
| V30 ST322 | Locking | 22 mm |
| V30 ST324 | Locking | 24 mm |
| V30 ST326 | Locking | 26 mm |
| V30 ST328 | Locking | 28 mm |
| V30 ST330 | Locking | 30 mm |
Plate screws, Ø 3.5 mm34 items
| Ref. | Type | Length |
|---|---|---|
| V35 ST208 | Non-locking | 8 mm |
| V35 ST210 | Non-locking | 10 mm |
| V35 ST212 | Non-locking | 12 mm |
| V35 ST214 | Non-locking | 14 mm |
| V35 ST216 | Non-locking | 16 mm |
| V35 ST218 | Non-locking | 18 mm |
| V35 ST220 | Non-locking | 20 mm |
| V35 ST222 | Non-locking | 22 mm |
| V35 ST224 | Non-locking | 24 mm |
| V35 ST226 | Non-locking | 26 mm |
| V35 ST228 | Non-locking | 28 mm |
| V35 ST230 | Non-locking | 30 mm |
| V35 ST232 | Non-locking | 32 mm |
| V35 ST234 | Non-locking | 34 mm |
| V35 ST236 | Non-locking | 36 mm |
| V35 ST238 | Non-locking | 38 mm |
| V35 ST240 | Non-locking | 40 mm |
| V35 ST308 | Locking | 8 mm |
| V35 ST310 | Locking | 10 mm |
| V35 ST312 | Locking | 12 mm |
| V35 ST314 | Locking | 14 mm |
| V35 ST316 | Locking | 16 mm |
| V35 ST318 | Locking | 18 mm |
| V35 ST320 | Locking | 20 mm |
| V35 ST322 | Locking | 22 mm |
| V35 ST324 | Locking | 24 mm |
| V35 ST326 | Locking | 26 mm |
| V35 ST328 | Locking | 28 mm |
| V35 ST330 | Locking | 30 mm |
| V35 ST332 | Locking | 32 mm |
| V35 ST334 | Locking | 34 mm |
| V35 ST336 | Locking | 36 mm |
| V35 ST338 | Locking | 38 mm |
| V35 ST340 | Locking | 40 mm |
Instruments1 item
| Ref. | Description |
|---|---|
| P04 S0001 | CoLink single-use sterile instrument kit for 3.0 and 3.5 mm screws: drills, olive wires and guide pins |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the ConMed website or the instructions for use before ordering.
Product information
Which screws fit the plates?
Every plate hole takes 3.0 or 3.5 mm screws, locking or non-locking. The transverse hole takes only the 3.0 mm transverse lag screw (18 to 40 mm).
What are the plates made of?
Type II anodised titanium alloy.
How is the transverse screw length measured?
With the laser markings on the reamer and the drill guide, or with the depth gauge, subtracting 2 mm from the reading for the gap between the plate and the bone.
