ClickIt ER is an emergency external fixation system for the temporary stabilisation of open fractures, unstable fractures and fractures associated with soft-tissue injury, for damage control orthopaedics. One universal clamp connects rod to rod, rod to screw and rod to wire with a snap-and-click coupling, and the Ø 12 mm carbon fibre rods are light and radiolucent.
Features
- One universal clamp for rod, screw (Ø 4 to 6 mm) and wire (Ø 1.8 to 2.5 mm) connections.
- Snap-and-click coupling and provisional tightening by hand, then final locking with the wrench.
- Ø 12 mm radiolucent carbon fibre rods, 100 to 600 mm.
- Only one instrument needed to apply the frame.
- Sterile and ready to use, in eight frame kits or as single components.
- MR Conditional up to 3 tesla.
- Converts to a hybrid frame; compatible with the ClickIt CF circular fixator.
Indications
Temporary stabilisation of:
- open fractures;
- unstable fractures;
- fractures associated with soft-tissue injury.
Indications, contraindications, warnings and precautions are listed in the instructions for use (IFU).
Components

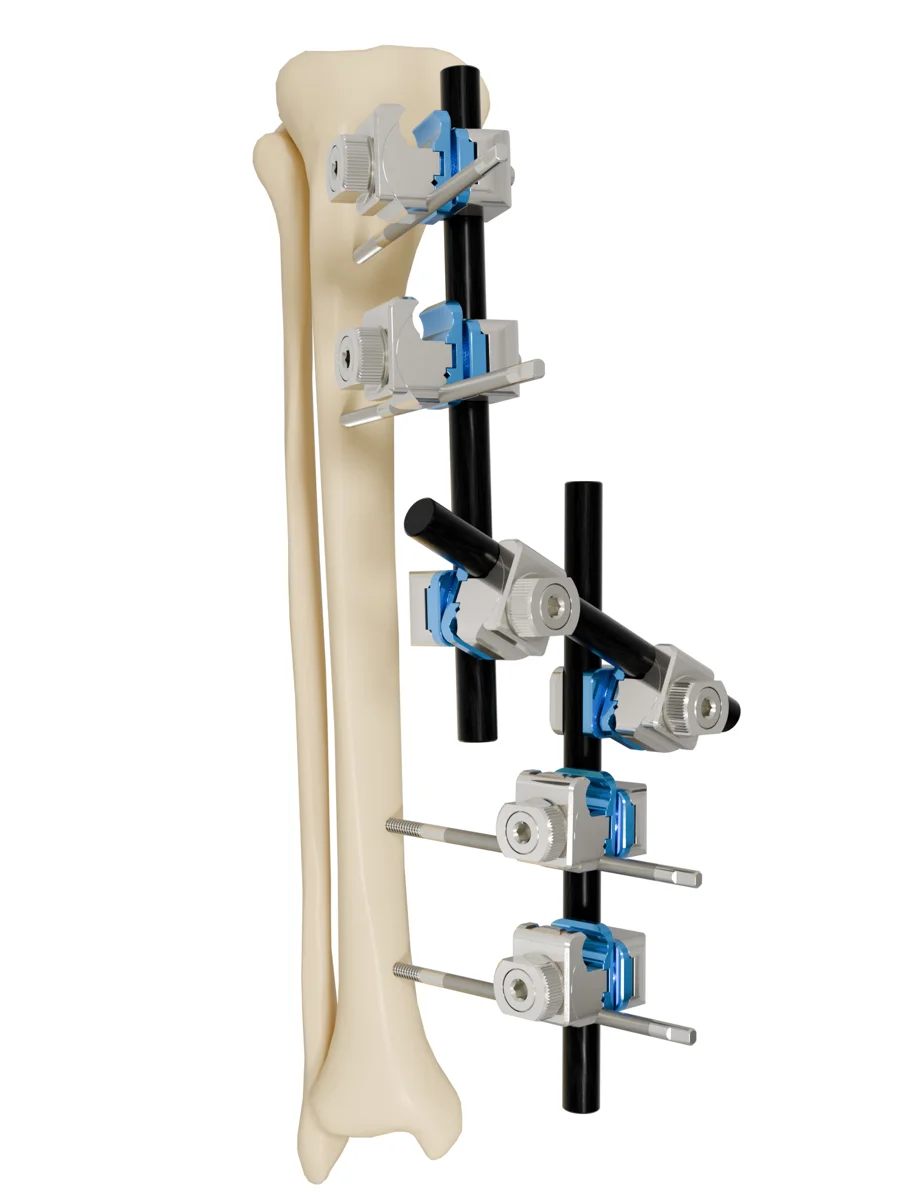

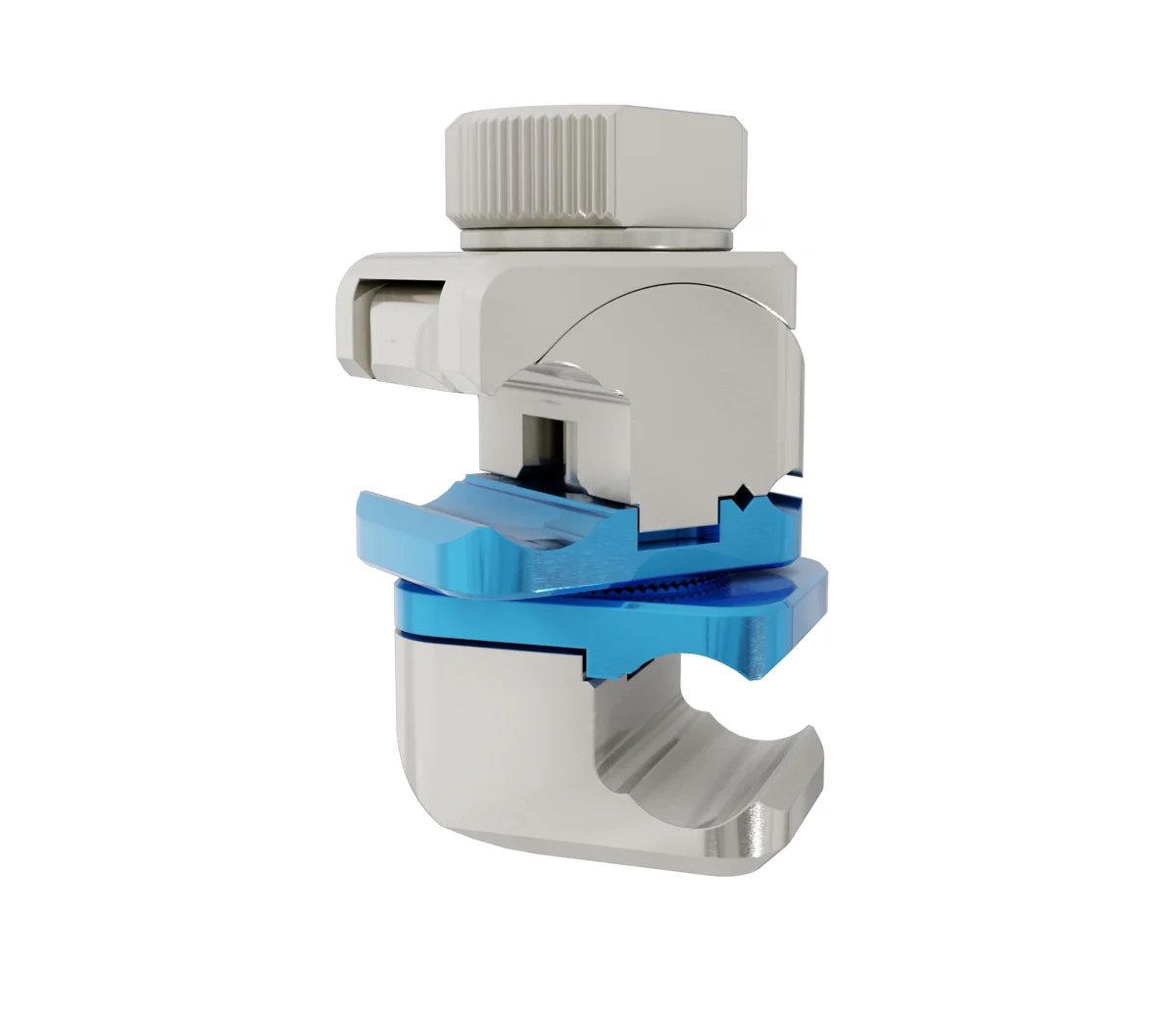

- Universal clamp: one clamp for rod-to-rod (Ø 12 mm), rod-to-screw (screws Ø 4, 5 and 6 mm) and rod-to-wire (wires Ø 1.8 to 2.5 mm) connections, with a snap-and-click coupling and provisional tightening by hand before final locking with the wrench.
- Rods: Ø 12 mm, radiolucent carbon fibre, 100 to 600 mm.
- Multi-screw (T) clamp: places two or three screws; a large multi-screw clamp, with or without adjustable lateral supports, is also available.
- "U" rods: for the tibial pilon and tibial plateau.
- Hybrid parts: connecting post, 5/8 arches and rings, for conversion to a hybrid frame; compatible with the ClickIt CF circular fixator.
- Screws and wires: in several diameters, materials and thread lengths.
Ready-to-use kits

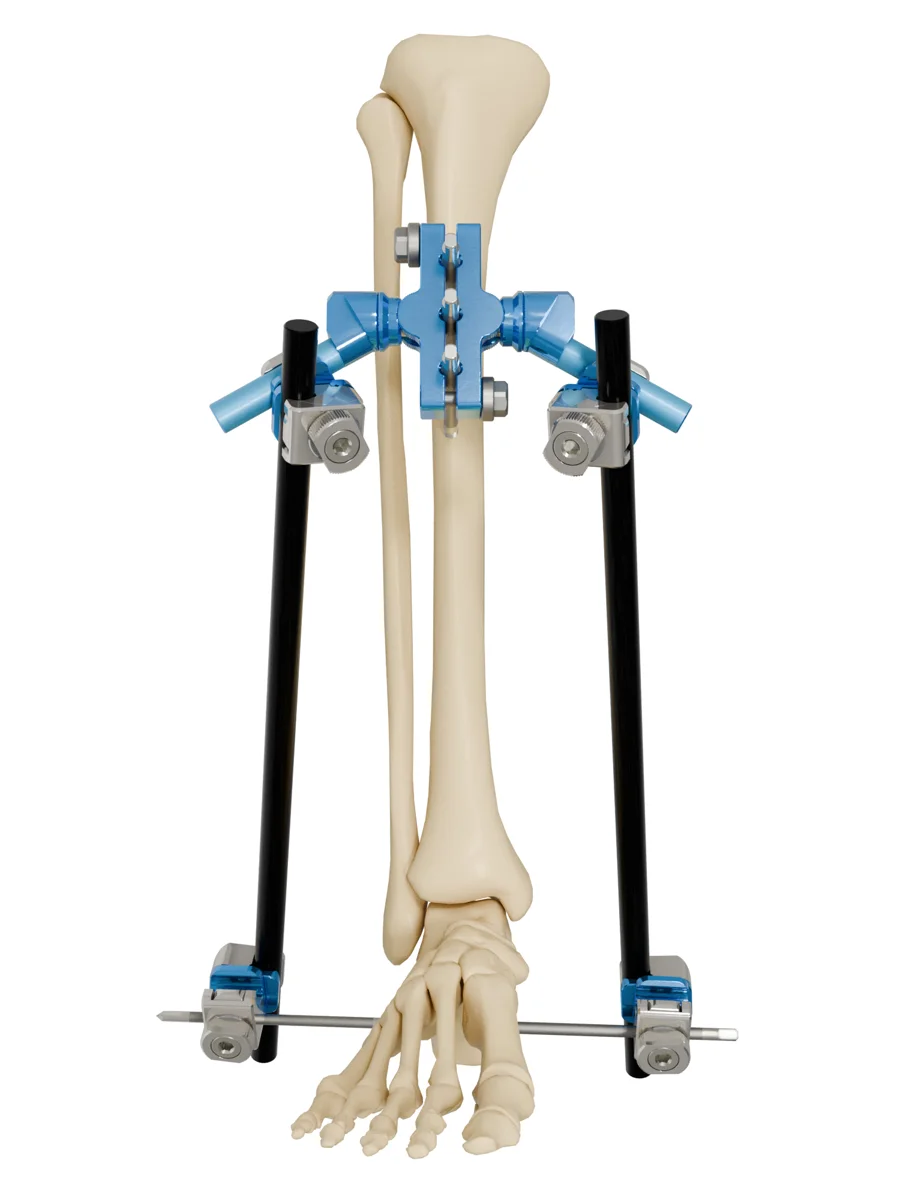

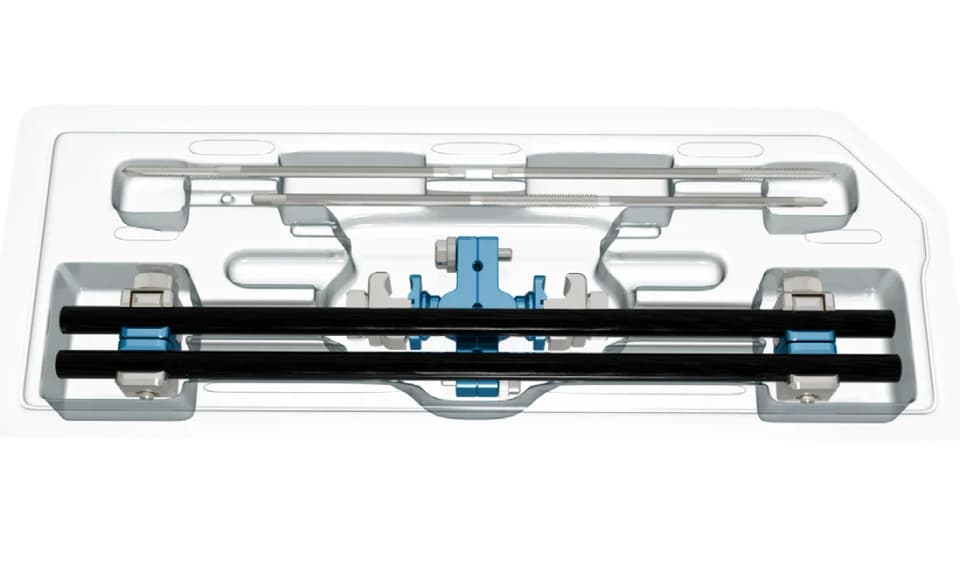

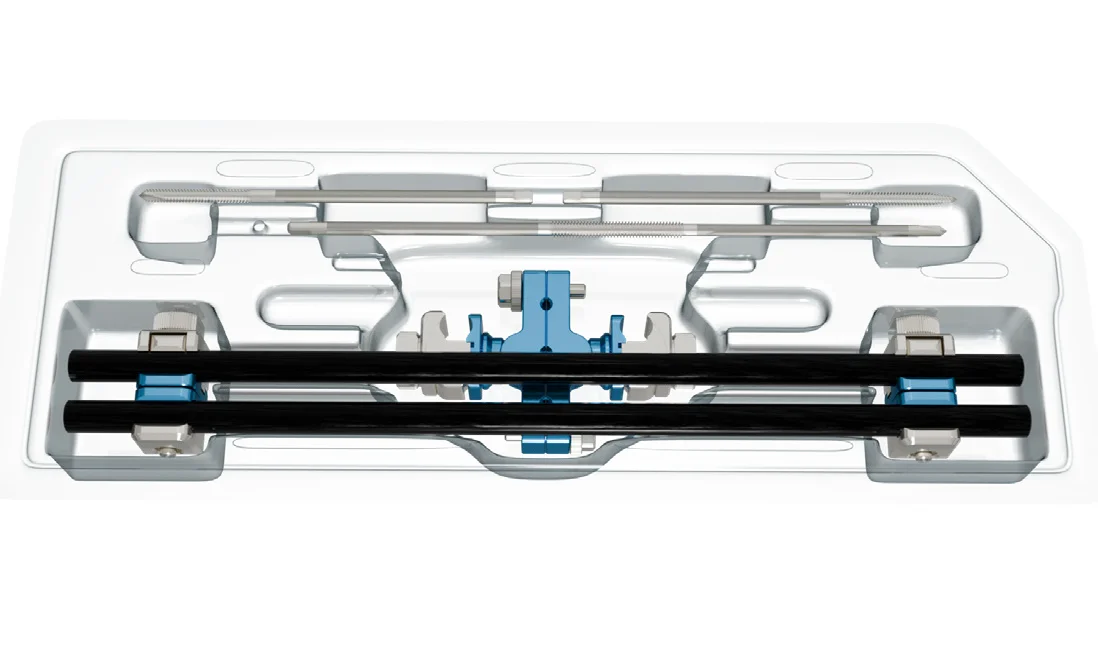

Eight sterile kits cover the common damage control frames: ankle spanning, ankle bridging plus, ankle bridging delta plus, tibia, knee bridging, femur, humerus and elbow trauma plus. Each kit holds the clamps, rods and screws for that frame (see Sizes and ordering).
Instruments and sterilisation
Only one instrument is needed to apply the frame. The kits and components are supplied sterile, with a single-use instrument set; a reusable instrument tray is also available. Reusable instruments: saturated-steam autoclave at 134 °C for 5 minutes.
Sizes and ordering
Screw and wire ranges are in Mikai's bone screws and wires brochure. A non-sterile ClickIt ER set (clamps and rods in a tray) is also available.
Sterile kits8 items
| Ref. | Kit | Contents |
|---|---|---|
| 5006600ST | ER ankle spanning kit | Multi-screw clamp ×1, large universal clamp Ø 12 mm ×2, rod Ø 12 × 350 mm ×2, transfixation screw Ø 4.5–5 × 250 mm (thread 50 mm) ×1, self-drilling cortical screw Ø 6 × 150 mm (thread 40 mm) ×2 |
| 5006600STB | ER ankle bridging plus kit | Multi-screw clamp ×1, large universal clamp Ø 12 mm ×4, rod Ø 12 × 200 mm ×1, rod Ø 12 × 350 mm ×2, transfixation screw Ø 4.5–5 × 250 mm ×1, self-drilling cortical screw Ø 4 × 150 mm ×1, Ø 5 × 150 mm ×2 |
| 5006610ST02 | ER ankle bridging delta plus kit | Universal clamp ×8, rod Ø 12 × 200 mm ×1, × 250 mm ×1, × 300 mm ×2, transfixation screw Ø 4.5–5 × 250 mm ×1, self-drilling cortical screw Ø 6 × 150 mm ×2, Ø 4 × 150 mm ×1 |
| 5006620ST01 | ER tibia kit | Universal clamp ×6, rod Ø 12 × 150 mm ×3, self-drilling cortical screw Ø 5 × 150 mm ×4 |
| 5006630ST01 | ER knee bridging kit | Universal clamp ×6, rod Ø 12 × 250 mm ×1, × 350 mm ×2, self-drilling cortical screw Ø 5 × 150 mm ×2, Ø 6 × 250 mm ×2 |
| 5006640ST01 | ER femur kit | Universal clamp ×6, rod Ø 12 × 150 mm ×1, × 200 mm ×2, self-drilling cortical screw Ø 6 × 250 mm ×4 |
| 5006660ST01 | ER humerus kit | Universal clamp ×6, rod Ø 12 × 150 mm ×2, × 200 mm ×1, self-drilling cortical screw Ø 5 × 150 mm ×4 |
| 5006650STA | ER elbow trauma plus kit | Universal clamp ×7, rod Ø 12 × 250 mm ×2, × 300 mm ×1, self-drilling cortical screw Ø 4 × 150 mm ×2, Ø 5 × 150 mm ×2 |
Components and accessories (sterile)28 items
| Ref. | Description |
|---|---|
| 5006508ST | Large universal clamp ER Ø 12 mm |
| 5000614ST | Small universal clamp Ø 6 mm |
| 5006504ST | Multi-screw clamp ER |
| 5006504CST | Large multi-screw clamp with supports ER |
| 5006504LST | Large multi-screw clamp ER |
| 5006506ST | Hybrid connecting post ER |
| 5006510ST | Rod Ø 12 mm, L 100 mm |
| 5006512ST | Rod Ø 12 mm, L 150 mm |
| 5006514ST | Rod Ø 12 mm, L 200 mm |
| 5006516ST | Rod Ø 12 mm, L 250 mm |
| 5006518ST | Rod Ø 12 mm, L 300 mm |
| 5006520ST | Rod Ø 12 mm, L 350 mm |
| 5006522ST | Rod Ø 12 mm, L 400 mm |
| 5006526ST | Rod Ø 12 mm, L 500 mm |
| 5006528ST | Rod Ø 12 mm, L 600 mm |
| 5.2201A.001ST | ClickIt ER "U" rod Ø 150 mm |
| 5.2201A.002ST | ClickIt ER "U" rod Ø 180 mm |
| 5.2201A.003ST | ClickIt ER "U" rod Ø 210 mm |
| 5006102ST | 5/8 ring Ø 120 mm |
| 5006104ST | 5/8 ring Ø 140 mm |
| 5006106ST | 5/8 ring Ø 160 mm |
| 5006108ST | 5/8 ring Ø 180 mm |
| 5006110ST | 5/8 ring Ø 200 mm |
| 5006112ST | 5/8 ring Ø 220 mm |
| 5000592ST | Transfixation screw Ø 4.5–5 mm, L 250 mm, thread 50 mm |
| VA4.150.40 | Self-drilling cortical screw Ø 4 mm, L 150 mm, thread 40 mm |
| VA5.150.40 | Self-drilling cortical screw Ø 5 mm, L 150 mm, thread 40 mm |
| VA6.250.40 | Self-drilling cortical screw Ø 6 mm, L 250 mm, thread 40 mm |
Instruments3 items
| Ref. | Description |
|---|---|
| 5006010ST01 | ClickIt ER single-use instrument set (sterile): universal T-handle for screws, guide Ø 6 × 60 mm, hex L-wrenches 3 mm and 5 mm |
| 5006012ST01 | ClickIt ER single-use instrument set (sterile): universal T-handle for screws, guide Ø 6 × 100 mm, hex L-wrenches 3 mm and 5 mm |

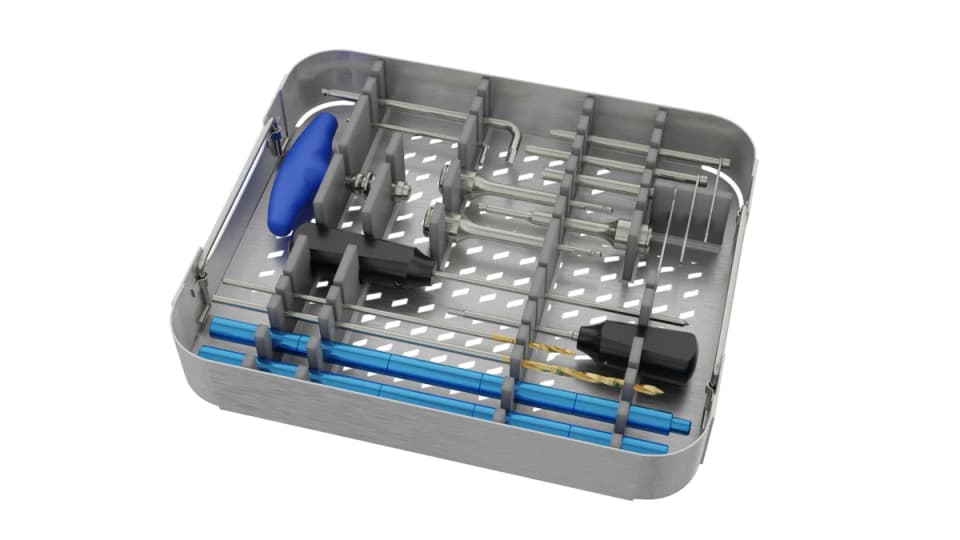

| 5006560ER | ClickIt ER sterilisation tray (complete instrument tray: 3 mm hex screwdriver, T-handle with AO attachment, hexagonal rod Ø 5 mm AO, 3 mm and 5 mm L-shaped Allen keys, twist drills Ø 3.5 and 4.5 mm, drill guide Ø 3.5 × 110 mm, adapters for 4, 5 and 6 mm screws, ER rod template) |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the Mikai website or the instructions for use before ordering.
