Overview

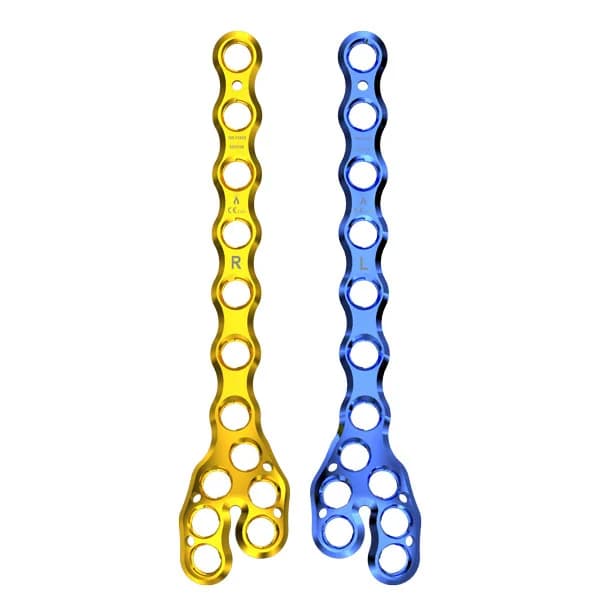

The Omni Stable AF Ankle Fracture System comprises low-profile, anatomically contoured plates for fixation of ankle fractures, covering the lateral and posterior fibula and the posterior, anterior and medial tibia, with hook and straight plates. Plates are 1.3 to 1.5 mm thick, with chamfered lead-in edges designed to limit soft-tissue irritation, and distal screw hole clusters offer multiple screw placement options.
The plates accept 2.8 mm and 3.5 mm locking and non-locking variable-angle screws (30° cone of angulation), 4.0 mm syndesmosis screws and a stability post. The post locks into a plate hole like a locking screw and acts as a metal cortex for a 3.5 mm cannulated compression screw, placed through it with a targeting guide, giving stability in the plane orthogonal to the plate screws; the hole in the post rotates through 360° for flexible screw placement. 4.0 mm cannulated lag screws are also included.
Features

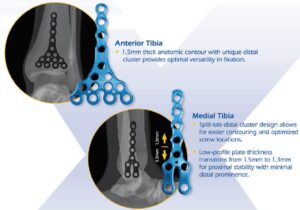

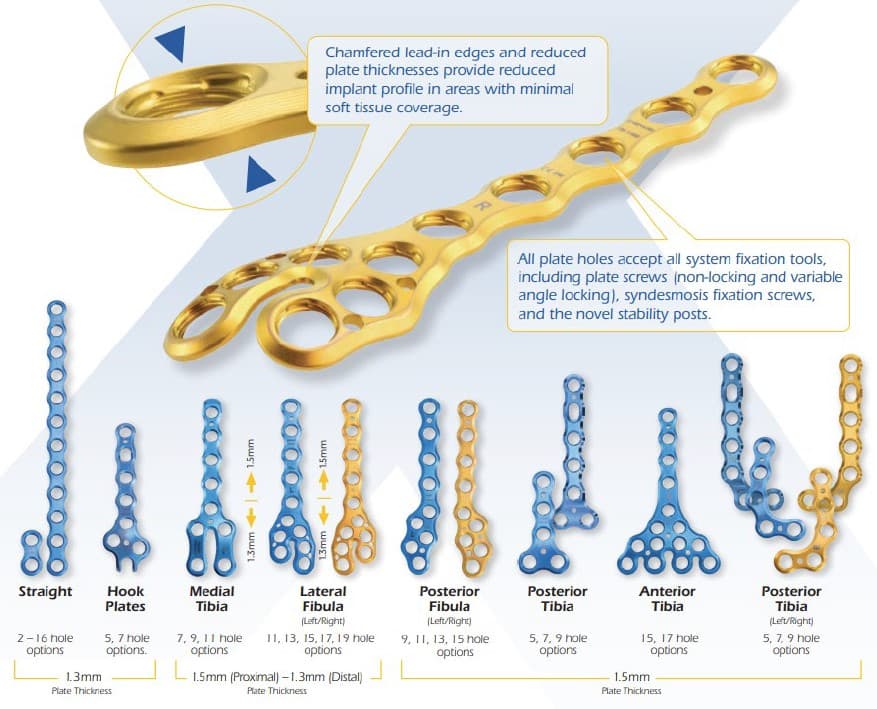

- Anatomically contoured plates for the tibia and fibula
- Low profile (1.3 to 1.5 mm) with chamfered lead-in edges
- Distal screw hole clusters offering multiple screw placement options

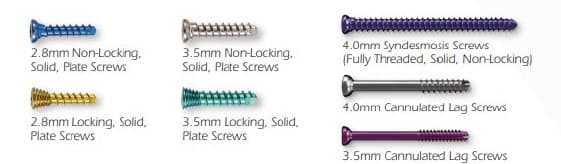

- 2.8 mm and 3.5 mm locking and non-locking variable-angle screws (30° cone)
- 4.0 mm fully threaded syndesmosis screws
- Stability post (12 or 16 mm) with a targeted 3.5 mm cannulated compression screw
Indications
Internal fixation of fractures of the distal tibia and fibula (ankle fractures).
The Omni foot and ankle plating system is intended for use in internal fixation of arthrodeses, osteotomies, fractures and non-unions of the small bones of the foot and ankle, including fore-, mid- and hindfoot and ankle applications.
Indications, contraindications, warnings and precautions are listed in the instructions for use (IFU).
Sizes and ordering
Codes are from the Omni Stable AF surgical technique (LBL-155-99102-EN Rev E, 12/2023). Plate screws are variable-angle screws with a 30° cone of angulation in the plate; instrument codes are listed in the surgical technique. For availability, kit contents or a quote, use Enquire above or call us.
Plates42 items
| Ref. | Description | Width (mm) | Length (mm) | Thickness (mm) |
|---|---|---|---|---|

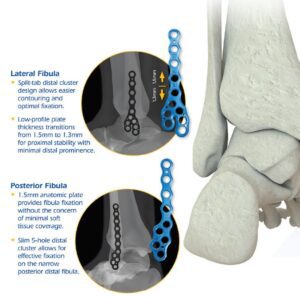

| 155-11501 | Lateral Fibula Plate, 11 Holes (5 Proximal), Left | 16.5 | 68.8 | 1.30 - 1.50 |
| 155-11502 | Lateral Fibula Plate, 11 Holes (5 Proximal), Right | 16.5 | 68.8 | 1.30 - 1.50 |
| 155-11701 | Lateral Fibula Plate, 13 Holes (7 Proximal), Left | 16.5 | 87.5 | 1.30 - 1.50 |
| 155-11702 | Lateral Fibula Plate, 13 Holes (7 Proximal), Right | 16.5 | 87.5 | 1.30 - 1.50 |
| 155-11901 | Lateral Fibula Plate, 15 Holes (9 Proximal), Left | 16.5 | 106.9 | 1.30 - 1.50 |
| 155-11902 | Lateral Fibula Plate, 15 Holes (9 Proximal), Right | 16.5 | 106.9 | 1.30 - 1.50 |
| 155-11111 | Lateral Fibula Plate, 17 Holes (11 Proximal), Left | 16.5 | 125.7 | 1.30 - 1.50 |
| 155-11112 | Lateral Fibula Plate, 17 Holes (11 Proximal), Right | 16.5 | 125.7 | 1.30 - 1.50 |
| 155-11131 | Lateral Fibula Plate, 19 Holes (13 Proximal), Left | 16.5 | 144.7 | 1.30 - 1.50 |
| 155-11132 | Lateral Fibula Plate, 19 Holes (13 Proximal), Right | 16.5 | 144.7 | 1.30 - 1.50 |
| 155-12501 | Posterior Fibula Plate, 9 Holes (5 Proximal), Left | 13.0 | 64.6 | 1.50 |
| 155-12502 | Posterior Fibula Plate, 9 Holes (5 Proximal), Right | 13.0 | 64.6 | 1.50 |
| 155-12701 | Posterior Fibula Plate, 11 Holes (7 Proximal), Left | 13.0 | 83.3 | 1.50 |
| 155-12702 | Posterior Fibula Plate, 11 Holes (7 Proximal), Right | 13.0 | 83.3 | 1.50 |
| 155-12901 | Posterior Fibula Plate, 13 Holes (9 Proximal), Left | 13.0 | 101.8 | 1.50 |
| 155-12902 | Posterior Fibula Plate, 13 Holes (9 Proximal), Right | 13.0 | 101.8 | 1.50 |
| 155-12111 | Posterior Fibula Plate, 15 Holes (11 Proximal), Left | 13.0 | 120.3 | 1.50 |
| 155-12112 | Posterior Fibula Plate, 15 Holes (11 Proximal), Right | 13.0 | 120.3 | 1.50 |
| 155-13300 | Hook Plate, 5 Holes (3 Proximal) | 16.8 | 40.1 | 1.30 |
| 155-13500 | Hook Plate, 7 Holes (5 Proximal) | 16.8 | 58.9 | 1.30 |
| 155-14200 | Straight Plate, 2 Holes | 8.0 | 17.5 | 1.30 |
| 155-14400 | Straight Plate, 4 Holes | 8.0 | 36.3 | 1.30 |
| 155-14600 | Straight Plate, 6 Holes | 8.0 | 55.1 | 1.30 |
| 155-14800 | Straight Plate, 8 Holes | 8.0 | 73.9 | 1.30 |
| 155-14100 | Straight Plate, 10 Holes | 8.0 | 92.7 | 1.30 |
| 155-14120 | Straight Plate, 12 Holes | 8.0 | 111.5 | 1.30 |
| 155-14140 | Straight Plate, 14 Holes | 8.0 | 130.5 | 1.30 |
| 155-14160 | Straight Plate, 16 Holes | 8.0 | 149.3 | 1.30 |
| 155-21300 | Posterior Tibia Plate, Y-Shape, 5 Holes (3 Proximal) | 17.3 | 36.1 | 1.50 |
| 155-21500 | Posterior Tibia Plate, Y-Shape, 7 Holes (5 Proximal) | 17.3 | 55.1 | 1.50 |
| 155-21700 | Posterior Tibia Plate, Y-Shape, 9 Holes (7 Proximal) | 17.3 | 92.8 | 1.50 |

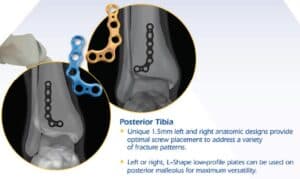

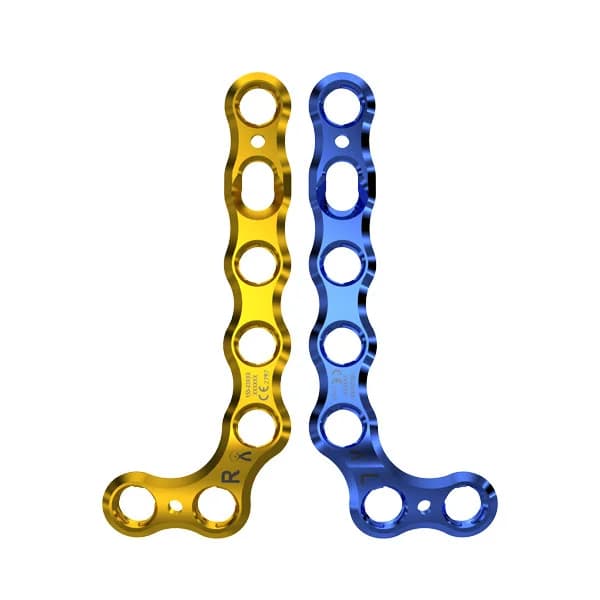

| 155-23301 | Posterior Tibia Plate, L-Shape, 5 Holes (3 Proximal), Left | 22.0 | 36.1 | 1.50 |
| 155-23302 | Posterior Tibia Plate, L-Shape, 5 Holes (3 Proximal), Right | 22.0 | 36.1 | 1.50 |
| 155-23501 | Posterior Tibia Plate, L-Shape, 7 Holes (5 Proximal), Left | 22.0 | 55.1 | 1.50 |
| 155-23502 | Posterior Tibia Plate, L-Shape, 7 Holes (5 Proximal), Right | 22.0 | 55.1 | 1.50 |
| 155-23701 | Posterior Tibia Plate, L-Shape, 9 Holes (7 Proximal), Left | 22.0 | 92.8 | 1.50 |
| 155-23702 | Posterior Tibia Plate, L-Shape, 9 Holes (7 Proximal), Right | 22.0 | 92.8 | 1.50 |

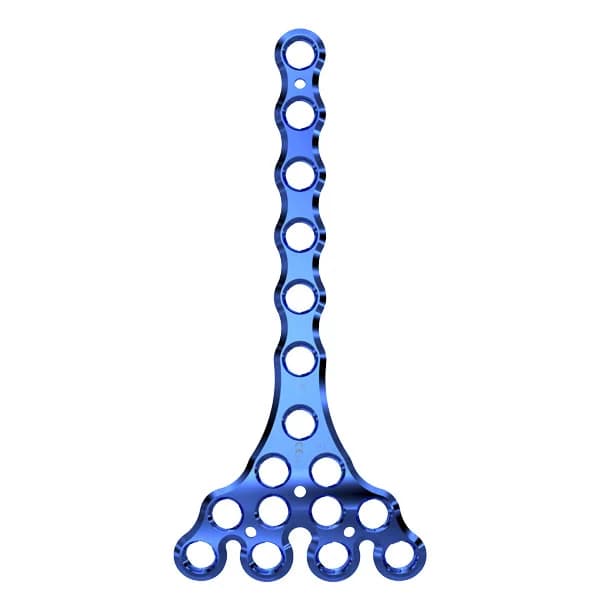

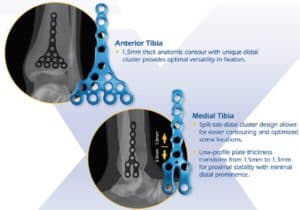

| 155-24500 | Anterior Tibia Plate, 15 Holes (5 Proximal) | 33.7 | 65.8 | 1.50 |
| 155-24700 | Anterior Tibia Plate, 17 Holes (7 Proximal) | 33.7 | 84.0 | 1.50 |
| 155-25300 | Medial Tibia Plate, 7 Holes (3 Proximal) | 18.0 | 49.1 | 1.30 - 1.50 |
| 155-25500 | Medial Tibia Plate, 9 Holes (5 Proximal) | 18.0 | 68.4 | 1.30 - 1.50 |
| 155-25700 | Medial Tibia Plate, 11 Holes (7 Proximal) | 18.0 | 87.6 | 1.30 - 1.50 |
Stability posts2 items
| Ref. | Description |
|---|---|
| 144-42112 | Post - 12mm |
| 144-42116 | Post - 16mm |
3.5 mm cannulated lag screws11 items
| Ref. | Description |
|---|---|
| 144-35220 | Cannulated Lag Screw - 3.5 x 20mm |
| 144-35225 | Cannulated Lag Screw - 3.5 x 25mm |
| 144-35230 | Cannulated Lag Screw - 3.5 x 30mm |
| 144-35235 | Cannulated Lag Screw - 3.5 x 35mm |
| 144-35240 | Cannulated Lag Screw - 3.5 x 40mm |
| 144-35245 | Cannulated Lag Screw - 3.5 x 45mm |
| 144-35250 | Cannulated Lag Screw - 3.5 x 50mm |
| 144-35255 | Cannulated Lag Screw - 3.5 x 55mm |
| 144-35260 | Cannulated Lag Screw - 3.5 x 60mm |
| 144-35265 | Cannulated Lag Screw - 3.5 x 65mm |
| 144-35270 | Cannulated Lag Screw - 3.5 x 70mm |
4.0 mm cannulated lag screws11 items
| Ref. | Description |
|---|---|
| 148-40120 | Cannulated Lag Screw - 4.0 x 20mm |
| 148-40125 | Cannulated Lag Screw - 4.0 x 25mm |
| 148-40130 | Cannulated Lag Screw - 4.0 x 30mm |
| 148-40135 | Cannulated Lag Screw - 4.0 x 35mm |
| 148-40140 | Cannulated Lag Screw - 4.0 x 40mm |
| 148-40145 | Cannulated Lag Screw - 4.0 x 45mm |
| 148-40150 | Cannulated Lag Screw - 4.0 x 50mm |
| 148-40155 | Cannulated Lag Screw - 4.0 x 55mm |
| 148-40160 | Cannulated Lag Screw - 4.0 x 60mm |
| 148-40165 | Cannulated Lag Screw - 4.0 x 65mm |
| 148-40170 | Cannulated Lag Screw - 4.0 x 70mm |
4.0 mm syndesmosis screws (fully threaded, solid, non-locking)11 items
| Ref. | Description |
|---|---|
| 155-40040 | Solid Non-Locking Screw, 4.0 x 40mm |
| 155-40042 | Solid Non-Locking Screw, 4.0 x 42mm |
| 155-40044 | Solid Non-Locking Screw, 4.0 x 44mm |
| 155-40046 | Solid Non-Locking Screw, 4.0 x 46mm |
| 155-40048 | Solid Non-Locking Screw, 4.0 x 48mm |
| 155-40050 | Solid Non-Locking Screw, 4.0 x 50mm |
| 155-40052 | Solid Non-Locking Screw, 4.0 x 52mm |
| 155-40054 | Solid Non-Locking Screw, 4.0 x 54mm |
| 155-40056 | Solid Non-Locking Screw, 4.0 x 56mm |
| 155-40058 | Solid Non-Locking Screw, 4.0 x 58mm |
| 155-40060 | Solid Non-Locking Screw, 4.0 x 60mm |
2.8 mm solid plate screws54 items
| Ref. | Description |
|---|---|
| 144-28008 | Solid Non-Locking Screw - 2.8 x 8mm |
| 144-28010 | Solid Non-Locking Screw - 2.8 x 10mm |
| 144-28012 | Solid Non-Locking Screw - 2.8 x 12mm |
| 144-28014 | Solid Non-Locking Screw - 2.8 x 14mm |
| 144-28016 | Solid Non-Locking Screw - 2.8 x 16mm |
| 144-28018 | Solid Non-Locking Screw - 2.8 x 18mm |
| 144-28020 | Solid Non-Locking Screw - 2.8 x 20mm |
| 144-28022 | Solid Non-Locking Screw - 2.8 x 22mm |
| 144-28024 | Solid Non-Locking Screw - 2.8 x 24mm |
| 144-28026 | Solid Non-Locking Screw - 2.8 x 26mm |
| 144-28028 | Solid Non-Locking Screw - 2.8 x 28mm |
| 144-28030 | Solid Non-Locking Screw - 2.8 x 30mm |
| 144-28032 | Solid Non-Locking Screw - 2.8 x 32mm |
| 144-28034 | Solid Non-Locking Screw - 2.8 x 34mm |
| 144-28036 | Solid Non-Locking Screw - 2.8 x 36mm |
| 144-28038 | Solid Non-Locking Screw - 2.8 x 38mm |
| 144-28040 | Solid Non-Locking Screw - 2.8 x 40mm |
| 144-28042 | Solid Non-Locking Screw - 2.8 x 42mm |
| 144-28044 | Solid Non-Locking Screw - 2.8 x 44mm |
| 144-28046 | Solid Non-Locking Screw - 2.8 x 46mm |
| 144-28048 | Solid Non-Locking Screw - 2.8 x 48mm |
| 144-28050 | Solid Non-Locking Screw - 2.8 x 50mm |
| 144-28052 | Solid Non-Locking Screw - 2.8 x 52mm |
| 144-28054 | Solid Non-Locking Screw - 2.8 x 54mm |
| 144-28056 | Solid Non-Locking Screw - 2.8 x 56mm |
| 144-28058 | Solid Non-Locking Screw - 2.8 x 58mm |
| 144-28060 | Solid Non-Locking Screw - 2.8 x 60mm |
| 144-28108 | Solid Locking Screw - 2.8 x 8mm |
| 144-28110 | Solid Locking Screw - 2.8 x 10mm |
| 144-28112 | Solid Locking Screw - 2.8 x 12mm |
| 144-28114 | Solid Locking Screw - 2.8 x 14mm |
| 144-28116 | Solid Locking Screw - 2.8 x 16mm |
| 144-28118 | Solid Locking Screw - 2.8 x 18mm |
| 144-28120 | Solid Locking Screw - 2.8 x 20mm |
| 144-28122 | Solid Locking Screw - 2.8 x 22mm |
| 144-28124 | Solid Locking Screw - 2.8 x 24mm |
| 144-28126 | Solid Locking Screw - 2.8 x 26mm |
| 144-28128 | Solid Locking Screw - 2.8 x 28mm |
| 144-28130 | Solid Locking Screw - 2.8 x 30mm |
| 144-28132 | Solid Locking Screw - 2.8 x 32mm |
| 144-28134 | Solid Locking Screw - 2.8 x 34mm |
| 144-28136 | Solid Locking Screw - 2.8 x 36mm |
| 144-28138 | Solid Locking Screw - 2.8 x 38mm |
| 144-28140 | Solid Locking Screw - 2.8 x 40mm |
| 144-28142 | Solid Locking Screw - 2.8 x 42mm |
| 144-28144 | Solid Locking Screw - 2.8 x 44mm |
| 144-28146 | Solid Locking Screw - 2.8 x 46mm |
| 144-28148 | Solid Locking Screw - 2.8 x 48mm |
| 144-28150 | Solid Locking Screw - 2.8 x 50mm |
| 144-28152 | Solid Locking Screw - 2.8 x 52mm |
| 144-28154 | Solid Locking Screw - 2.8 x 54mm |
| 144-28156 | Solid Locking Screw - 2.8 x 56mm |
| 144-28158 | Solid Locking Screw - 2.8 x 58mm |
| 144-28160 | Solid Locking Screw - 2.8 x 60mm |
3.5 mm solid plate screws58 items
| Ref. | Description |
|---|---|
| 144-35008 | Solid Non-Locking Screw - 3.5 x 8mm |
| 144-35010 | Solid Non-Locking Screw - 3.5 x 10mm |
| 144-35012 | Solid Non-Locking Screw - 3.5 x 12mm |
| 144-35014 | Solid Non-Locking Screw - 3.5 x 14mm |
| 144-35016 | Solid Non-Locking Screw - 3.5 x 16mm |
| 144-35018 | Solid Non-Locking Screw - 3.5 x 18mm |
| 144-35020 | Solid Non-Locking Screw - 3.5 x 20mm |
| 144-35022 | Solid Non-Locking Screw - 3.5 x 22mm |
| 144-35024 | Solid Non-Locking Screw - 3.5 x 24mm |
| 144-35026 | Solid Non-Locking Screw - 3.5 x 26mm |
| 144-35028 | Solid Non-Locking Screw - 3.5 x 28mm |
| 144-35030 | Solid Non-Locking Screw - 3.5 x 30mm |
| 144-35032 | Solid Non-Locking Screw - 3.5 x 32mm |
| 144-35034 | Solid Non-Locking Screw - 3.5 x 34mm |
| 144-35036 | Solid Non-Locking Screw - 3.5 x 36mm |
| 144-35038 | Solid Non-Locking Screw - 3.5 x 38mm |
| 144-35040 | Solid Non-Locking Screw - 3.5 x 40mm |
| 144-35042 | Solid Non-Locking Screw - 3.5 x 42mm |
| 144-35044 | Solid Non-Locking Screw - 3.5 x 44mm |
| 144-35046 | Solid Non-Locking Screw - 3.5 x 46mm |
| 144-35048 | Solid Non-Locking Screw - 3.5 x 48mm |
| 144-35050 | Solid Non-Locking Screw - 3.5 x 50mm |
| 144-35052 | Solid Non-Locking Screw - 3.5 x 52mm |
| 144-35054 | Solid Non-Locking Screw - 3.5 x 54mm |
| 144-35056 | Solid Non-Locking Screw - 3.5 x 56mm |
| 144-35058 | Solid Non-Locking Screw - 3.5 x 58mm |
| 144-35060 | Solid Non-Locking Screw - 3.5 x 60mm |
| 144-35065 | Solid Non-Locking Screw - 3.5 x 65mm |
| 144-35070 | Solid Non-Locking Screw - 3.5 x 70mm |
| 144-35108 | Solid Locking Screw - 3.5 x 8mm |
| 144-35110 | Solid Locking Screw - 3.5 x 10mm |
| 144-35112 | Solid Locking Screw - 3.5 x 12mm |
| 144-35114 | Solid Locking Screw - 3.5 x 14mm |
| 144-35116 | Solid Locking Screw - 3.5 x 16mm |
| 144-35118 | Solid Locking Screw - 3.5 x 18mm |
| 144-35120 | Solid Locking Screw - 3.5 x 20mm |
| 144-35122 | Solid Locking Screw - 3.5 x 22mm |
| 144-35124 | Solid Locking Screw - 3.5 x 24mm |
| 144-35126 | Solid Locking Screw - 3.5 x 26mm |
| 144-35128 | Solid Locking Screw - 3.5 x 28mm |
| 144-35130 | Solid Locking Screw - 3.5 x 30mm |
| 144-35132 | Solid Locking Screw - 3.5 x 32mm |
| 144-35134 | Solid Locking Screw - 3.5 x 34mm |
| 144-35136 | Solid Locking Screw - 3.5 x 36mm |
| 144-35138 | Solid Locking Screw - 3.5 x 38mm |
| 144-35140 | Solid Locking Screw - 3.5 x 40mm |
| 144-35142 | Solid Locking Screw - 3.5 x 42mm |
| 144-35144 | Solid Locking Screw - 3.5 x 44mm |
| 144-35146 | Solid Locking Screw - 3.5 x 46mm |
| 144-35148 | Solid Locking Screw - 3.5 x 48mm |
| 144-35150 | Solid Locking Screw - 3.5 x 50mm |
| 144-35152 | Solid Locking Screw - 3.5 x 52mm |
| 144-35154 | Solid Locking Screw - 3.5 x 54mm |
| 144-35156 | Solid Locking Screw - 3.5 x 56mm |
| 144-35158 | Solid Locking Screw - 3.5 x 58mm |
| 144-35160 | Solid Locking Screw - 3.5 x 60mm |
| 144-35165 | Solid Locking Screw - 3.5 x 65mm |
| 144-35170 | Solid Locking Screw - 3.5 x 70mm |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the Extremity Medical website or the instructions for use before ordering.
Surgical Technique & Brochures
Omni Stable AF surgical technique animation
Ankle fracture surgical animation
Used in
Related Products
Foot & ankle
CoLink® Bone Graft Harvester
Sterile, single-use, pre-assembled harvester that morselises cancellous bone graft, in 6 and 8 mm diameters, driven by a power reamer.
View product
Foot & ankle
C-NAIL – Intraarticular Calcaneal Fixation
Intramedullary calcaneal nail with up to seven interlocking screws for minimally invasive fixation of intra-articular calcaneal fractures.
View product
Foot & ankle
7.0ChLP Ankle Arthrodesis Plates
Titanium locking plates for tibiotalar and tibiotalocalcaneal fusion, in six types for anterior, anterolateral, lateral and posterior approaches.
View product
