Overview
The Omni Plating System is a universal foot plating system covering a range of foot and ankle indications, including MTP, Lapidus, Lisfranc and talonavicular arthrodesis. Plate screws are available in 2.8 mm and 3.5 mm, in non-locking and variable-angle locking versions with a 30° cone of angulation.

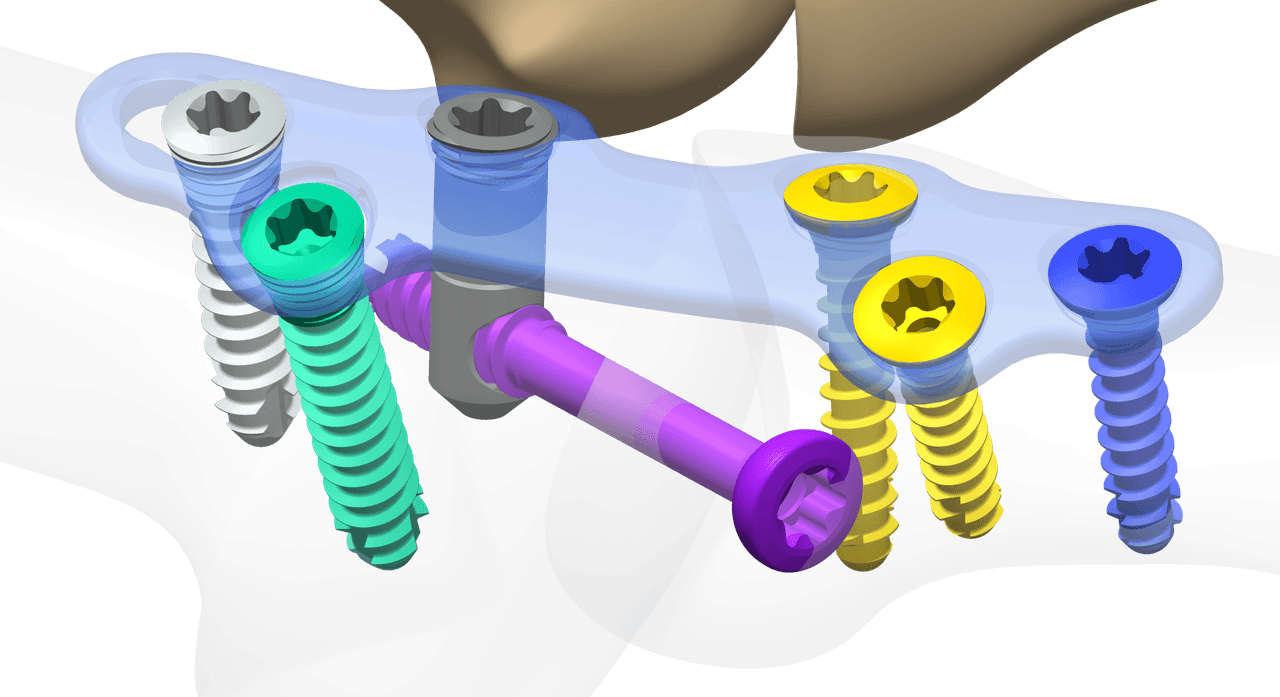

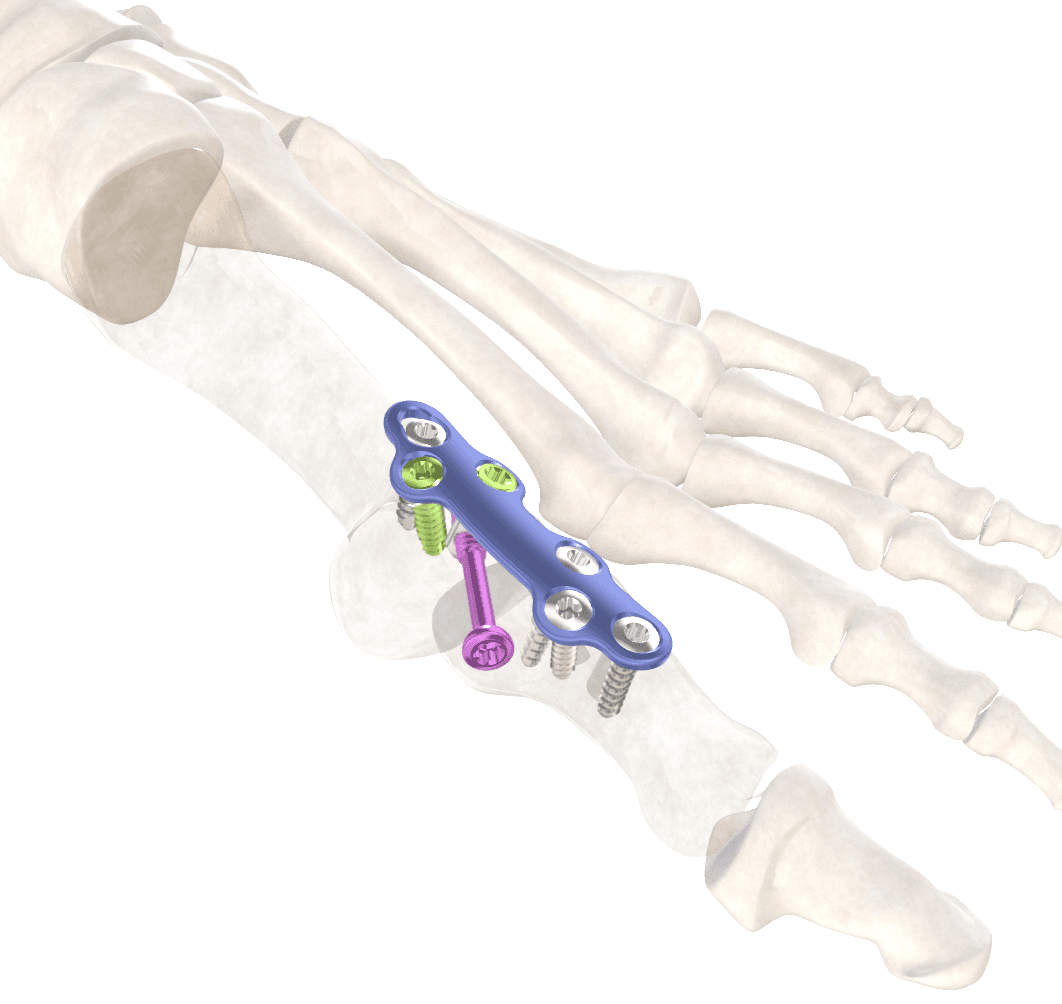

The system includes the PlantarFiX Post, a component that locks into any of the locking holes in the plates and acts as a metal cortex for a 3.5 mm cannulated compression screw. This places compression on the plantar side of the construct, independent of the patient’s bone quality. A targeting system positions the 3.5 mm screw through the post. Posts are 12 or 16 mm long.
Features
- 32 plate styles
- 2.8 mm and 3.5 mm plate screws
- Non-locking and variable-angle locking screw options (30° cone of angulation)
- PlantarFiX Post compatible with the locking holes of all plates in the system
- Targeting system for placement of the 3.5 mm compression screw through the post
- MTP cup and cone rasps and barrel reamer for joint preparation
Indications
The Omni Plating System is intended for use in internal fixation of arthrodeses, osteotomies, fractures and non-unions of the small bones of the foot and ankle, including fore-, mid- and hindfoot and ankle applications.
Typical uses include MTP, Lapidus, Lisfranc and talonavicular arthrodesis.
Indications, contraindications, warnings and precautions are listed in the instructions for use (IFU).
Sizes and ordering
Codes are from the Omni Plating System surgical technique (LBL-144-99202-EN Rev C, 12/2022); other instrument codes are listed there. For availability, kit contents or a quote, use Enquire above or call us.
Plates32 items
| Ref. | Description | Width (mm) | Length (mm) | Thickness (mm) |
|---|---|---|---|---|
| 144-20020 | Straight Plate, 2 Hole | 8.0 | 23.0 | 1.50 |
| 144-20040 | Straight Plate, 4 Hole | 8.0 | 37.0 | 1.50 |
| 144-20050 | Straight Plate, 5 Hole | 8.0 | 45.0 | 1.50 |
| 144-20060 | Straight Plate, 6 Hole | 8.0 | 53.0 | 1.50 |
| 144-20070 | Straight Plate, 7 Hole | 8.0 | 61.0 | 1.50 |
| 144-20080 | Straight Plate, 8 Hole | 8.0 | 69.0 | 1.50 |

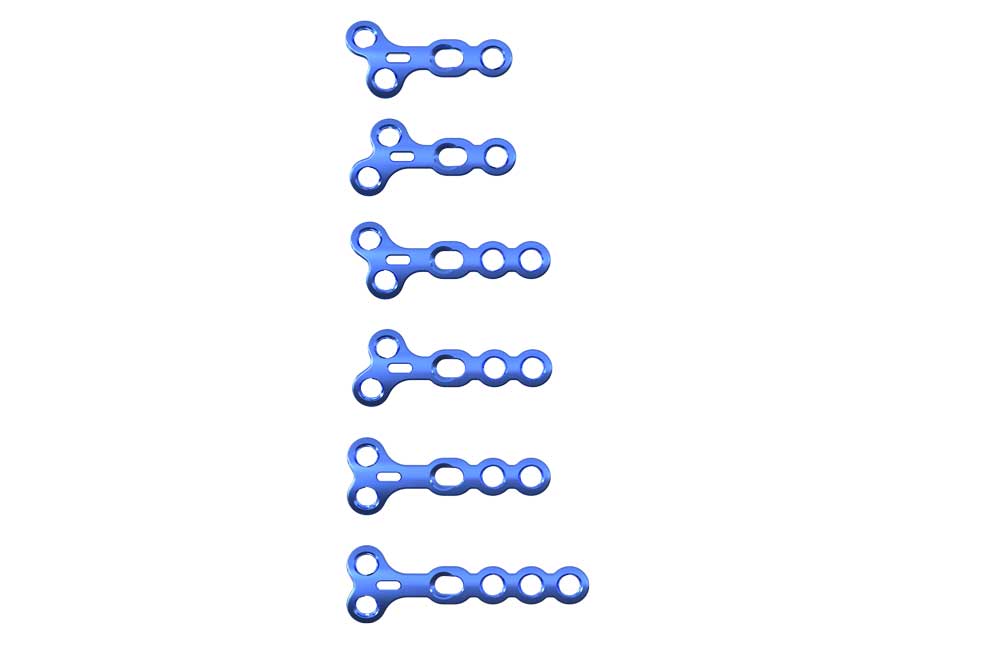

| 144-50050 | T-Plate, 5 Hole (Universal) | 16.2 | 42.6 | 1.50 |
| 144-50060 | T-Plate, 6 Hole (Universal) | 16.2 | 50.6 | 1.50 |
| 144-60041 | T-Plate, 4 Hole, Left | 16.7 | 34.9 | 1.50 |
| 144-60042 | T-Plate, 4 Hole, Right | 16.7 | 34.9 | 1.50 |
| 144-60051 | T-Plate, 5 Hole, Left | 16.7 | 41.9 | 1.50 |
| 144-60052 | T-Plate, 5 Hole, Right | 16.7 | 41.9 | 1.50 |

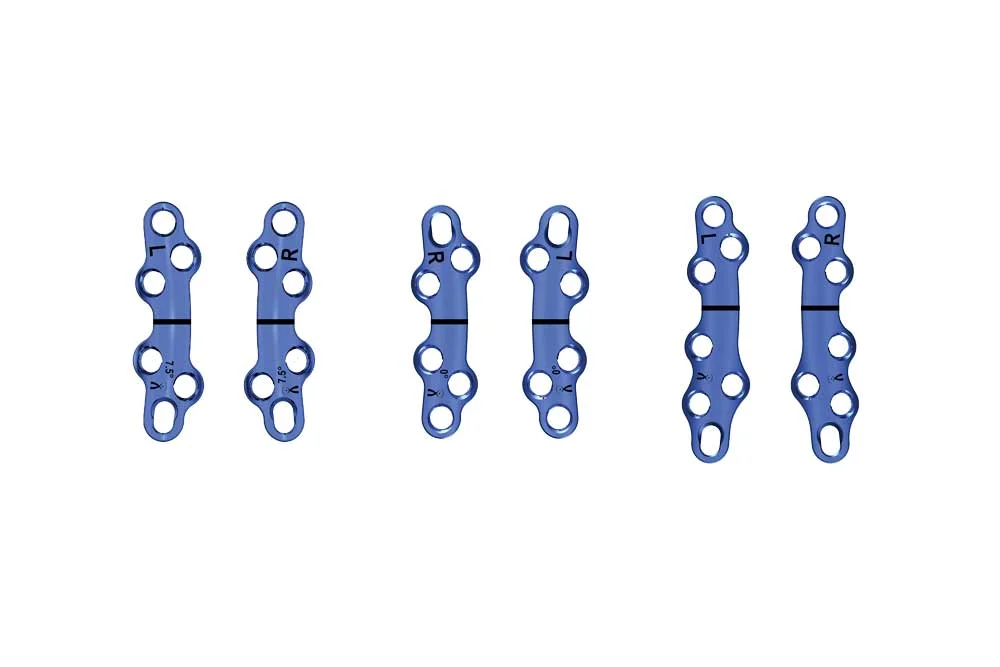

| 144-10211 | MTP Fusion Plate (Narrow), Left | 13.7 | 44.9 | 1.50 |
| 144-10212 | MTP Fusion Plate (Narrow), Right | 13.7 | 44.9 | 1.50 |
| 144-10241 | MTP Fusion Plate (Narrow), Long, Left | 13.7 | 53.6 | 1.50 |
| 144-10242 | MTP Fusion Plate (Narrow), Long, Right | 13.7 | 53.6 | 1.50 |
| 144-10251 | MTP Fusion Plate (Narrow), Dorsiflexed, Left | 13.7 | 45.1 | 1.50 |
| 144-10252 | MTP Fusion Plate (Narrow), Dorsiflexed, Right | 13.7 | 45.1 | 1.50 |
| 144-30011 | X-Plate, Short, Left | 18.4 | 32.5 | 1.50 |
| 144-30012 | X-Plate, Short, Right | 18.4 | 32.5 | 1.50 |

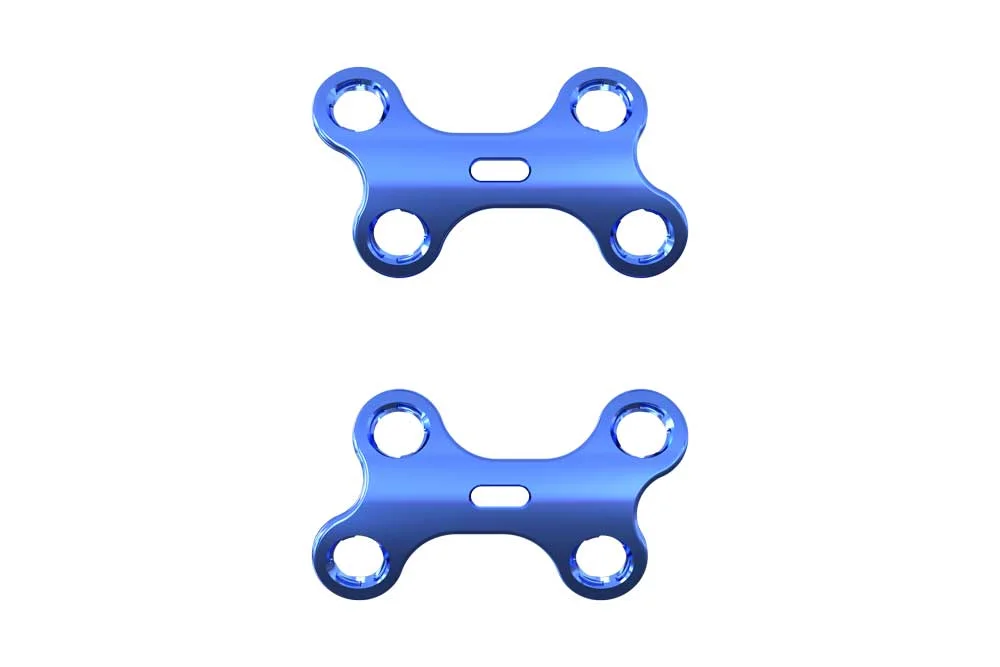

| 144-40011 | Dog Bone Plate, Narrow, Short | 17.0 | 26.0 | 1.50 |
| 144-40012 | Dog Bone Plate, Narrow, Long | 17.0 | 32.0 | 1.50 |

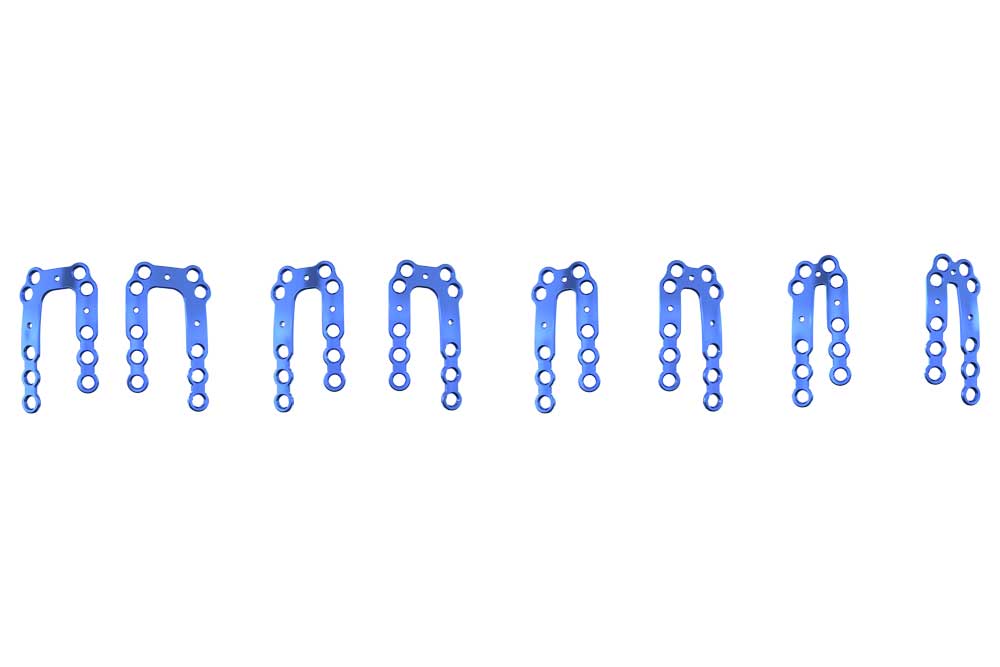

| 144-80011 | Lisfranc Plate, Extra Small, Left | 22.2 | 52.9 | 1.50 |
| 144-80012 | Lisfranc Plate, Extra Small, Right | 22.2 | 52.9 | 1.50 |
| 144-80021 | Lisfranc Plate, Small, Left | 25.1 | 52.9 | 1.50 |
| 144-80022 | Lisfranc Plate, Small, Right | 25.1 | 52.9 | 1.50 |
| 144-80031 | Lisfranc Plate, Medium, Left | 28.0 | 52.9 | 1.50 |
| 144-80032 | Lisfranc Plate, Medium, Right | 28.0 | 52.9 | 1.50 |
| 144-80041 | Lisfranc Plate, Large, Left | 30.8 | 52.9 | 1.50 |
| 144-80042 | Lisfranc Plate, Large, Right | 30.8 | 52.9 | 1.50 |
| 144-70051 | Lapidus Plate, 5 Hole, Left | 16.4 | 40.0 | 1.50 |
| 144-70052 | Lapidus Plate, 5 Hole, Right | 16.4 | 40.0 | 1.50 |
2.8 mm solid plate screws22 items
| Ref. | Description |
|---|---|
| 144-28010 | Solid Non-Locking Screw - 2.8 x 10mm |
| 144-28012 | Solid Non-Locking Screw - 2.8 x 12mm |
| 144-28014 | Solid Non-Locking Screw - 2.8 x 14mm |
| 144-28016 | Solid Non-Locking Screw - 2.8 x 16mm |
| 144-28018 | Solid Non-Locking Screw - 2.8 x 18mm |
| 144-28020 | Solid Non-Locking Screw - 2.8 x 20mm |
| 144-28022 | Solid Non-Locking Screw - 2.8 x 22mm |
| 144-28024 | Solid Non-Locking Screw - 2.8 x 24mm |
| 144-28026 | Solid Non-Locking Screw - 2.8 x 26mm |
| 144-28028 | Solid Non-Locking Screw - 2.8 x 28mm |
| 144-28030 | Solid Non-Locking Screw - 2.8 x 30mm |
| 144-28110 | Solid Locking Screw - 2.8 x 10mm |
| 144-28112 | Solid Locking Screw - 2.8 x 12mm |
| 144-28114 | Solid Locking Screw - 2.8 x 14mm |
| 144-28116 | Solid Locking Screw - 2.8 x 16mm |
| 144-28118 | Solid Locking Screw - 2.8 x 18mm |
| 144-28120 | Solid Locking Screw - 2.8 x 20mm |
| 144-28122 | Solid Locking Screw - 2.8 x 22mm |
| 144-28124 | Solid Locking Screw - 2.8 x 24mm |
| 144-28126 | Solid Locking Screw - 2.8 x 26mm |
| 144-28128 | Solid Locking Screw - 2.8 x 28mm |
| 144-28130 | Solid Locking Screw - 2.8 x 30mm |
3.5 mm solid plate screws23 items
| Ref. | Description |
|---|---|
| 144-35010 | Solid Non-Locking Screw - 3.5 x 10mm |
| 144-35012 | Solid Non-Locking Screw - 3.5 x 12mm |
| 144-35014 | Solid Non-Locking Screw - 3.5 x 14mm |
| 144-35016 | Solid Non-Locking Screw - 3.5 x 16mm |
| 144-35018 | Solid Non-Locking Screw - 3.5 x 18mm |
| 144-35020 | Solid Non-Locking Screw - 3.5 x 20mm |
| 144-35022 | Solid Non-Locking Screw - 3.5 x 22mm |
| 144-35024 | Solid Non-Locking Screw - 3.5 x 24mm |
| 144-35026 | Solid Non-Locking Screw - 3.5 x 26mm |
| 144-35028 | Solid Non-Locking Screw - 3.5 x 28mm |
| 144-35030 | Solid Non-Locking Screw - 3.5 x 30mm |
| 144-35110 | Solid Locking Screw - 3.5 x 10mm |
| 144-35112 | Solid Locking Screw - 3.5 x 12mm |
| 144-35114 | Solid Locking Screw - 3.5 x 14mm |
| 144-35116 | Solid Locking Screw - 3.5 x 16mm |
| 144-35118 | Solid Locking Screw - 3.5 x 18mm |
| 144-35120 | Solid Locking Screw - 3.5 x 20mm |
| 144-35122 | Solid Locking Screw - 3.5 x 22mm |
| 144-35124 | Solid Locking Screw - 3.5 x 24mm |
| 144-35126 | Solid Locking Screw - 3.5 x 26mm |
| 144-35128 | Solid Locking Screw - 3.5 x 28mm |
| 144-35130 | Solid Locking Screw - 3.5 x 30mm |
| 144-35135 | Solid Locking Screw - 3.5 x 35mm |
PlantarFiX Posts2 items
| Ref. | Description |
|---|---|
| 144-42112 | PlantarFiX Post - 12mm |
| 144-42116 | PlantarFiX Post - 16mm |
3.5 mm cannulated compression screws11 items
| Ref. | Description |
|---|---|
| 144-35224 | Cannulated Compression Screw 3.5 x 24mm |
| 144-35226 | Cannulated Compression Screw 3.5 x 26mm |
| 144-35228 | Cannulated Compression Screw 3.5 x 28mm |
| 144-35230 | Cannulated Compression Screw 3.5 x 30mm |
| 144-35232 | Cannulated Compression Screw 3.5 x 32mm |
| 144-35234 | Cannulated Compression Screw 3.5 x 34mm |
| 144-35236 | Cannulated Compression Screw 3.5 x 36mm |
| 144-35238 | Cannulated Compression Screw 3.5 x 38mm |
| 144-35240 | Cannulated Compression Screw 3.5 x 40mm |
| 144-35245 | Cannulated Compression Screw 3.5 x 45mm |
| 144-35250 | Cannulated Compression Screw 3.5 x 50mm |
Joint preparation instruments11 items
| Ref. | Description |
|---|---|
| 113-00114 | MTP Cone Rasp - 14mm |
| 113-00116 | MTP Cone Rasp - 16mm |
| 113-00118 | MTP Cone Rasp - 18mm |
| 113-00120 | MTP Cone Rasp - 20mm |
| 113-00214 | MTP Cup Rasp - 14mm |
| 113-00216 | MTP Cup Rasp - 16mm |
| 113-00218 | MTP Cup Rasp - 18mm |
| 113-00220 | MTP Cup Rasp - 20mm |
| 144-00016 | MTP Barrel Reamer |
| 144-00030 | Joint Preparation Rasp |
| 144-00032 | Fenestrating Drill |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the Extremity Medical website or the instructions for use before ordering.
