NeoSpan® SE Compression Staples for Hand

Overview

NeoSpan® SE is a superelastic compression staple for fixation of fusions and osteotomies of the bones of the hand. The staple’s superelastic properties and inside/outside stepped-tooth design are intended to resist pull-out. It is supplied with a sterile, disposable instrumentation kit; the inserter spreads the legs of the staple and then releases them for compression loading.

Features

Low profile
Inside/outside stepped-tooth design, intended to resist pull-out
Sizes from 8 to 25 mm
Sterile, single-use inserter

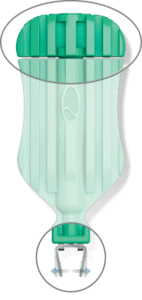

Using the staple inserter

NeoSpan SE Compression Staples for Hand

Compression loading: with the staple held in the inserter’s metal prongs, slowly twist the top handle clockwise, extending the internal plunger to spread the staple’s legs.

NeoSpan SE Compression Staples for Hand

Release: slowly twist the top handle anticlockwise.

NeoSpan SE Compression Staples for Hand

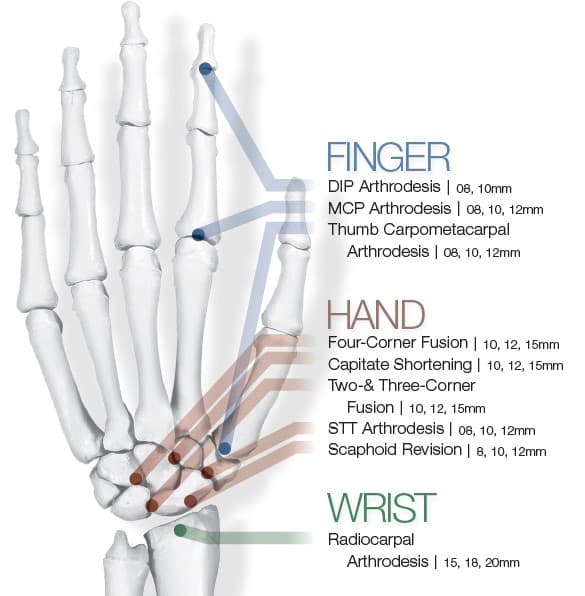

Indications

Fixation of fusions and osteotomies of the bones of the hand.

See the instructions for use for full information.

Sizes and ordering

Staples are supplied sterile with a single-use inserter. Codes are from CONMED's CE-market catalogue (2025); T50 SN215, SN118 and SN120 are in the catalogue and the foot surgical technique but not in the hand technique.

NeoSpan® SE compression staples, sterile, with single-use instruments13 items

Ref.	Size (A × B × C)
T50 SN008	8 × 8 × 8 mm
T50 SN010	10 × 10 × 10 mm
T50 SN012	12 × 12 × 12 mm
T50 SN015	15 × 12 × 12 mm
T50 SN110	10 × 15 × 13 mm
T50 SN112	12 × 15 × 13 mm
T50 SN115	15W × 15 × 15 mm
T50 SN215	15 × 15 × 15 mm
T50 SN018	18 × 16 × 16 mm
T50 SN118	18 × 14 × 14 mm
T50 SN020	20 × 20 × 20 mm
T50 SN120	20 × 15 × 15 mm
T50 SN025	25 × 22 × 22 mm

Optional instrument1 item

Ref.	Description
T05 S0001	NeoSpan staple sizer

Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the ConMed website or the instructions for use before ordering.
