NeoSys® – I.B.S.™ Screws with Single-Use Instruments

NeoSys® is a sterile, single-use instrument kit for implanting I.B.S.™ compression screws (2.0 to 3.5 mm) and fully threaded (neutralisation) screws (2.5 to 3.5 mm) in the foot; it is also used for I.B.S.™ 2.2 and 2.7 mm snap-off screws. Each blister pack contains the instruments needed for the procedure. The I.B.S.™ screws are cannulated, self-drilling and self-tapping, in titanium alloy, and are supplied sterile. A reusable instrument set is also listed.

Features

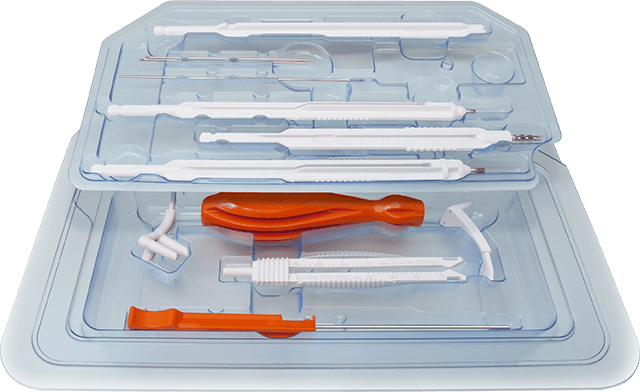

NeoSys® kit: implant measurer, depth-gauge attachment, guides, driver shafts and handles, K-wires and countersink in one sterile blister
Recyclable polymer instruments with grade 1 stainless-steel connection tips, designed to resist torsional stress
Cannulated drivers with an open window for K-wire removal; the screw diameter is marked on each driver shaft
Drivers fit the handle or a power drill with an AO attachment

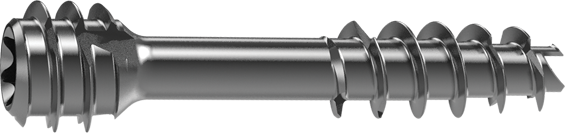

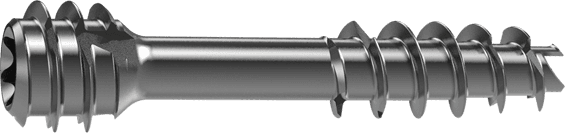

I.B.S.™ screws: Torx drive (T7 and T8), self-drilling and self-tapping, with a self-countersinking head

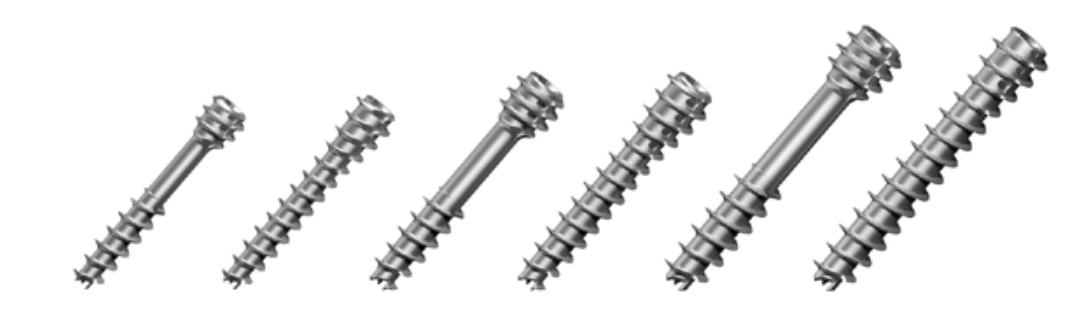

Compression (differential pitch) screws from 2.0 mm; fully threaded screws from 2.5 mm

Indications

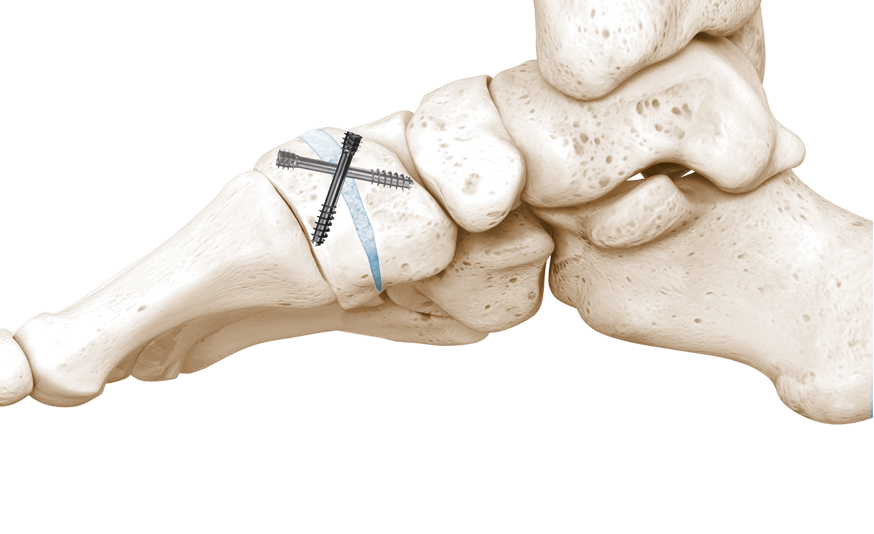

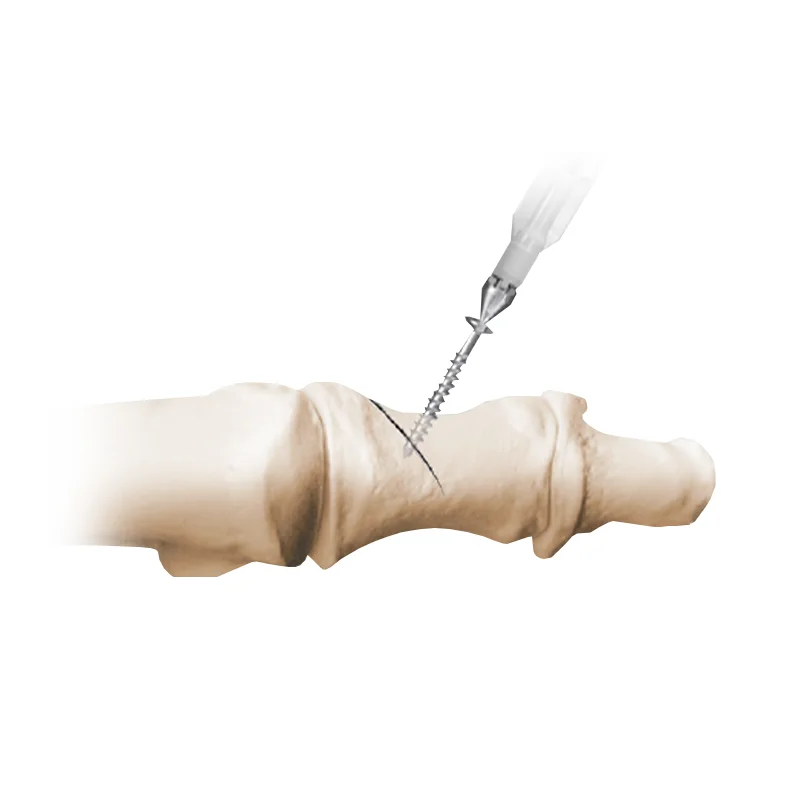

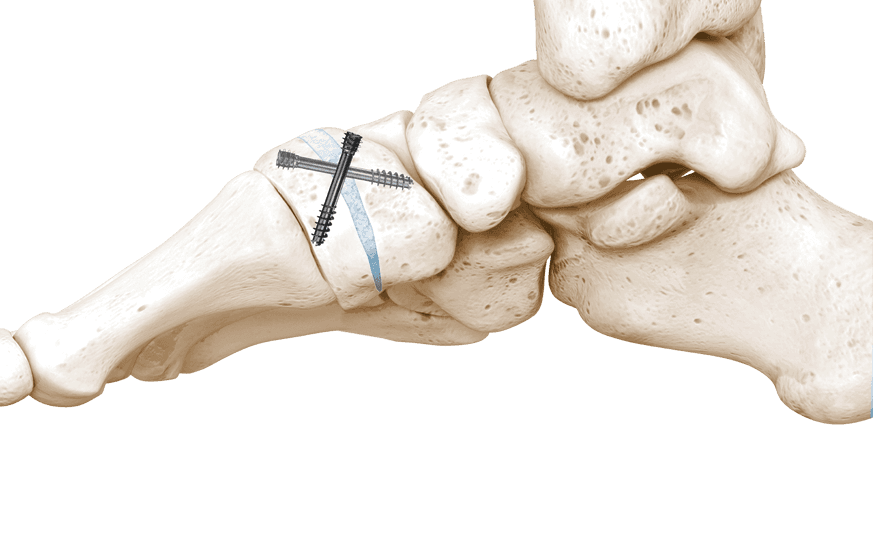

Fixation of arthrodesis, osteotomies or fractures of long or short bones of the upper and lower limbs, and osteosynthesis requiring mono- or bicortical compression. The screw size should be adapted to the specific indication.

Contraindications

Current or past systemic, acute or chronic inflammation; active infection; sensitivity or allergy to the implant materials.

See the instructions for use for full information.

Sizes and ordering

Screws are titanium alloy (Ti6Al4V), supplied sterile. Codes are from CONMED's CE-market catalogue (2025). 2.0 mm screws in odd lengths (21 to 29 mm) are available in some countries only. NeoSys EVO and XPERT kits are made to order (minimum order 100).

I.B.S.™ compression screws, Ø 2.0 mm (T7), titanium, sterile21 items

Ref.	Length
S20 ST010	10 mm
S20 ST011	11 mm
S20 ST012	12 mm
S20 ST013	13 mm
S20 ST014	14 mm
S20 ST015	15 mm
S20 ST016	16 mm
S20 ST017	17 mm
S20 ST018	18 mm
S20 ST019	19 mm
S20 ST020	20 mm
S20 ST021	21 mm
S20 ST022	22 mm
S20 ST023	23 mm
S20 ST024	24 mm
S20 ST025	25 mm
S20 ST026	26 mm
S20 ST027	27 mm
S20 ST028	28 mm
S20 ST029	29 mm
S20 ST030	30 mm

I.B.S.™ screws, Ø 2.5 mm (T7), titanium, sterile9 items

Ref. compression	Ref. fully threaded	Length
S25 ST012	S25 ST212	12 mm
S25 ST014	S25 ST214	14 mm
S25 ST016	S25 ST216	16 mm
S25 ST018	S25 ST218	18 mm
S25 ST020	S25 ST220	20 mm
S25 ST022	S25 ST222	22 mm
S25 ST024	S25 ST224	24 mm
S25 ST026	S25 ST226	26 mm
S25 ST028	S25 ST228	28 mm

I.B.S.™ screws, Ø 3.0 mm (T8), titanium, sterile12 items

Ref. compression	Ref. fully threaded	Length
S30 ST112	S30 ST212	12 mm
S30 ST114	S30 ST214	14 mm
S30 ST116	S30 ST216	16 mm
S30 ST118	S30 ST218	18 mm
S30 ST120	S30 ST220	20 mm
S30 ST122	S30 ST222	22 mm
S30 ST124	S30 ST224	24 mm
S30 ST126	S30 ST226	26 mm
S30 ST128	S30 ST228	28 mm
S30 ST130	S30 ST230	30 mm
S30 ST132	S30 ST232	32 mm
S30 ST134	S30 ST234	34 mm

I.B.S.™ screws, Ø 3.5 mm (T8), titanium, sterile12 items

Ref. compression	Ref. fully threaded	Length
S35 ST118	S35 ST218	18 mm
S35 ST120	S35 ST220	20 mm
S35 ST122	S35 ST222	22 mm
S35 ST124	S35 ST224	24 mm
S35 ST126	S35 ST226	26 mm
S35 ST128	S35 ST228	28 mm
S35 ST130	S35 ST230	30 mm
S35 ST132	S35 ST232	32 mm
S35 ST134	S35 ST234	34 mm
S35 ST136	S35 ST236	36 mm
S35 ST138	S35 ST238	38 mm
S35 ST140	S35 ST240	40 mm

NeoSys® single-use instrument kit5 items

Ref.	Description
G02 10191	NeoSys® LIGHT single-use instrument kit, complete
G02 10011	NeoSys® LIGHT single-use instrument kit, standard
G02 10021	NeoSys® LIGHT single-use instrument kit, foot, 2.0–2.5 mm screws
G02 10031	NeoSys® LIGHT single-use instrument kit, hand, 2.0–2.5 mm screws
G02 10041	NeoSys® LIGHT single-use instrument kit, foot, 3.0–3.5 mm screws

Cannulated 2-in-1 reamers, AO attachment, sterile6 items

Ref.	Description
G01 00721	2.2 × 22 mm, 65 mm total length, for 3.0 and 3.5 mm screws
G01 00731	2.2 × 32 mm, 65 mm total length, for 3.0 and 3.5 mm screws
G01 01351	1.6 × 18 mm, 65 mm total length, for 2.5 mm screws
G01 01361	1.6 × 26 mm, 65 mm total length, for 2.0 and 2.5 mm screws
G02 00011	1.6 × 10 mm, for 2.5 mm screws
G02 00021	2.2 × 11 mm, for 3.0 mm screws

Non-cannulated 2-in-1 drills, AO attachment, sterile (2023 surgical technique)4 items

Ref.	Diam.	Length
G01 00781	2.2 mm	22 mm
G01 00801	2.2 mm	32 mm
G01 01371	1.6 mm	18 mm
G01 01381	1.6 mm	26 mm

Sterile guide wires, single trocar3 items

Ref. 1-pack	Ref. 3-pack	Diam.	Length
K10 SS070	K13 SS070	0.8 mm	70 mm
K10 SS071	K13 SS071	1.0 mm	70 mm
K10 SS100	K13 SS100	1.0 mm	100 mm

Reusable instrument set, Ø 2.0 to 3.5 mm15 items

Ref.	Description
G01 10012	Container Instrument Tray
G01 00881	Orange Modular Handle Small Size
G01 01661	Measurer 10-60mm
G01 01671	Depth gauge 10-60mm
G01 00432	Snap-off Screwdriver
G01 00852	Torx T7 graduated screwdriver
G01 00862	Torx T8 graduated screwdriver
G01 00891	Injected Ruler For K-wire 70 & 100mm
G01 00201	Cannulated Torx 7 attachment screwdriver
G01 00241	Cannulated Torx 8 attachment screwdriver
G01 00921	K-wire Holder 70 and 100mm Diam 0.8mm - 1.0mm - 2.5mm
K10 NS070	Kirschner wire non sterile Diam 0.8mm length 70mm 1 sharp end
K10 NS071	Kirschner wire non sterile Diam 1.0mm length 70mm 1 sharp end
K10 NS100	Kirschner wire non sterile Diam 1.0mm length 100mm 1 sharp end
G01 01341	Pilot Hole Starter Drill

Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the ConMed website or the instructions for use before ordering.
