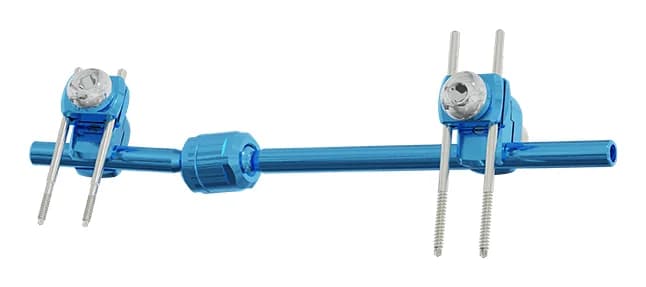

ClickIt Stylo is a modular external fixator for the wrist, supplied as a single-use sterile kit. The body is two rods joined by a ball joint unit, which allows correction in every plane, and quick connection clamps hold the radius and metacarpal screws.
Features
- Lightweight and compact; aluminium and steel alloy.
- Modular: open, double and single clamps and an arch can be added.
- Additional screws and/or K-wires (1.5 to 3.0 mm) can be connected to the body with auxiliary accessories.
- Ball joint unit for correction in every plane.
- Quick connection clamps.
- Optional compression-distraction unit: one full turn gives 1.0 mm.
- MR conditional (see the instructions for use).
- Single-use sterile kit, ready for use.
Indications
Intra- and extra-articular fractures of the wrist:
- unstable fractures of the radius or ulna;
- open fractures of the radius or ulna;
- fractures of the radius or ulna with severe soft-tissue injury.
See the instructions for use for contraindications.
Components
- Fixator body: two rods joined by a ball joint unit, which allows correction in every plane.
- Quick connection clamps: attach the screws to the body.
- Compression-distraction unit (optional, 5002024): one full turn of the screw gives 1.0 mm.
- Accessories: open clamp (adds K-wires or screws after the fixator is in place), double and single clamps, and an arch for K-wires or screws in other planes.
Sterilisation
ClickIt Stylo kits and components are supplied sterile. Reusable instruments: saturated-steam autoclave at 134 °C for 5 minutes.
Sizes and ordering
For availability, kit contents or a quote, use Enquire above or call us.
Kit1 item
| Ref. | Description |
|---|---|

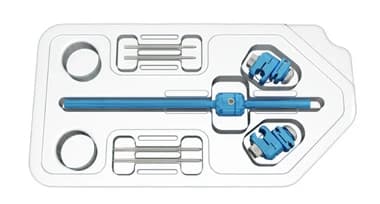

| 5002000MST | ClickIt Stylo kit (sterile): fixator body, two quick connection clamps, two radius screws Ø 3.0 × 70 mm and two metacarpal screws Ø 3.0 × 60 mm (thread Ø 2.5 mm) |
Components and accessories (sterile)18 items
| Ref. | Description |
|---|---|
| 5002007ST | Extension 40 mm |
| 5002010ST | ClickIt Stylo single clamp |
| 5002010AST | ClickIt Stylo single open clamp |
| 5002011ST | ClickIt Stylo double extended clamp |
| 5002022ST | Stylo double clamp |
| 5002016ST | Arch 120°, Ø 90 mm |
| 5002016CST | Arch 120°, Ø 90 mm, with screw clamp |
| 5002015ST | Stylo rail connector |
| 5000004ST | Single clamp for arch |
| 5002401ST | Self-drilling cortical screw Ø 3.0 mm, shank L 60 mm, thread L 20 mm |
| 5002402ST | Self-drilling cortical screw Ø 3.0 mm, shank L 70 mm, thread L 20 mm |
| 5002403ST | Self-drilling cortical screw Ø 3.0 mm, shank L 80 mm, thread L 20 mm |
| 5002404ST | Self-drilling cortical screw Ø 3.0 mm, shank L 90 mm, thread L 20 mm |
| 5002411ST | Self-drilling cortical screw Ø 3.0 mm, shank L 50 mm, thread Ø 2.5 mm L 12 mm |
| 5002412ST | Self-drilling cortical screw Ø 3.0 mm, shank L 60 mm, thread Ø 2.5 mm L 12 mm |
| 5002413ST | Self-drilling cortical screw Ø 3.0 mm, shank L 70 mm, thread Ø 2.5 mm L 12 mm |
| 5002414ST | Self-drilling cortical screw Ø 3.0 mm, shank L 80 mm, thread Ø 2.5 mm L 12 mm |
| 5002431ST | Threaded wire Ø 1.5 mm, L 100 mm, thread L 4.0 mm (for clamps 5002010ST, 5002010AST, 5002011ST and 5000004ST) |
Instruments8 items
| Ref. | Description |
|---|---|
| 5006562STY | Complete ClickIt Stylo instrument sterilisation tray |
| 5002072 | Double drill guide (in tray 5006562STY) |
| 5002056 | Screw extension (in tray 5006562STY) |
| 5000214 | T-handle wrench 10 mm (in tray 5006562STY) |
| 5000623 | Flat wrench 10 mm (in tray 5006562STY) |
| 5000625 | T-handle wrench and hex wrench 3.0–5.0 mm (in tray 5006562STY) |
| 5002024 | Compression and distraction unit, optional (in tray 5006562STY) |
| 5006560STY | ClickIt Stylo instrument sterilisation tray, empty |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the Mikai website or the instructions for use before ordering.
Surgical technique & brochures
Product information
How is it supplied?
As a single-use kit, sterile and ready for use.
Which screws are in the kit?
Two Ø 3.0 × 70 mm screws for the radius and two Ø 3.0 × 60 mm screws with a Ø 2.5 mm thread for the metacarpal.
