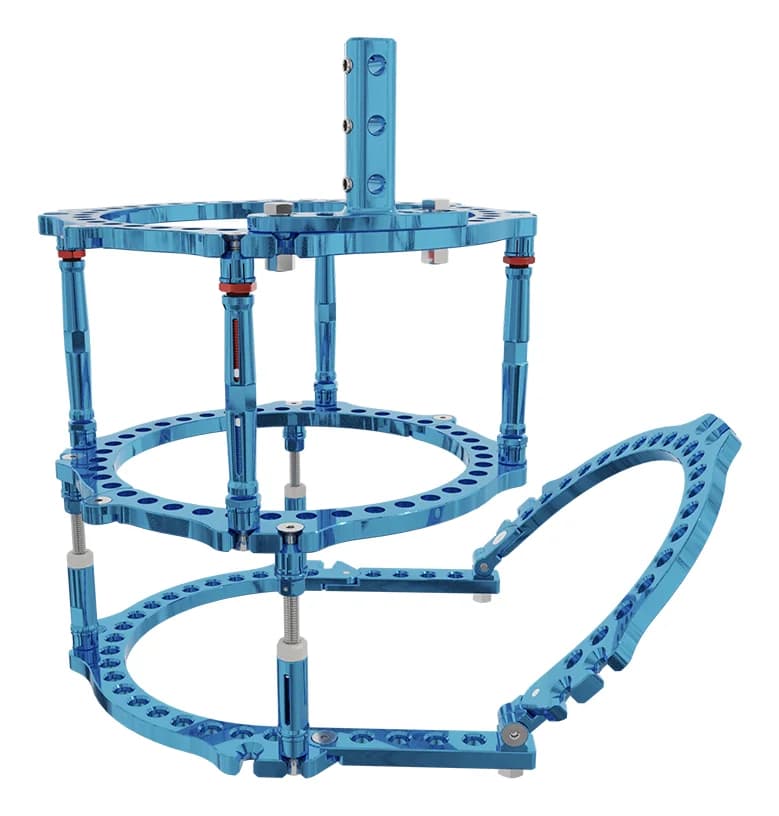

ClickIt CF is a circular external fixator supplied sterile. Its quick-connection struts attach to the outside of the rings rather than through them, leaving every ring hole available for wires and screws. Telescopic struts allow gradual compression, distraction or bone transport.
Features
- Supplied sterile, ready for use.
- Aluminium alloy rings and stainless steel components.
- Quick-connection struts: static, bidirectional and unidirectional telescopic, and rapid-adjust versions.
- MR conditional (see the instructions for use).
- Trauma and foot-plate kits, plus individual rings, struts, clamps, wires and screws.
Indications
- Long bone fractures, bone infection, and septic and non-septic non-unions.
- Acquired and congenital deformities.
- Complex fractures around the knee and ankle, foot fractures and the diabetic foot.
Applications
Fracture fixation, limb lengthening and bone transport, deformity correction, and ankle and knee arthrodesis.
Indications, contraindications, warnings and precautions are listed in the instructions for use (IFU).
Struts

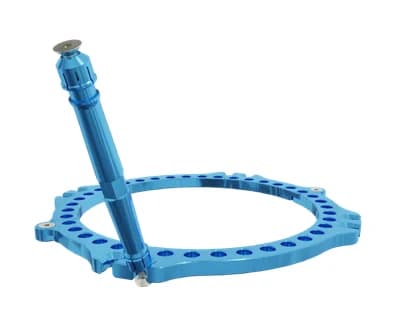

- Quick-connection struts attach to the outside of the half rings with a countersunk screw, so every ring hole stays free; the connection allows partial angular correction.
- Static struts in several lengths.
- Bidirectional telescopic struts: each turn gives 2 mm of compression or distraction (trauma).
- Unidirectional telescopic struts: each turn gives 1 mm (bone transport).
Rings and accessories
- Half rings and crown half rings join externally; 5/8 rings, full rings and ring segments.
- Foot rings in several diameters, with extensions in three lengths and a hinged connection bolt for the front ring.
- Screw clamps for Ø 4.0, 5.0 and 6.0 mm screws, with a slotted base for rotation to the bone; wire bolts tightened from the top.
- 45° oblique supports join rings of different diameters.
- Rocker rail for weight-bearing: connected to the foot ring with threaded struts and bolts, compatible with foot rings of different diameters, with a treaded rubber coating.
Kit contents
- CF trauma kit: 6 half rings, 6 countersunk screws, 8 wire clamps and 8 nuts.
- CF foot plate kit: 4 half rings, 6 countersunk screws, 1 foot plate, 1 double-row foot plate, 2 foot plate joints, 10 wire clamps and 12 nuts.
Sterilisation
ClickIt CF devices are supplied sterile. Reusable instruments: saturated-steam autoclave at 134 °C for 5 minutes.
Videos
Mikai has published these videos on YouTube (they open on YouTube):
Sizes and ordering
For availability, kit contents or a quote, use Enquire above or call us.
CF trauma kits3 items
| Ref. | Description |
|---|---|
| 50003TRST14 | CF trauma kit Ø 140 mm |
| 50003TRST16 | CF trauma kit Ø 160 mm |
| 50003TRST18 | CF trauma kit Ø 180 mm |
CF foot plate kits4 items
| Ref. | Description |
|---|---|
| 50003ARST14 | CF foot plate kit Ø 140 mm |
| 50003ARST16 | CF foot plate kit Ø 160 mm |
| 50003ARST18 | CF foot plate kit Ø 180 mm |
| 50003ARST20 | CF foot plate kit Ø 200 mm |
Half rings8 items
| Ref. | Description |
|---|---|
| 5000305ST2 | Half ring Ø 80 mm (2 pcs) |
| 5000307ST2 | Half ring Ø 100 mm (2 pcs) |
| 5000303ST2 | Half ring Ø 120 mm (2 pcs) |
| 5000301ST2 | Half ring Ø 140 mm (2 pcs) |
| 5000300ST2 | Half ring Ø 160 mm (2 pcs) |
| 5000302ST2 | Half ring Ø 180 mm (2 pcs) |
| 5000304ST2 | Half ring Ø 200 mm (2 pcs) |
| 5000306ST2 | Half ring Ø 220 mm (2 pcs) |
Crown half rings8 items
| Ref. | Description |
|---|---|
| 50003A.100ST2 | Crown half ring Ø 100 mm (2 pcs) |
| 50003A.120ST2 | Crown half ring Ø 120 mm (2 pcs) |
| 50003A.140ST2 | Crown half ring Ø 140 mm (2 pcs) |
| 50003A.160ST2 | Crown half ring Ø 160 mm (2 pcs) |
| 50003A.180ST2 | Crown half ring Ø 180 mm (2 pcs) |
| 50003A.200ST2 | Crown half ring Ø 200 mm (2 pcs) |
| 50003A.220ST2 | Crown half ring Ø 220 mm (2 pcs) |
| 50003A.240ST2 | Crown half ring Ø 240 mm (2 pcs) |
Rings 5/87 items
| Ref. | Description |
|---|---|
| 5006102ST | 5/8 ring Ø 120 mm |
| 5006104ST | 5/8 ring Ø 140 mm |
| 5006106ST | 5/8 ring Ø 160 mm |
| 5006108ST | 5/8 ring Ø 180 mm |
| 5006110ST | 5/8 ring Ø 200 mm |
| 5006112ST | 5/8 ring Ø 220 mm |
| 5006114ST | 5/8 ring Ø 240 mm |
Foot rings5 items
| Ref. | Description |
|---|---|
| 5000361ST | Foot ring Ø 120 mm |
| 5000363ST | Foot ring Ø 140 mm |
| 5000360ST | Foot ring Ø 160 mm |
| 5000362ST | Foot ring Ø 180 mm |
| 5000364ST | Foot ring Ø 200 mm |
Rings5 items
| Ref. | Description |
|---|---|
| 500.301 | Ring Ø 140 mm |
| 500.300 | Ring Ø 160 mm |
| 500.302 | Ring Ø 180 mm |
| 500.304 | Ring Ø 200 mm |
| 500.306 | Ring Ø 220 mm |
Ring segments5 items
| Ref. | Description |
|---|---|
| 5006031ST | Ring segment Ø 140 mm |
| 5006030ST | Ring segment Ø 160 mm |
| 5006032ST | Ring segment Ø 180 mm |
| 5006034ST | Ring segment Ø 200 mm |
| 5006035ST | Ring segment Ø 220 mm |
Foot ring long5 items
| Ref. | Description |
|---|---|
| 5000363LST | Foot ring long Ø 140 mm |
| 5000360LST | Foot ring long Ø 160 mm |
| 5000361LST | Foot ring long Ø 120 mm |
| 5000362LST | Foot ring long Ø 180 mm |
| 5000364LST | Foot ring long Ø 200 mm |
Radiolucent carbon ring2 items
| Ref. | Description |
|---|---|
| 500C300 | Radiolucent carbon ring Ø 160 mm (non-sterile) |
| 500C302 | Radiolucent carbon ring Ø 180 mm (non-sterile) |
Countersunk screws2 items
| Ref. | Description |
|---|---|
| 5000352ST10 | Ring connection bolt (10 pcs) |
| 3000456ST10 | ClickIt strut bolt (10 pcs) |
Static struts5 items
| Ref. | Description |
|---|---|
| 5000310ST2 | Static strut L 30 mm (2 pcs) |
| 5000312ST2 | Static strut L 50 mm (2 pcs) |
| 5000314ST2 | Static strut L 100 mm (2 pcs) |
| 5000316ST2 | Static strut L 150 mm (2 pcs) |
| 5000318ST2 | Static strut L 200 mm (2 pcs) |
Bidirectional telescopic struts3 items
| Ref. | Description |
|---|---|
| 5000320ST2 | Bilateral telescopic strut L 80-100 mm (2 pcs) |
| 5000322ST2 | Bilateral telescopic strut L 100-145 mm (2 pcs) |
| 5000324ST2 | Bilateral telescopic strut L 150-245 mm (2 pcs) |
Rapid adjust struts3 items
| Ref. | Description |
|---|---|
| 50003B.100ST | Rapid adjust strut L 100 mm |
| 50003B.150ST | Rapid adjust strut L 150 mm |
| 50003B.250ST | Rapid adjust strut L 250 mm |
Unidirectional telescopic struts4 items
| Ref. | Description |
|---|---|
| 5006020ST2 | Unilateral telescopic strut L 65-80 mm (2 pcs) |
| 5006022ST2 | Unilateral telescopic strut L 80-110 mm (2 pcs) |
| 5006024ST2 | Unilateral telescopic strut L 100-150 mm (2 pcs) |
| 5006026ST2 | Unilateral telescopic strut L 150-250 mm (2 pcs) |
Threaded struts8 items
| Ref. | Description |
|---|---|
| 5000380ST2 | Threaded rod M6x50 mm (2 pcs) |
| 5000381ST2 | Threaded rod M6x75 mm (2 pcs) |
| 5000382ST2 | Threaded rod M6x100 mm (2 pcs) |
| 5000384ST2 | Threaded rod M6x150 mm (2 pcs) |
| 5000385ST2 | Threaded rod M6x200 mm (2 pcs) |
| 5000386ST2 | Threaded rod M6x520 mm (2 pcs), as printed in the brochure; confirm the length (520 or 250 mm) with Mikai |
| 5000388ST2 | Threaded rod M6x300 mm (2 pcs) |
| 5000390ST2 | Threaded rod M6x400 mm (2 pcs) |
45° oblique supports2 items
| Ref. | Description |
|---|---|
| 5006045ST | Oblique support 45° L 50 mm |
| 5006046ST | Oblique support 45° L 100 mm |
Clamps24 items
| Ref. | Description |
|---|---|
| 5000330ST2 | Wire bolt (2 pcs) |
| 5000330ST4 | Wire bolt (4 pcs) |
| 5000330LP | Long wire clamp with plate (non-sterile) |
| 5000330P | ClickIt CF wire clamp plate (non-sterile) |
| 500.330 | CF wire bolt (non-sterile) |
| 5000332ST | Screw bolt 1 hole |
| 5000333ST | Screw bolt 2 hole |
| 5000334ST | Screw bolt 3 hole |
| 5000335ST | 1-hole screw/wire post |
| 5000336ST | 2-hole screw/wire post |
| 5000337ST | 3-hole screw/wire post |
| 5006040ST | Compression/distraction nut |
| 5006042ST | Adaptation plate |
| 5006044ST5 | Washer Ø 13x2 mm (5 pcs) |
| 5006052ST2 | Hemispherical washer M6 (2 pcs) |
| 5000354ST20 | Nut 10 mm (20 pcs) |
| 5000356ST10 | Bolt M6x20 mm (10 pcs) |
| 5006050ST | Universal hinge coupling |
| 5006056ST2 | 90° hinge (2 pcs) |
| 5006057-10 | Wire stoppers (10 pcs) |
| 5006054ST2 | Male hinge (2 pcs) |
| 5006055ST2 | Female hinge (2 pcs) |
| 5006058ST | Hybrid connecting post (FEP) |
| 5006506ST | Hybrid connecting post (ClickIt ER) |
Foot ring accessories7 items
| Ref. | Description |
|---|---|
| 5000370ST2 | Foot ring extension 5-hole (2 pcs) |
| 5000372ST2 | Foot ring extension 7-hole (2 pcs) |
| 5000373ST2 | Foot ring extension 10-hole (2 pcs) |
| 5000374ST | Foot ring connection bolt |
| 5000374ST2 | Foot ring connection bolt (2 pcs) |
| 5000375ST2 | Foot ring support (2 pcs) |
| 5000375-2 | Foot ring support (2 pcs) (non-sterile) |
Wires10 items
| Ref. | Description |
|---|---|
| 5000340 | K-wire Ø 1.8 L 400 mm (non-sterile) |
| 5000340T | K-wire Ø 1.8 L 400 mm titanium (non-sterile) |
| 5000340ST5 | K-wire Ø 1.8 L 400 mm sterile (5 pcs) |
| 5000340TST5 | K-wire Ø 1.8 L 400 mm titanium sterile (5 pcs) |
| 5000341 | K-wire Ø 2.0 L 400 mm (non-sterile) |
| 5000341ST5 | K-wire Ø 2.0 L 400 mm sterile (5 pcs) |
| 5000342 | Olive K-wire Ø 1.8 L 400 mm (non-sterile) |
| 5000342ST5 | Olive K-wire Ø 1.8 L 400 mm sterile (5 pcs) |
| 5000343 | Olive K-wire Ø 2.0 L 400 mm (non-sterile) |
| 5000343ST5 | Olive K-wire Ø 2.0 L 400 mm sterile (5 pcs) |
HA coated universal stainless steel screws14 items
| Ref. | Description |
|---|---|
| VA4H150.40 | HA coated self-drilling cortical screw Ø 4.0 mm, L 150, T 40 mm |
| VA4H150.55 | HA coated self-drilling cortical screw Ø 4.0 mm, L 150, T 55 mm |
| VA5H150.40 | HA coated self-drilling cortical screw Ø 5.0 mm, L 150, T 40 mm |
| VA5H150.55 | HA coated self-drilling cortical screw Ø 5.0 mm, L 150, T 55 mm |
| VA5H150.70 | HA coated self-drilling cortical screw Ø 5.0 mm, L 150, T 70 mm |
| VA6H150.30 | HA coated self-drilling cortical screw Ø 6.0 mm, L 150, T 30 mm |
| VA6H150.40 | HA coated self-drilling cortical screw Ø 6.0 mm, L 150, T 40 mm |
| VA6H150.55 | HA coated self-drilling cortical screw Ø 6.0 mm, L 150, T 55 mm |
| VA6H150.70 | HA coated self-drilling cortical screw Ø 6.0 mm, L 150, T 70 mm |
| VA6H150.85 | HA coated self-drilling cortical screw Ø 6.0 mm, L 150, T 85 mm |
| VA6H250.40 | HA coated self-drilling cortical screw Ø 6.0 mm, L 250, T 40 mm |
| VA6H250.55 | HA coated self-drilling cortical screw Ø 6.0 mm, L 250, T 55 mm |
| VA6H250.70 | HA coated self-drilling cortical screw Ø 6.0 mm, L 250, T 70 mm |
| VA6H250.85 | HA coated self-drilling cortical screw Ø 6.0 mm, L 250, T 85 mm |
Universal titanium screws10 items
| Ref. | Description |
|---|---|
| VA4T150.40 | Titanium self-drilling cortical screw Ø 4.0 mm L 150 mm, T 40 mm |
| VA5T150.40 | Titanium self-drilling cortical screw Ø 5.0 mm L 150 mm, T 40 mm |
| VA5T150.55 | Titanium self-drilling cortical screw Ø 5.0 mm L 150 mm, T 55 mm |
| 5000591TST | Transfixation titanium screw Ø 4.5-5.0 mm L 200 mm |
| 5000592TST | Transfixation titanium screw Ø 4.5-5.0 mm L 250 mm |
| VA6T150.30 | Titanium self-drilling cortical screw Ø 6.0 mm L 150 mm, T 30 mm |
| VA6T250.40 | Titanium self-drilling cortical screw Ø 6.0 mm L 250 mm, T 40 mm |
| VA6T250.55 | Titanium self-drilling cortical screw Ø 6.0 mm L 250 mm, T 55 mm |
| VA6T250.70 | Titanium self-drilling cortical screw Ø 6.0 mm L 250 mm, T 70 mm |
| VA6T250.85 | Titanium self-drilling cortical screw Ø 6.0 mm L 250 mm, T 85 mm |
Universal stainless steel screws15 items
| Ref. | Description |
|---|---|
| VA4.150.40 | Self-drilling cortical screw Ø 4.0, L 150 mm, T 40 mm |
| VA4.150.55 | Self-drilling cortical screw Ø 4.0, L 150 mm, T 55 mm |
| VA5.150.30 | Self-drilling cortical screw Ø 5.0, L 150 mm, T L 30 mm |
| VA5.150.40 | Self-drilling cortical screw Ø 5.0, L 150 mm, T 40 mm |
| VA5.150.55 | Self-drilling cortical screw Ø 5.0, L 150 mm, T 55 mm |
| VA5.150.70 | Self-drilling cortical screw Ø 5.0, L 150 mm, T 70 mm |
| VA6.150.30 | Self-drilling cortical screw Ø 6.0, L 150 mm, T 30 mm |
| VA6.150.40 | Self-drilling cortical screw Ø 6.0, L 150 mm, T 40 mm |
| VA6.150.55 | Self-drilling cortical screw Ø 6.0, L 150 mm, T 55 mm |
| VA6.150.70 | Self-drilling cortical screw Ø 6.0, L 150 mm, T 70 mm |
| VA6.150.85 | Self-drilling cortical screw Ø 6.0, L 150 mm, T 85 mm |
| VA6.250.40 | Self-drilling cortical screw Ø 6.0, L 250 mm, T 40 mm |
| VA6.250.55 | Self-drilling cortical screw Ø 6.0, L 250 mm, T 55 mm |
| VA6.250.70 | Self-drilling cortical screw Ø 6.0, L 250 mm, T 70 mm |
| VA6.250.85 | Self-drilling cortical screw Ø 6.0, L 250 mm, T 85 mm |
Instruments21 items
| Ref. | Description |
|---|---|
| 5006018 | Complete ClickIt CF instrument sterilization set |
| 5000124L | 3 mm (extended) hexagonal screwdriver |
| 5000124 | 3 mm hexagonal screwdriver |
| 5006000 | 3 mm L-shaped hexagonal wrench |
| 5006001 | 10-10 mm flat wrench |
| 5006002 | 10-12 mm flat wrench |
| 5006003 | 10 mm L-shaped tubular wrench |
| 5006010 | 3.5 mm Ø, 110 mm L drill guide |
| 5006012 | 4.5 mm Ø, 110 mm L drill guide |
| 5000222 | 3.5 mm Ø, 200 mm L twist drill |
| 5000224 | 4.5 mm Ø, 250 mm L twist drill |
| 5000600 | T-wrench for Ø 4.0 mm screws |
| 5000601 | T-wrench for Ø 5.0 mm screws |
| 5000602 | T-wrench for Ø 6.0 mm screws |
| 5006004 | Tubular wire tensioner |
| 5006005 | Plier-type wire tensioner (holds the wire bolt head so the bolt can be secured with one wrench) |
| 5006006 | Wire cutter |
| 5006007 | Wire bending pliers |
| 5006008 | Stainless scale ruler |
| 5006014 | Wire tensioner adapter |
| 5006016 | Empty ClickIt CF instrument sterilization set |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the Mikai website or the instructions for use before ordering.
Related Products
External fixator
Stylo Diabetic Foot External Fixator
Single-use sterile external fixator kit for stabilising the medial column of the first ray in the diabetic and Charcot foot.
View product
Foot & ankle
Axis Beams – Charcot Fixation System
Fusion beam system for medial and lateral column arthrodesis in Charcot neuropathic osteoarthropathy, with an optional X-Clip for poor bone.
View product
Foot & ankle
TriWay® Ankle Fusion Nail
Solid intramedullary nail with a 7° posterior offset for tibiotalocalcaneal (TTC) arthrodesis with multiplanar fixation.
View product
