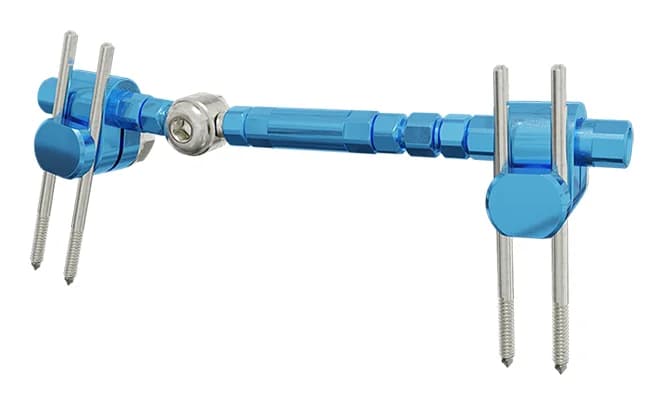

MiniStylo is a small external fixator for the hand and foot, supplied pre-assembled in a single-use sterile kit. The body has an integrated compression-distraction unit and a ball joint that allows flexion and extension.
Features
- Lightweight and stable.
- Modular, with detachable rods and ball joint.
- Universal clamp for screws and K-wires Ø 1.0 to 2.0 mm.
- Integrated compression-distraction unit.
- Ball joint allowing flexion and extension.
- Clamps lock to the body independently of the screws.
- MR conditional (see the instructions for use).
- Pre-assembled single-use sterile kit with four Ø 2.0 mm screws.
Indications
Open and closed fractures, aseptic and infected non-unions, and deformities of the metacarpals, metatarsals and phalanges.
See the instructions for use for contraindications.
Components
- Fixator body: detachable rods and ball joint, with an integrated compression-distraction unit. The ball joint allows flexion and extension.
- Double clamps: each holds a pair of screws; the clamp locks to the body independently of the screws.
- Screws: Ø 2.0 × 40 mm, thread length 10 mm.
- Universal clamp: accepts screws and K-wires from Ø 1.0 to 2.0 mm.
Sterilisation
The MiniStylo kit is supplied sterile. Reusable instruments: saturated-steam autoclave at 134 °C for 5 minutes.
Sizes and ordering
For availability, kit contents or a quote, use Enquire above or call us.
Kit1 item
| Ref. | Description |
|---|---|

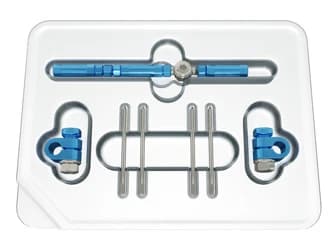

| 5002200MST | MiniStylo kit (sterile): fixator body, two double clamps and four screws Ø 2.0 × 40 mm (thread length 10 mm) |
Accessories (sterile)10 items
| Ref. | Description |
|---|---|
| 5002206ST | Extension bar 15 mm |
| 5002210ST | MiniStylo clamp (single) |
| 5002210AST | MiniStylo open-ended clamp |
| 5002211ST | MiniStylo T clamp (two screws or K-wires) |
| 5002212ST | MiniStylo/Smart dual monolateral clamp |
| 5002421ST | Self-drilling screw Ø 2.0 mm, L 30 mm, thread L 10 mm |
| 5002422ST | Self-drilling screw Ø 2.0 mm, L 40 mm, thread L 10 mm |
| 5002423ST | Self-drilling screw Ø 2.0 mm, L 50 mm, thread L 10 mm |
| 5002424ST | Self-drilling screw Ø 2.0 mm, L 60 mm, thread L 10 mm |
| 5002431ST | Threaded wire Ø 1.5 mm, L 100 mm, thread L 4.0 mm |
Instruments9 items
| Ref. | Description |
|---|---|
| 5002299 | Complete MiniStylo instrument sterilisation set |
| 5002220 | Flat wrench 5.5–8.0 mm, 2 pcs (in set 5002299) |
| 5002225 | T-wrench Ø 8.0 mm (in set 5002299) |
| 5002230 | Single drill guide Ø 2.0 mm (in set 5002299) |
| 5002235 | Double drill guide Ø 2.0 mm (in set 5002299) |
| 5000124 | Hexagonal screwdriver Ø 3.0 mm (in set 5002299) |
| 5000211 | Cross rim wrench for screws (in set 5002299) |
| 5002056 | Screw extension adapter (in set 5002299) |
| 5002290 | MiniStylo instrument sterilisation set, empty |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the Mikai website or the instructions for use before ordering.
Surgical technique & brochures
Product information
How is it supplied?
Pre-assembled, as a single-use kit, sterile and ready for use.
Can it be used in the foot as well as the hand?
Yes. It is indicated for the metacarpals, metatarsals and phalanges.
