The DuaFit® system consists of implants and instruments for arthrodesis of the interphalangeal joints of the lesser toes, including the correction of claw toe, hammer toe and mallet toe deformities.

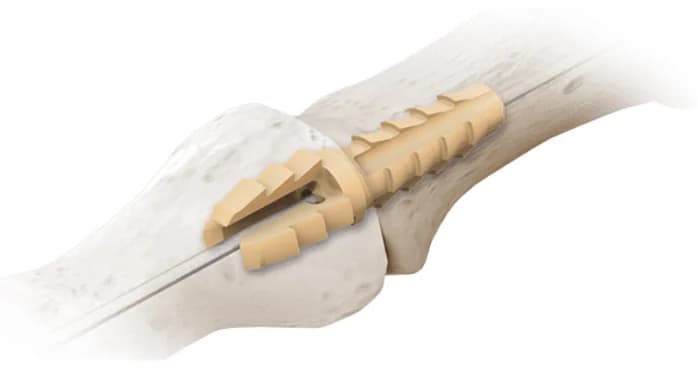

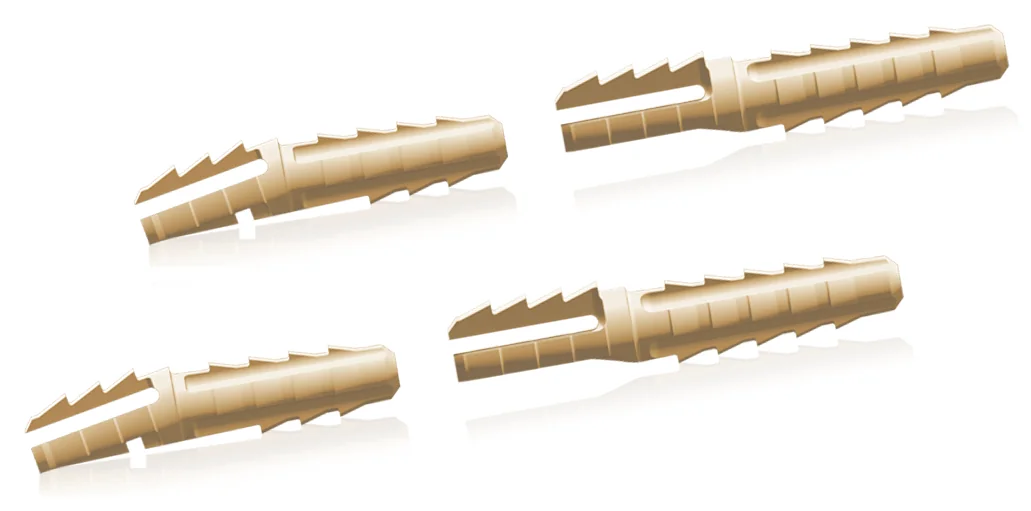

The DuaFit® PIP implant is a one-piece intramedullary implant made of radiolucent PEEK. Barbed legs and distal blades hold the adjacent phalanges. The implants come in three angles and six sizes each, and are used with a sterile, single-use instrument set or a reusable set.
Features
- One-piece intramedullary implant in radiolucent PEEK.
- Barbed legs and distal blades to hold the adjacent phalanges.
- 0°, 10° and 17° implants, each in six sizes (1, 1L, 2, 2L, 3 and 4).
- 0° implants cannulated for optional temporary K-wire fixation to the metatarsal.
- Sterile implants in blisters, colour-coded by angle and size.
- Sterile, single-use instrument kit.
Indications
Arthrodesis of the interphalangeal joints of the lesser toes, including the correction of claw toe, hammer toe and mallet toe deformities.
Indications, contraindications, warnings and precautions are listed in the instructions for use.
Sizes and angles
- Three angles, 0° (straight), 10° and 17°, to suit the patient's anatomy and the interphalangeal angle.
- Six sizes in each angle: 1, 1L, 2, 2L, 3 and 4 (sizes 1 to 4 are 11, 14, 17 and 20 mm long).
- The 0° implants are cannulated, so the corrected toe can be pinned temporarily to the metatarsal with a K-wire.
- Each implant is delivered sterile, nested in a blister, with colour-coded angle and size.
Sizes and ordering
Implants are PEEK-OPTIMA® and supplied sterile. Codes are from CONMED's CE-market catalogue (2025); sizes 1 to 4 are 11, 14, 17 and 20 mm long (CONMED website), and 1L and 2L are long versions of sizes 1 and 2.
DuaFit PIP implants, 0° (straight, cannulated)6 items
| Ref. | Size |
|---|---|
| A60 SP001 | 1 |
| A60 SP005 | 1L |
| A60 SP002 | 2 |
| A60 SP006 | 2L |
| A60 SP003 | 3 |
| A60 SP004 | 4 |
DuaFit PIP implants, 10°6 items
| Ref. | Size |
|---|---|
| A60 SP101 | 1 |
| A60 SP105 | 1L |
| A60 SP102 | 2 |
| A60 SP106 | 2L |
| A60 SP103 | 3 |
| A60 SP104 | 4 |
DuaFit PIP implants, 17°6 items
| Ref. | Size |
|---|---|
| A60 SP171 | 1 |
| A60 SP175 | 1L |
| A60 SP172 | 2 |
| A60 SP176 | 2L |
| A60 SP173 | 3 |
| A60 SP174 | 4 |
Single-use instruments1 item
| Ref. | Description |
|---|---|
| A06 10401 | DuaFit 0°/10°/17° single-use instrument set: P1 and P2 canal shapers, holders for each angle, K-wire and handle |
Reusable instrument set8 items
| Ref. | Description |
|---|---|
| A06 10011 | Container |
| A06 00101 | 0° holder |
| A06 00091 | 10° holder |
| A06 00051 | 17° holder |
| A06 00061 | Distal impactor |
| A06 00071 | Proximal impactor |
| G01 00921 | K-wire holder |
| K20 NS100 | Kirschner wire, Ø 1.0 mm, 100 mm, two sharp tips, non-sterile |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the ConMed website or the instructions for use before ordering.
Product information
What is the implant made of?
PEEK-OPTIMA®, a radiolucent polymer, so the implant does not obscure the fusion site on X-ray.
Which angles are available?
0° (straight), 10° and 17°, each in six sizes (1, 1L, 2, 2L, 3 and 4).
Can the toe be pinned to the metatarsal?
Yes, with the 0° implant. It is cannulated, so a K-wire can be passed through it to pin the corrected phalanx temporarily to the metatarsal.
Is a surgical technique available?
Contact Lavender Medical for the surgical technique and instructions for use.
