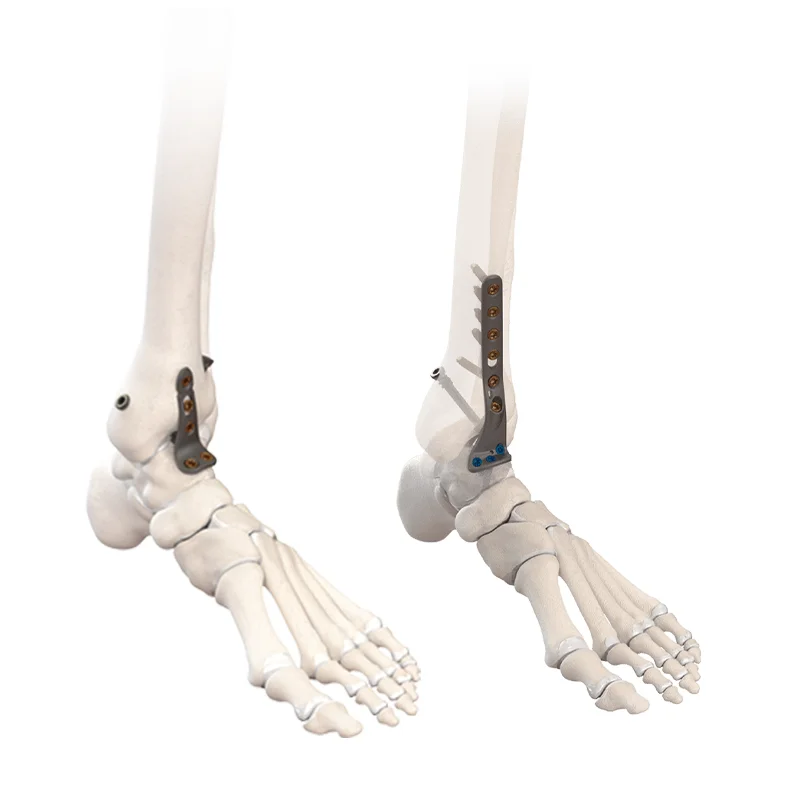

CoLink® NeoFuse is a set of anatomically contoured, low-profile locking plates for ankle arthrodesis. Side-specific anterior and anterolateral plates take 3.5 and 4.5 mm locking, non-locking and variable-angle locking screws, and a side-specific targeting guide positions an additional transverse CoLag® 6.7 mm compression screw outside the plate.

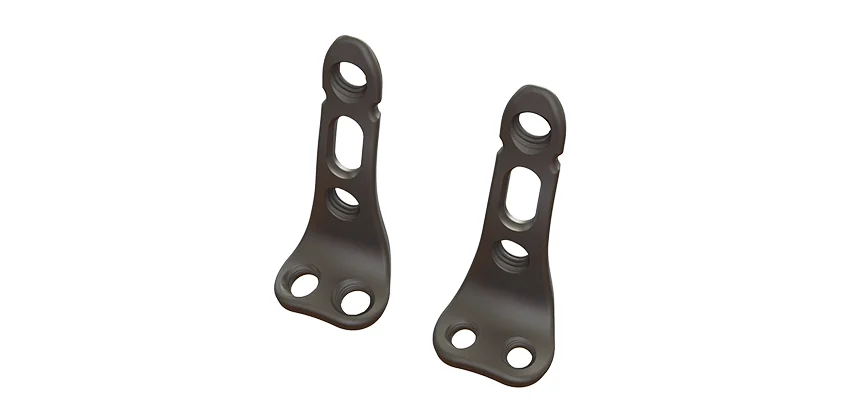

NeoFuse MIS plate configurations are also available: two symmetrical plates, with a symmetrical targeting guide for posterior transverse screws, and a dedicated MIS instrument tray.
Features
- Anatomically contoured low-profile plates

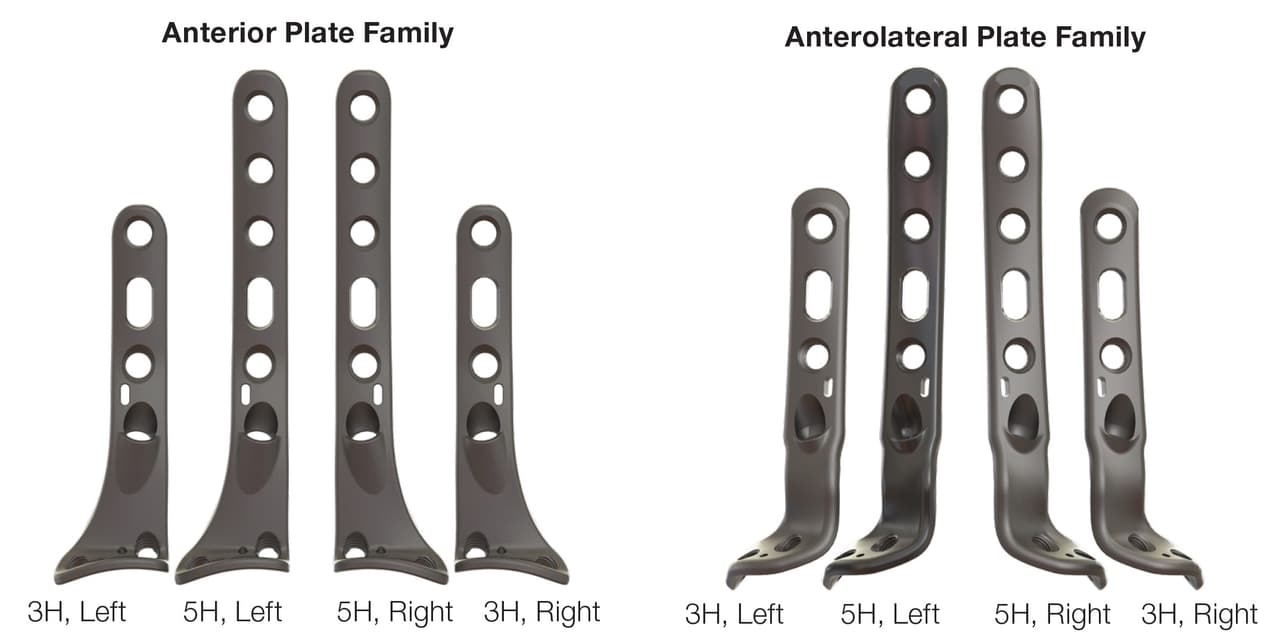

- Side-specific anterior and anterolateral plates, 3-hole and 5-hole

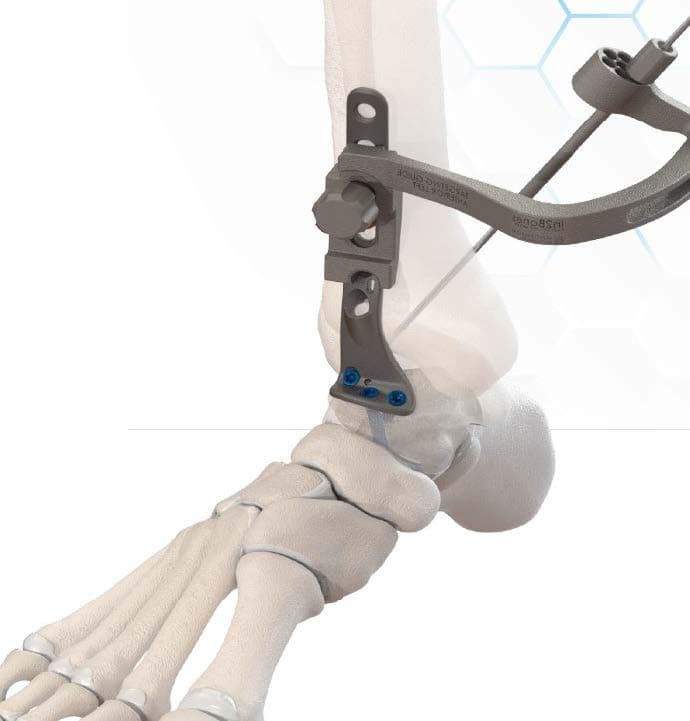

- Targeting guide for placement of the compression screw
- CoLag® 6.7 mm compression screw

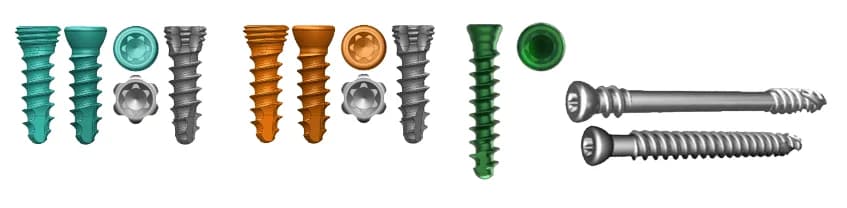

- 3.5 and 4.5 mm locking, non-locking and variable-angle locking screws, and 5.0 mm cancellous screws
- Variable-angle drill guides with 30° of variability
- Implants supplied sterile; reusable instrument tray with trial plates
Indications
Anterior fixation of ankle arthrodesis and fractures, including the distal tibia and talus. The addition of a compression screw through the tibiotalar joint (e.g. CoLag® 6.7 mm) is required for ankle fusion.
Contraindications
Bone, musculature, tendons or adjacent soft tissue compromised by disease, infection or prior implantation; skeletal immaturity; known metal allergy; diabetes; active infection in the joint.
See the instructions for use for full information.
Sizes and ordering
All implants are supplied sterile and screws are sold separately; the reusable instruments include trial plates. Codes are from CONMED's CE-market catalogue (2025).
CoLink® NeoFuse plates8 items
| Ref. | Description |
|---|---|
| P20 ST123 | Anterior plate, 3-hole, right |
| P20 ST125 | Anterior plate, 5-hole, right |
| P20 ST223 | Anterior plate, 3-hole, left |
| P20 ST225 | Anterior plate, 5-hole, left |
| P20 ST133 | Anterolateral plate, 3-hole, right |
| P20 ST135 | Anterolateral plate, 5-hole, right |
| P20 ST233 | Anterolateral plate, 3-hole, left |
| P20 ST235 | Anterolateral plate, 5-hole, left |
CoLink® NeoFuse MIS plates2 items
| Ref. | Description |
|---|---|
| P20 ST101 | NeoFuse MIS plate, standard |
| P20 ST201 | NeoFuse MIS plate, 3.5 mm talar holes |
CoLink® Afx screws, Ø 3.5 mm (T15): low-profile cortical, locking and variable-angle (VA) locking24 items
| Ref. cortical | Ref. locking | Ref. VA locking | Length |
|---|---|---|---|
| P73 ST010 | P73 ST110 | P73 ST210 | 10 mm |
| P73 ST012 | P73 ST112 | P73 ST212 | 12 mm |
| P73 ST014 | P73 ST114 | P73 ST214 | 14 mm |
| P73 ST016 | P73 ST116 | P73 ST216 | 16 mm |
| P73 ST018 | P73 ST118 | P73 ST218 | 18 mm |
| P73 ST020 | P73 ST120 | P73 ST220 | 20 mm |
| P73 ST022 | P73 ST122 | P73 ST222 | 22 mm |
| P73 ST024 | P73 ST124 | P73 ST224 | 24 mm |
| P73 ST026 | P73 ST126 | P73 ST226 | 26 mm |
| P73 ST028 | P73 ST128 | P73 ST228 | 28 mm |
| P73 ST030 | P73 ST130 | P73 ST230 | 30 mm |
| P73 ST032 | P73 ST132 | P73 ST232 | 32 mm |
| P73 ST034 | P73 ST134 | P73 ST234 | 34 mm |
| P73 ST036 | P73 ST136 | P73 ST236 | 36 mm |
| P73 ST038 | P73 ST138 | P73 ST238 | 38 mm |
| P73 ST040 | P73 ST140 | P73 ST240 | 40 mm |
| P73 ST042 | P73 ST142 | P73 ST242 | 42.5 mm |
| P73 ST045 | P73 ST145 | P73 ST245 | 45 mm |
| P73 ST047 | P73 ST147 | P73 ST247 | 47.5 mm |
| P73 ST050 | P73 ST150 | P73 ST250 | 50 mm |
| P73 ST052 | P73 ST152 | P73 ST252 | 52.5 mm |
| P73 ST055 | P73 ST155 | P73 ST255 | 55 mm |
| P73 ST057 | P73 ST157 | P73 ST257 | 57.5 mm |
| P73 ST060 | P73 ST160 | P73 ST260 | 60 mm |
CoLink® screws, Ø 4.5 mm (T20): non-locking, locking and variable-angle (VA) locking23 items
| Ref. non-locking | Ref. locking | Ref. VA locking | Length |
|---|---|---|---|
| V45 ST620 | V45 ST720 | V45 ST820 | 20 mm |
| V45 ST622 | V45 ST722 | V45 ST822 | 22 mm |
| V45 ST624 | V45 ST724 | V45 ST824 | 24 mm |
| V45 ST626 | V45 ST726 | V45 ST826 | 26 mm |
| V45 ST628 | V45 ST728 | V45 ST828 | 28 mm |
| V45 ST630 | V45 ST730 | V45 ST830 | 30 mm |
| V45 ST632 | V45 ST732 | V45 ST832 | 32 mm |
| V45 ST634 | V45 ST734 | V45 ST834 | 34 mm |
| V45 ST636 | V45 ST736 | V45 ST836 | 36 mm |
| V45 ST638 | V45 ST738 | V45 ST838 | 38 mm |
| V45 ST640 | V45 ST740 | V45 ST840 | 40 mm |
| V45 ST645 | V45 ST745 | V45 ST845 | 45 mm |
| V45 ST650 | V45 ST750 | V45 ST850 | 50 mm |
| V45 ST655 | V45 ST755 | V45 ST855 | 55 mm |
| V45 ST660 | V45 ST760 | V45 ST860 | 60 mm |
| V45 ST665 | – | – | 65 mm |
| V45 ST670 | – | – | 70 mm |
| V45 ST675 | – | – | 75 mm |
| V45 ST680 | – | – | 80 mm |
| V45 ST685 | – | – | 85 mm |
| V45 ST690 | – | – | 90 mm |
| V45 ST695 | – | – | 95 mm |
| V45 ST600 | – | – | 100 mm |

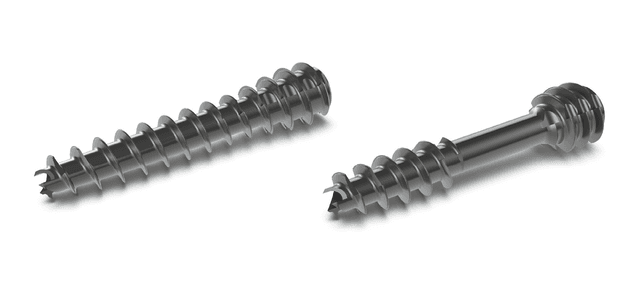

CoLag® compression screws, Ø 6.7 mm (T25)31 items
| Ref. compression | Ref. fully threaded | Length |
|---|---|---|
| P65 ST630 | P65 ST830 | 30 mm |
| P65 ST632 | P65 ST832 | 32 mm |
| P65 ST634 | P65 ST834 | 34 mm |
| P65 ST636 | P65 ST836 | 36 mm |
| P65 ST638 | P65 ST838 | 38 mm |
| P65 ST640 | P65 ST840 | 40 mm |
| P65 ST642 | P65 ST842 | 42.5 mm |
| P65 ST645 | P65 ST845 | 45 mm |
| P65 ST647 | P65 ST847 | 47.5 mm |
| P65 ST650 | P65 ST850 | 50 mm |
| P65 ST652 | P65 ST852 | 52.5 mm |
| P65 ST655 | P65 ST855 | 55 mm |
| P65 ST657 | P65 ST857 | 57.5 mm |
| P65 ST660 | P65 ST860 | 60 mm |
| P65 ST662 | P65 ST862 | 62.5 mm |
| P65 ST665 | P65 ST865 | 65 mm |
| P65 ST667 | P65 ST867 | 67.5 mm |
| P65 ST670 | P65 ST870 | 70 mm |
| P65 ST672 | P65 ST872 | 72.5 mm |
| P65 ST675 | P65 ST875 | 75 mm |
| P65 ST677 | P65 ST877 | 77.5 mm |
| P65 ST680 | P65 ST880 | 80 mm |
| P65 ST682 | P65 ST882 | 82.5 mm |
| P65 ST685 | P65 ST885 | 85 mm |
| P65 ST687 | P65 ST887 | 87.5 mm |
| P65 ST690 | P65 ST890 | 90 mm |
| P65 ST695 | P65 ST895 | 95 mm |
| P65 ST700 | P65 ST900 | 100 mm |
| P65 ST705 | P65 ST905 | 105 mm |
| P65 ST710 | P65 ST910 | 110 mm |
| P65 ST715 | P65 ST915 | 115 mm |
CoLink® cancellous screws, Ø 5.0 mm (T20)18 items
| Ref. | Length |
|---|---|
| V50 ST016 | 16 mm |
| V50 ST018 | 18 mm |
| V50 ST020 | 20 mm |
| V50 ST022 | 22 mm |
| V50 ST024 | 24 mm |
| V50 ST026 | 26 mm |
| V50 ST028 | 28 mm |
| V50 ST030 | 30 mm |
| V50 ST032 | 32 mm |
| V50 ST034 | 34 mm |
| V50 ST036 | 36 mm |
| V50 ST038 | 38 mm |
| V50 ST040 | 40 mm |
| V50 ST045 | 45 mm |
| V50 ST050 | 50 mm |
| V50 ST055 | 55 mm |
| V50 ST060 | 60 mm |
| V50 ST065 | 65 mm |

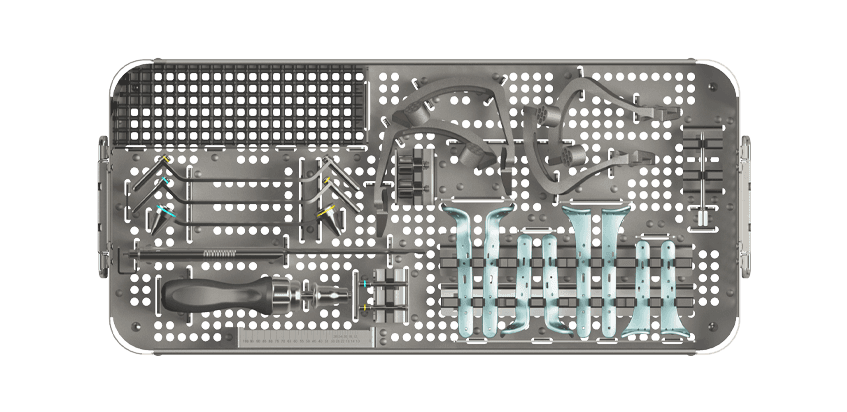

Standard instrument tray21 items
| Ref. | Description |
|---|---|
| P02 N0051 | Transverse Drill Guide, 4.5 Screws, Assembly |
| P02 N0031 | NL Drill Guide, 2.5, 3.2 Assembly |
| P02 N0021 | Variable Drill Guide, 2.5, 3.2 Assembly |
| P02 N0041 | Screw Depth Gauge, 0-100mm |
| P04 N0063 | Ratcheting Handle, AO, QC |
| P07 N0011 | Afx, Locking Drill Guide 2.5 |
| P02 N0011 | Ankle Fusion Locking Drill Guide 3.2 |
| P02 N0101 | Targeting Guide, Screws |
| P02 N0081 | Targeting Guide, Anterolateral, Right |
| P02 N0091 | Targeting Guide, Anterolateral, Left |
| P02 N0061 | Targeting Guide, Anterior, Right |
| P02 N0071 | Targeting Guide, Anterior, Left |
| P02 N1201 | Anterolateral Plate, 5H, Right, Trial |
| P02 N1202 | Anterolateral Plate, 5H, Left, Trial |
| P02 N1204 | Anterolateral Plate, 3H, Left, Trial |
| P02 N1203 | Anterolateral Plate, 3H, Right, Trial |
| P02 N1101 | Anterior Plate, 5H, Right, Trial |
| P02 N1102 | Anterior Plate, 5H, Left, Trial |
| P02 N1104 | Anterior Plate, 3H, Left, Trial |
| P02 N1103 | Anterior Plate, 3H, Right, Trial |
| P02 N0111 | Targeting Guide, K-Wire Guide |
MIS instrument tray5 items
| Ref. | Description |
|---|---|
| P02 N0002 | CoLink NeoFuse MIS instrument tray |
| P02 N0171 | MIS plate targeting guide |
| P02 N0221 | Guide screw |
| P02 N0231 | K-wire guide |
| P02 N1301 | MIS plate trial |
Sterile-packaged single-use instruments7 items
| Ref. | Description |
|---|---|
| P06 S2292 | K-Wire, Single Trocar 2.0mm x 228.6mm, 2 Pack |
| P02 S0131 | Olive Wire, 1.6mm x 61mm |
| P02 S0161 | 4.5x120mm Drill |
| P02 S0141 | 3.2x130mm Drill |
| P07 S0031 | 2.5x60mm Drill |
| P02 S0151 | T20 Driver, AO |
| P07 S0041 | T15 Driver, AO |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the ConMed website or the instructions for use before ordering.
Surgical Technique & Brochures
Used in
Related Products
CoLink® Bone Graft Harvester
Sterile, single-use, pre-assembled harvester that morselises cancellous bone graft, in 6 and 8 mm diameters, driven by a power reamer.
View product

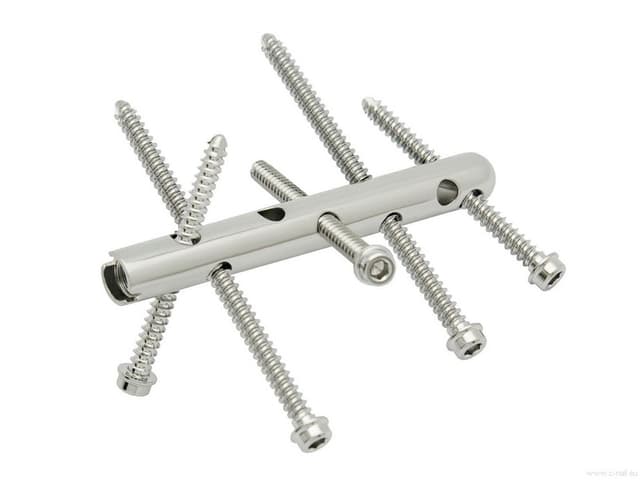

C-NAIL – Intraarticular Calcaneal Fixation
