The Stylo Diabetic Foot fixator is a lightweight external fixator for the medial column of the foot, supplied as a single-use sterile kit with the fixator rod, clamps and screws needed for the procedure. A 120° arch and further accessories allow multiplanar constructs.
Features
- Single-use sterile kit, ready to use.
- Modular, with accessories for different configurations.
- Aluminium and steel alloy construction.
- MR conditional (see the instructions for use).
- Self-drilling screws Ø 2.5 and 3.0 mm in several lengths, and threaded wires.
Indications
Stabilisation of the medial column of the first ray after surgical treatment of metatarsophalangeal osteomyelitis, and in deformities secondary to Charcot neuro-osteoarthropathy (Frykberg–Sanders patterns 1–2).
See the instructions for use for contraindications.
Components

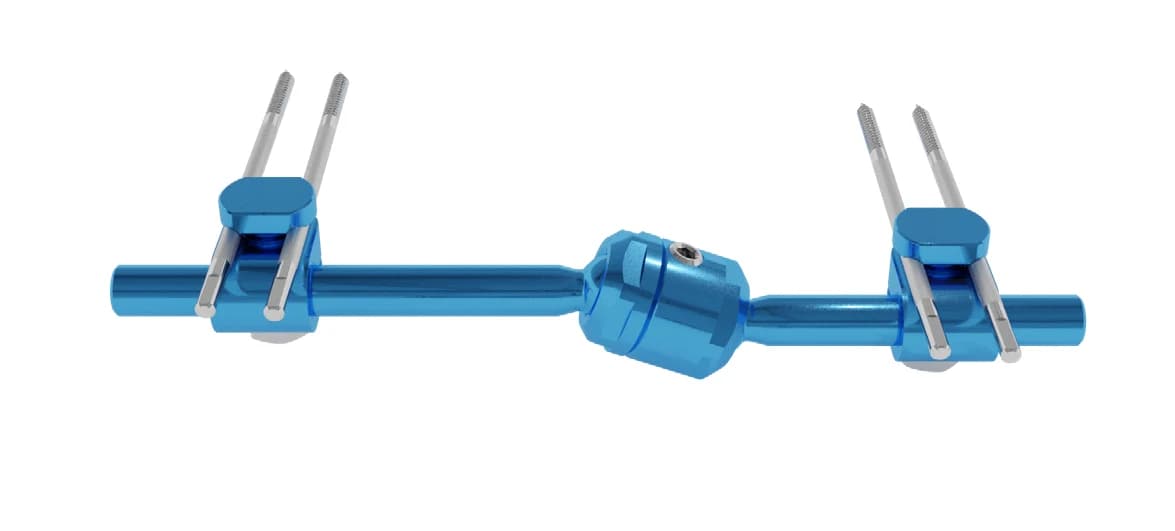

- Fixator rod: the ball joint eases application and allows movement in all planes.
- Double screw clamp: applies a pair of parallel screws; tightening the nut locks the screws in the clamp and the clamp on the rod.
- Additional screws and/or K-wires (1.5 to 3.0 mm) connect to the rod with accessories.

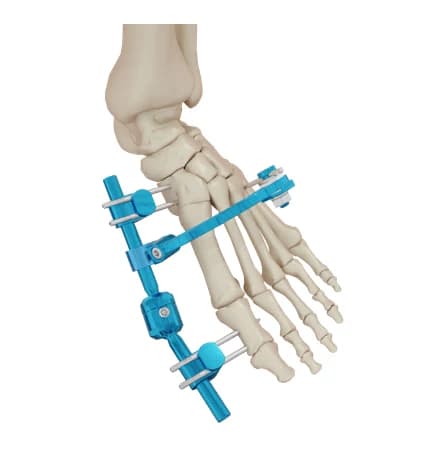

- Multiplanar system: a 120° arch (Ø 90 mm) takes an additional screw in the fourth metatarsal for extra stability.
Sterilisation
The kit is supplied sterile. Reusable instruments: saturated-steam autoclave at 134 °C for 5 minutes.
Sizes and ordering
For availability, kit contents or a quote, use Enquire above or call us.
Kits2 items
| Ref. | Description |
|---|---|

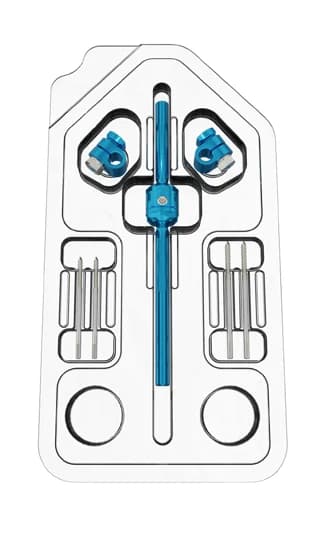

| 5002001ASTA | Stylo Diabetic Foot kit (sterile): fixator rod, two screw clamps, two screws Ø 3.0 × 70 mm and two screws Ø 2.5 × 60 mm (thread L 12 mm) |
| 5002001AST | Stylo Diabetic Foot Plus kit (sterile): fixator rod, two Stylo clamps, four screws, 120° arch, arch clamp and single open coupling clamp |
Components and accessories19 items
| Ref. | Description |
|---|---|
| 5002010ST | Single clamp |
| 5002010AST | Stylo single open clamp |
| 5002011ST | Dual extended clamp |
| 5002016ST | Ø 90 mm 120° arch |
| 5002016CST | Arch support 120° Ø 90 mm with integrated clamp |
| 5002015ST | Stylo rail connector |
| 5000004ST | Single clamp for bridge connector |
| 5002006ST | Extension bar 20 mm |
| 5002007ST | Extension bar 40 mm |
| 5002008ST | Extension bar 60 mm |
| 5002401ST | Self-drilling screw Ø 3.0x60 mm, thread L 20 mm |
| 5002402ST | Self-drilling screw Ø 3.0x70 mm, thread L 20 mm |
| 5002403ST | Self-drilling screw Ø 3.0x80 mm, thread L 20 mm |
| 5002404ST | Self-drilling screw Ø 3.0x90 mm, thread L 20 mm |
| 5002411ST | Self-drilling screw Ø 2.5x50 mm, thread L 12 mm |
| 5002412ST | Self-drilling screw Ø 2.5x60 mm, thread L 12 mm |
| 5002413ST | Self-drilling screw Ø 2.5x70 mm, thread L 12 mm |
| 5002414ST | Self-drilling screw Ø 2.5x80 mm, thread L 12 mm |
| 5002431ST | Threaded wire Ø 1.5x100 mm, thread L 4.0 mm |
Instruments13 items
| Ref. | Description |
|---|---|
| 5002297 | Stylo Diabetic Foot instrument sterilization case |
| 5002056 | Screw extension |
| 5000130 | Guide cannula Ø 3.0 mm |
| 5002070 | Dual rail cannula, Ø 3.0 mm |
| 5000214 | T-wrench Ø 10 mm |
| 5000124 | Hex screwdriver Ø 3.0 mm |
| 5000625 | T-wrench for 3.0 mm and 5.0 mm hexagonal screws |
| 5002290 | Empty sterilization case |
| 5002000SSTB | ClickIt Stylo Diabetic Foot instrument kit |
| 5002070M | Double drill guide Ø 3.0 mm, 10 mm spacing - single use |
| 5000211M | Cross key for screws Ø 2.0-3.0 mm - single use |
| 5006000M | 3.0 mm L-Hex Wrench - single use |
| 5000623M | 10 mm flat key - single use |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the Mikai website or the instructions for use before ordering.
