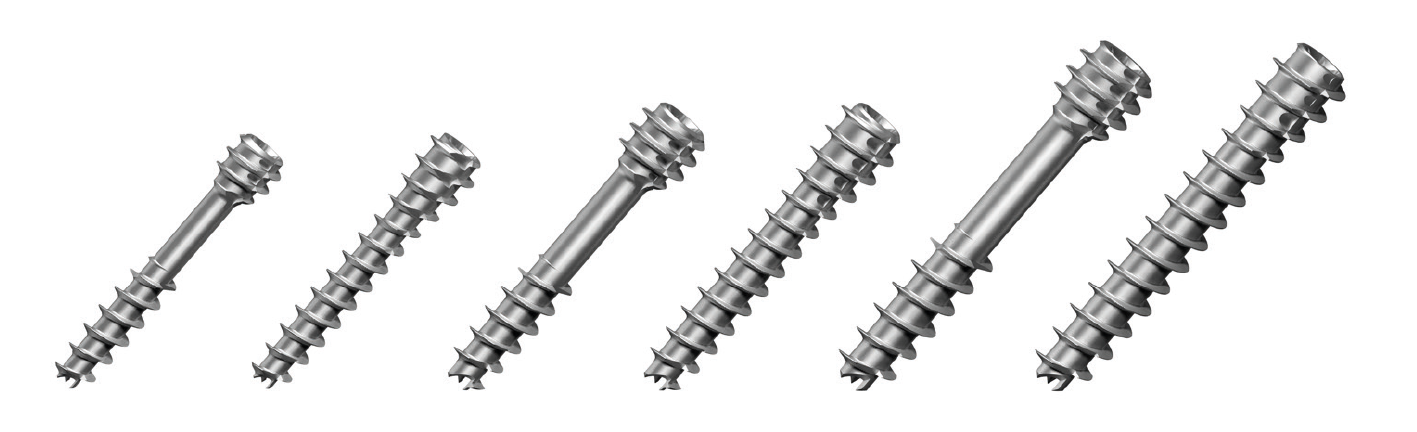

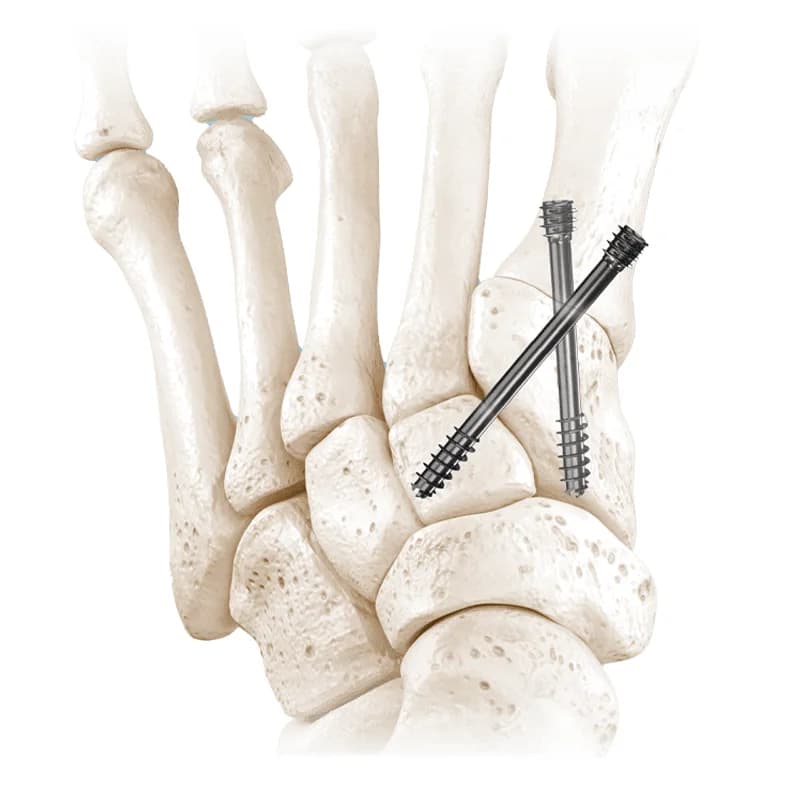

I.B.S.™ compression screws are cannulated, self-drilling, self-tapping compression and fully threaded (neutralisation) screws in titanium alloy (Ti6Al4V) for the midfoot and hindfoot. This page covers the 4.5 mm, 6.5 mm and 8.0 mm diameters, used with reusable instrument sets; the 2.0 to 3.5 mm screws are used with NeoSys® single-use instruments. The screws are supplied sterile in a tube.
Features
- Wide and narrow thread shape, designed for bite and penetration in cortical bone
- Torx drive (T15, T25 and T30), designed to take higher torque without damage to the drive
- Angled distal cutting flutes for self-drilling and self-tapping insertion

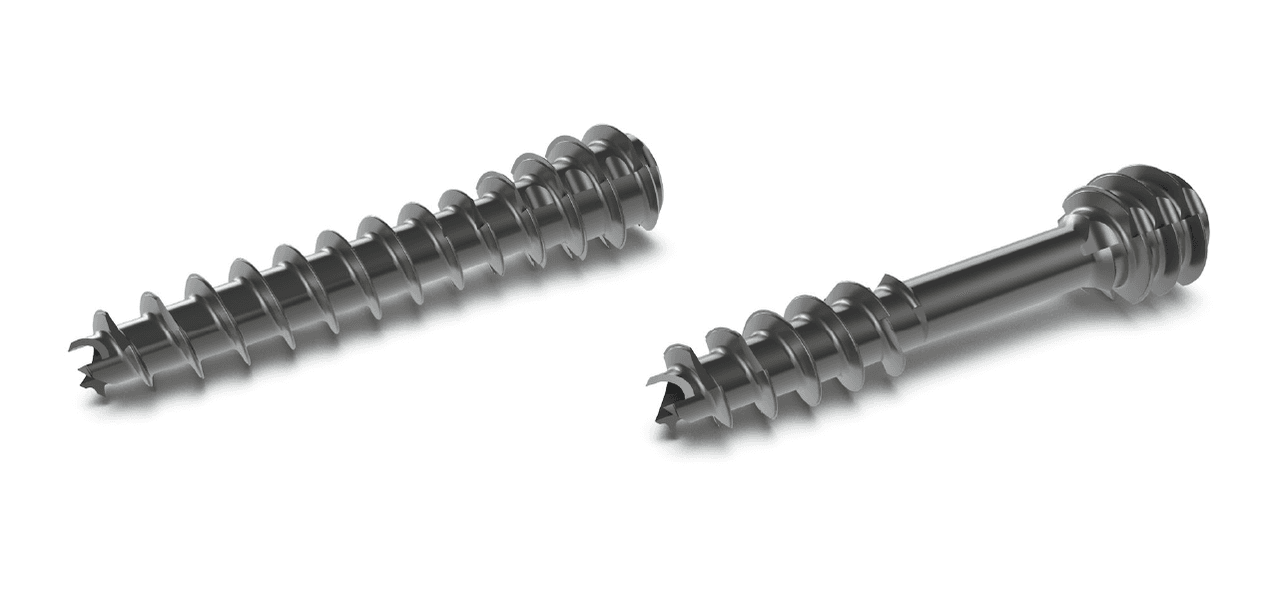

- Conical head profile on the fully threaded screws, so final tightening can be felt
- Titanium alloy Ti6Al4V; 4.5 mm, 6.5 mm and 8.0 mm diameters; delivered in a sterile tube
- The 6.5 mm compression screws are available in two versions: 15 mm distal thread (C) and 30 mm distal thread (C+)
Sizes and ordering
Implants are titanium alloy, supplied sterile. Codes are from CONMED's CE-market catalogue (2025).
I.B.S.™ screws, Ø 4.5 mm (T15), titanium, sterile23 items
| Ref. compression | Ref. fully threaded | Length |
|---|---|---|
| S45 ST120 | S45 ST220 | 20 mm |
| S45 ST122 | S45 ST222 | 22 mm |
| S45 ST124 | S45 ST224 | 24 mm |
| S45 ST125 | S45 ST225 | 25 mm |
| S45 ST126 | S45 ST226 | 26 mm |
| S45 ST128 | S45 ST228 | 28 mm |
| S45 ST130 | S45 ST230 | 30 mm |
| S45 ST132 | S45 ST232 | 32 mm |
| S45 ST134 | S45 ST234 | 34 mm |
| S45 ST135 | S45 ST235 | 35 mm |
| S45 ST136 | S45 ST236 | 36 mm |
| S45 ST138 | S45 ST238 | 38 mm |
| S45 ST140 | S45 ST240 | 40 mm |
| S45 ST142 | S45 ST242 | 42 mm |
| S45 ST144 | S45 ST244 | 44 mm |
| S45 ST145 | S45 ST245 | 45 mm |
| S45 ST146 | S45 ST246 | 46 mm |
| S45 ST148 | S45 ST248 | 48 mm |
| S45 ST150 | S45 ST250 | 50 mm |
| S45 ST155 | S45 ST255 | 55 mm |
| S45 ST160 | S45 ST260 | 60 mm |
| S45 ST165 | S45 ST265 | 65 mm |
| S45 ST170 | S45 ST270 | 70 mm |
I.B.S.™ screws, Ø 6.5 mm (T25), titanium, sterile17 items
| Ref. compression | Ref. fully threaded | Length |
|---|---|---|
| S65 ST120 | S65 ST220 | 20 mm |
| S65 ST125 | S65 ST225 | 25 mm |
| S65 ST130 | S65 ST230 | 30 mm |
| S65 ST135 | S65 ST235 | 35 mm |
| S65 ST140 | S65 ST240 | 40 mm |
| S65 ST145 | S65 ST245 | 45 mm |
| S65 ST150 | S65 ST250 | 50 mm |
| S65 ST155 | S65 ST255 | 55 mm |
| S65 ST160 | S65 ST260 | 60 mm |
| S65 ST165 | S65 ST265 | 65 mm |
| S65 ST170 | S65 ST270 | 70 mm |
| S65 ST175 | S65 ST275 | 75 mm |
| S65 ST180 | S65 ST280 | 80 mm |
| S65 ST185 | S65 ST285 | 85 mm |
| S65 ST190 | S65 ST290 | 90 mm |
| S65 ST195 | S65 ST295 | 95 mm |
| S65 ST300 | S65 ST400 | 100 mm |
I.B.S.™ C+ compression screws, Ø 6.5 mm (30 mm distal thread), titanium, sterile9 items
| Ref. | Length |
|---|---|
| S65 ST560 | 60 mm |
| S65 ST565 | 65 mm |
| S65 ST570 | 70 mm |
| S65 ST575 | 75 mm |
| S65 ST580 | 80 mm |
| S65 ST585 | 85 mm |
| S65 ST590 | 90 mm |
| S65 ST595 | 95 mm |
| S65 ST600 | 100 mm |
I.B.S.™ screws, Ø 8.0 mm (T30), titanium, sterile13 items
| Ref. compression | Ref. fully threaded | Length |
|---|---|---|
| S80 ST140 | S80 ST240 | 40 mm |
| S80 ST145 | S80 ST245 | 45 mm |
| S80 ST150 | S80 ST250 | 50 mm |
| S80 ST155 | S80 ST255 | 55 mm |
| S80 ST160 | S80 ST260 | 60 mm |
| S80 ST165 | S80 ST265 | 65 mm |
| S80 ST170 | S80 ST270 | 70 mm |
| S80 ST175 | S80 ST275 | 75 mm |
| S80 ST180 | S80 ST280 | 80 mm |
| S80 ST185 | S80 ST285 | 85 mm |
| S80 ST190 | S80 ST290 | 90 mm |
| S80 ST195 | S80 ST295 | 95 mm |
| S80 ST300 | S80 ST400 | 100 mm |

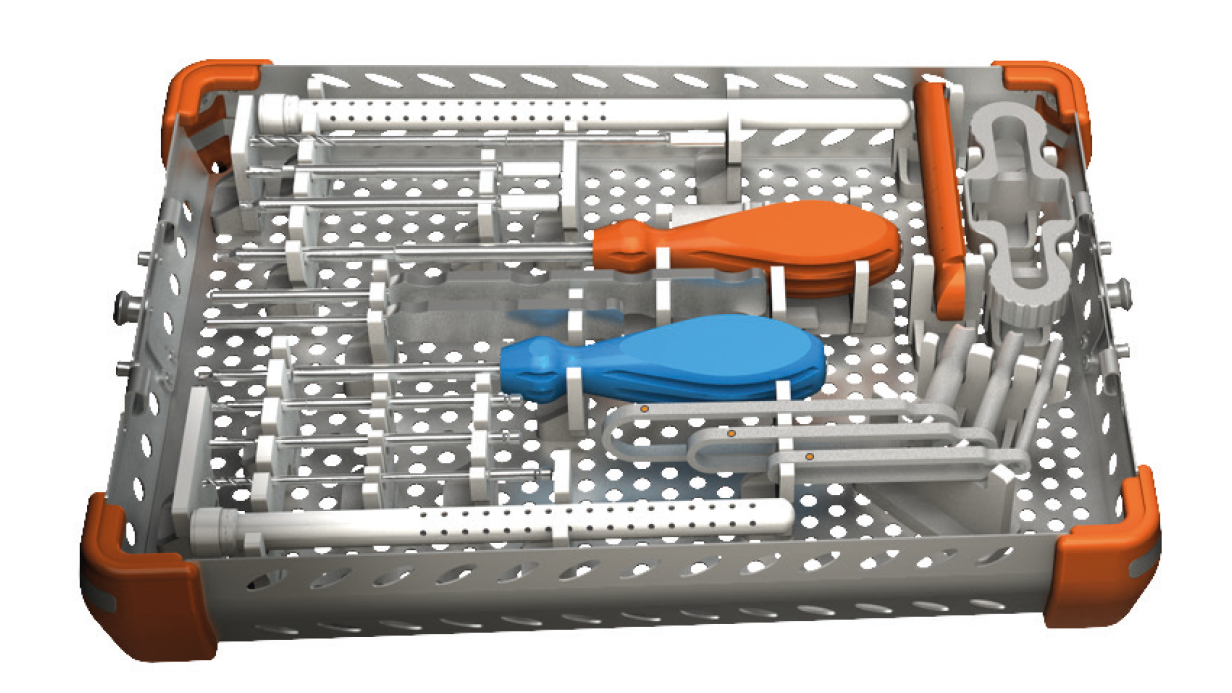

Reusable instrument set, Ø 4.5 mm8 items
| Ref. | Description |
|---|---|
| G01 00531 | Cannulated step drill S45 |
| G01 00091 | Cannulated drill S45 |
| G01 00171 | Measurer S45 |
| G01 00361 | Screwdriver Tip T15 - AO Quick coupling |
| G01 00331 | Cannulated screwdriver T15 |
| G01 01391 | Handle Transformer |
| G01 70011 | Stainless steel container S45 |
| K10 NS150 | K-Wire Diam 1,6mm Length 150mm 1 Sharp Tip |
Reusable instrument set, Ø 6.5 mm12 items
| Ref. | Description |
|---|---|
| G01 00031 | Cannulated step drill S65 |
| G01 01181 | Cannulated drill S65 |
| G01 00181 | Measurer S65-80 |
| G01 00381 | Screwdriver tip T25 - AO Quick coupling |
| G01 00411 | Cannulated screwdriver T25 |
| G01 01391 | Handle transformer T25 |
| G01 01251 | K-wire-guide S65 |
| G01 01261 | Drill guide S65 |
| G01 01271 | Protection sleeve S65 |
| G01 01281 | Guide wire matrix S65 |
| G01 80011 | Stainless steel container S65 |
| K10 NS220 | K-Wire Diam 2,0mm Length 200mm 1 Sharp tip |
Reusable instrument set, Ø 8.0 mm12 items
| Ref. | Description |
|---|---|
| G01 00141 | Cannulated step drill S80 |
| G01 00131 | Cannulated drill S80 |
| G01 00181 | Measurer S65-80 |
| G01 00371 | Screwdriver tip T30 - Quick coupling |
| G01 00421 | Screwdriver T30 |
| G01 01401 | Handle transformer T30 |
| G01 01291 | K-wire-guide S80 |
| G01 01301 | Drill Guide S80 |
| G01 01311 | Protection sleeve S80 |
| G01 01321 | Guide wire matrix S80 |
| G01 90011 | Stainless steel container S80 |
| K10 NS200 | K-Wire Diam 2,5mm Length 200mm 1 Sharp Tip |
Combined reusable instrument set, Ø 4.5 and 6.5 mm19 items
| Ref. | Description |
|---|---|
| G01 00091 | Drill diam 3.0mm AO attachment cannulated no sterile Lg.110mm |
| G01 00171 | 150mm kwire measurer diam 1.6mm |
| G01 00361 | Screwdriver T15 axis cannulated kwire 1.6mm tri-p shank |
| G01 00331 | Screwdriver T15 torx cannulated kwire 1.6mm |
| G01 00031 | Drill 2in1 diam4.3/5.8 Lg.120 no sterile cannulated 2.0mm |
| G01 01181 | Drill diam 4.3mm Lg.203mm no sterile cannulated 2.0mm |
| G01 00181 | 200mm kwire measurer diam 2.0 /2.5mm |
| G01 00381 | Screwdriver T25 axis cannulated kwire 2.0mm tri-plane shank |
| G01 00411 | Screwdriver T25 torx - cannulated kwire 2.0mm |
| G01 01391 | Medium "T" handle for medium screwdriver |
| G01 01251 | Internal protection sleeve for kwire 2.5mm |
| G01 01261 | Medial protection sleeve for drill diam 5.0mm |
| G01 01271 | External protection sleeve for screw diam 6.5mm |
| G01 01681 | Small hudson adapter |
| G01 01281 | Guide matrix kwire 2.0mm |
| G01 85011 | NeoSys container S45 -S65 328 x 232 x 45 |
| K10 NS220 | K-wire no sterile diam 2.0mm Lg. 200mm 1 sharp tip |
| G01 00531 | 2in1 drill diam3.0/4.0 Lg.100mm no sterile cannulated 1.6mm |
| K10 NS150 | K-wire no sterile diam 1.6mm Lg. 150mm 1 sharp tip |
Combined reusable instrument set, Ø 6.5 and 8.0 mm22 items
| Ref. | Description |
|---|---|
| G01 00141 | 2in1 drill diam5.5/7.0 Lg.130 no sterile cannulated 2.5mm |
| G01 00131 | Drill diam 5.5mm Lg.205mm no sterile cannulated 2.5mm |
| G01 00371 | Screwdriver T30 axis cannulated kwire 2.5mm tri-plane shank |
| G01 00421 | Screwdriver T30 torx - cannulated kwire 2.5mm |
| G01 01401 | Large "T" handle for large screwdriver |
| G01 01291 | Internal protection sleeve for kwire 2.5mm |
| G01 01301 | Medial protection sleeve for drill diam 6.0mm |
| G01 01311 | External protection sleeve for screw diam 8.0mm |
| G01 01321 | Guide matrix kwire 2.5mm |
| K10 NS220 | K-wire no sterile diam 2.0mm Lg. 200mm 1 sharp tip |
| G01 00031 | Drill 2in1 diam 4.3/5.8 Lg.120mm no sterile cannulated 2.0mm |
| G01 01181 | Drill diam 4.3mm Lg.203mm no sterile cannulated 2.0mm |
| G01 00181 | 200mm kwire measurer diam 2.0 /2.5mm |
| G01 00381 | Screwdriver T25 axis cannulated kwire 2.0mm tri-plane shank |
| G01 00411 | Screwdriver T25 torx - cannulated kwire 2.0mm |
| G01 01391 | Medium "T" handle for medium screwdriver |
| G01 01251 | Internal protection sleeve for kwire 2.5mm |
| G01 01261 | Medial protection sleeve for drill diam 5.0mm |
| G01 01271 | External protection sleeve for screw diam 6.5mm |
| G01 01281 | Guide matrix kwire 2.0mm |
| G01 95011 | NeoSys container s65-s80 328 x 232 x 45 |
| K10 NS200 | K-wire no sterile diam 2.5mm Lg. 200mm 1 sharp tip |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the ConMed website or the instructions for use before ordering.
