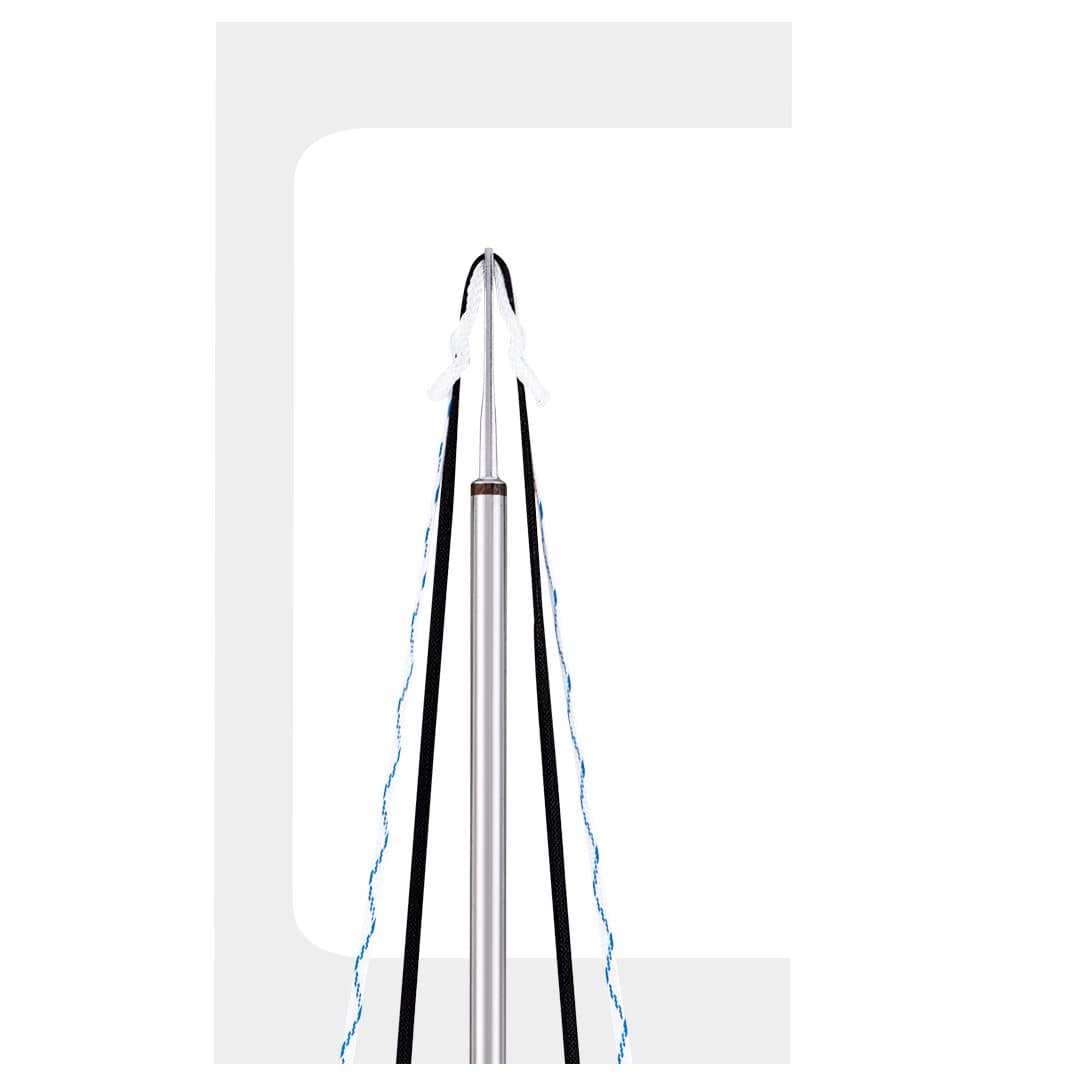

FIBERKNOT® Ligament Anchors (Dia. 2.9mm)

VIMFIX-PK® is a fully threaded suture anchor featuring dual Biofiber to maximize cortical and cancellous fixation, has a covered saddle tip to protect the sutures and is cannulated to channel growth factors. These anchors are manufactured with PEEK material which is a thermoplastic material with excellent biocompatibility and biostability characteristics. Clinical Used for Primary or Medial Row Fixation. Fully threaded; Cancellous and cortical threads provide exceptional fixation strength. Available in 4.5mm and 5.5mm diameters with double & triple loaded options with fiber & fiber tape combination for greater footprint contact pressure on cuff. The average pullout strength of VIMFIX-PK® ranges from 334.8 N* to 357.5 N*. Anchor Dimensions: Dia. 4.5mm x Len. 17.0mm; Dia. 5.5mm x Len. 17.0mm Type: Screw-in anchor

MINI-VIM PK® Ligament anchor is available in diameters of 2.8mm and 3.5mm. It is a non-absorbable PEEK suture anchor with a material eyelet which provides superior abrasion resistance due to PEEK’s low coefficient friction. The knotless technology of MINI-VIM PK® Ligament anchor provides a step-saving alternative to conventional “knotted” suture anchors and eliminates “knot stacks” associated with soft tissue irritation. The average pull-out strength of MINI-VIM PK® 2.8mm ligament anchor is 228.6 N* Anchor Dimensions: Dia. 2.8mm x Len. 12.0mm

MINI-VIM® Ligament anchors are titanium anchors available in 2.8mm and 3.5mm diameters and come preloaded with USP #2 suture. Ideal for SLAP and subscapularis repairs where a small stab incision and percutaneous delivery of the implant is preferred It’s a self-drilling anchor. A drill bit is available for use in hard bone, if desired. The average pull-out strength of MINI-VIM® 2.8mm ligament anchor is 129N* and MINI-VIM® 3.5mm ligament anchor is 135.8N*. Also available in needled version for mini open procedures. Anchor Dimensions: Dia. 2.8mm x Len. 11.5mm and Dia.3.5mm x Len. 11.5mm.

MINI-VIM PK® Ligament anchor is a non-absorbable PEEK suture anchor with a material eyelet that provides superior abrasion resistance due to PEEK’s low coefficient of friction. Anchor insertion and delivery are made simple by drilling through a spear and inserting the anchor through the same spear into the drilled hole. It is available in 3 size options, Dia. 2.8mm (single loaded), Dia. 3.0mm (double loaded) & Dia. 3.5mm (double loaded). Dia. 3.0mm is also available with a needle option for mini open procedures. The average pull-out strength of MINI-VIM PK® 2.8mm ligament anchor is 221.0 N*, MINI-VIM® II PK 3.0mm ligament anchor is 127.1 N* & MINI-VIM ® II PK 3.5mm ligament anchor is 368.8 N*. Anchor Dimensions: Dia. 2.8mm x Len. 15.0mm; Dia. 3.0mm x Len. 12.0mm; Dia. 3.5mm x Len. 12.0mm Type: Tap-in / Bang-on anchor
