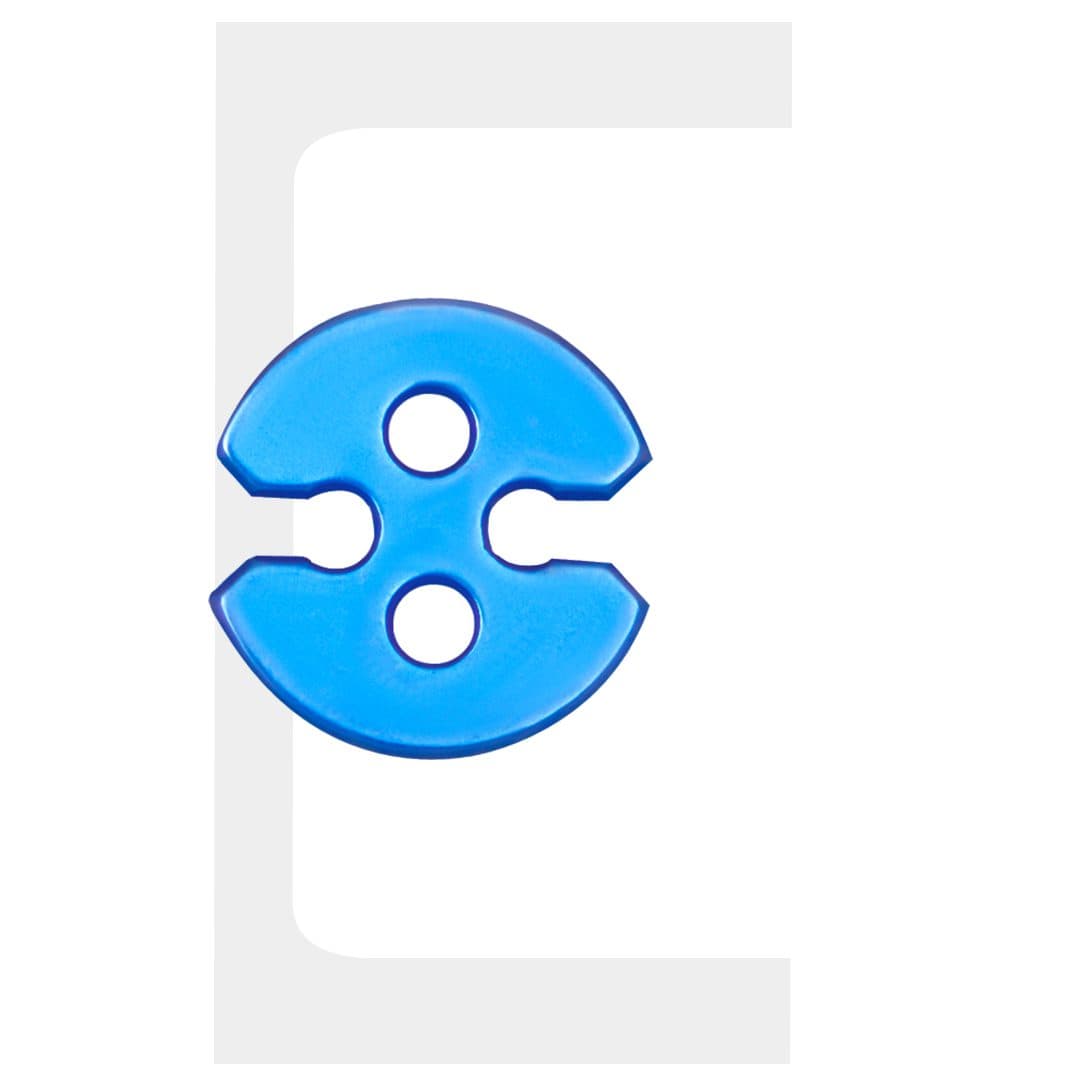

PIVOT-FIX™

Low profile design Ideal for All Inside ACL Reconstruction Tapered button which easily fits on the tibia side Cutting edges on the both sides of the button helps easy passing and sliding of the sutures

The BIOCINCH® AI2 Meniscal Repair System provides a strong 360º technique for meniscal repair. The limitations of the inside-out and outside-in repair techniques, and the need for intra-articular knot tying are eliminated in this system. The system gives the surgeon the possibilities of placing horizontal or vertical mattress sutures on the femoral or tibial surfaces of the meniscus, and greatly reducing risk to the posterior neurovascular tissues. Eliminates the need for a posterior incision and dissection Allows access to tears in the posterior and middle thirds of the meniscus Deployment of anchors made very easy, efficient and hassle-free Penetration depth of needle is controlled Low-profile and sturdy needle shaft Constructed with a functional, ergonomic, user-friendly handle Equipped with 360° rotating slider that makes a clicking sound upon deployment of the anchors Available in curved, straight and reverse curved needle tip options with laser marking on needle tip Two 1.4 X 5mm PEEK anchors with a pretied, self-sliding knot constructed by 2-0, non-absorbable UHMWPE Biofiber® Needle Dia. 1.8mm

BIOCINCH® Meniscal repair set comprises of two straight meniscal repair needles preloaded with USP size 2-0 or 0 suture. Meniscal repair needles are made of stainless steel, and are ultrathin and strong, yet flexible for easy passage through guide sleeves. The suture is made of UHMWPE material provides ultra-high strength.

The staple fixation system provides a simple means of attaching tissue to bone. Low-profile, wide staple base provides better load distribution. Spike-post leg design encourages uninterrupted vascular flow to the underlying tissue. Two pronged implant for superior pull out strength. Fixation staples are available in two sizes. Sharp leg points for easier penetration into cortical bone. Material-Titanium alloy.

Low profile design Ideal for All Inside ACL Reconstruction Tapered button which easily fits on the tibia side Cutting edges on the both sides of the button helps easy passing and sliding of the sutures.

It is the upgraded version of tibial base plate. It may be used for tibial fixation of the graft in Cruciate reconstruction technique (All Inside ACL reconstruction technique) The two cutting edges of button helps in holding and twisting to further tense the graft. The serration provided on the bottom side helps to lock the button on the tibial cortex. It is available in two sizes – Medium and Large. Medium size can be used with the tunnel dia. of 7 and 8mm. Large size can be used with the tunnel dia. of 9, 10 and 11mm.

Specifically designed for endoscopic femoral fixation where graft protection is needed. Polished, fully radiused threads provide maximum graft protection. Wide-bore cannulation for easy guide wire insertion and removal. The Taper-Tip style offers sharper initiating threads and a more pronounced taper for faster, easier insertion. Designed to reduce the possibility of bone plug migration during placement. Round head reduces possibility of graft damage during or after implantation. Universal screw for either tibial or femoral applications. Standard 4.5mm hex for easy insertion and removal. Cannulated for use with a guide wire. Material -Titanium alloy.
