MINI-VIM PK® is a non-absorbable PEEK (polyetheretherketone) suture anchor with a PEEK eyelet, which resists suture abrasion. It is tapped in after drilling through a spear or sleeve, and comes in knotted and knotless versions.
Knotless
The knotless anchor tensions and locks the repair without tying, avoiding knot stacks.
| Diameter | Length | Applications |
|---|---|---|
| 2.8 mm | 12 mm | Shoulder (SLAP and Bankart repair), elbow; long inserter with spear, trocar and drill for hip arthroscopy |
| 3.5 mm | 12 mm | Shoulder, elbow |
Knotted
| Diameter | Loading | Length | Applications |
|---|---|---|---|
| 2.8 mm | Single loaded | 15 mm | Shoulder; hip arthroscopy |
| 3.0 mm | Double loaded, suture and tape; needle option | 12 mm | Shoulder (mini-open); foot and ankle soft-tissue fixation |
| 3.5 mm | Double loaded | 12 mm | Shoulder |
Average pull-out strength (manufacturer data): 2.8 mm knotted 221.0 N, 2.8 mm knotless 228.6 N, 3.0 mm 127.1 N, 3.5 mm knotted 368.8 N.

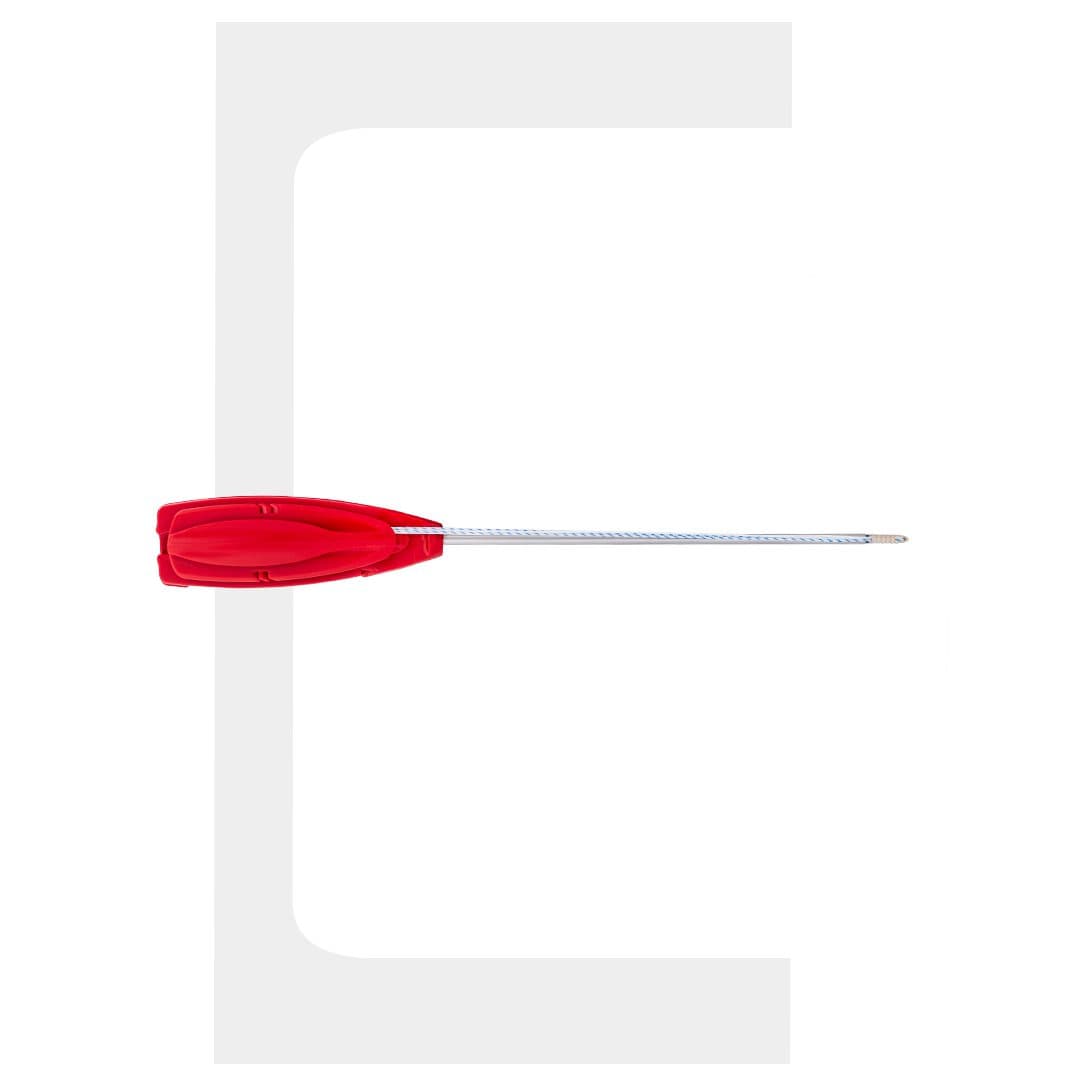

MINI-VIM PK® knotted anchor
MINI-VIM PK® knotless anchor
