OsteoSinter® EVANS and COTTON wedges

Overview

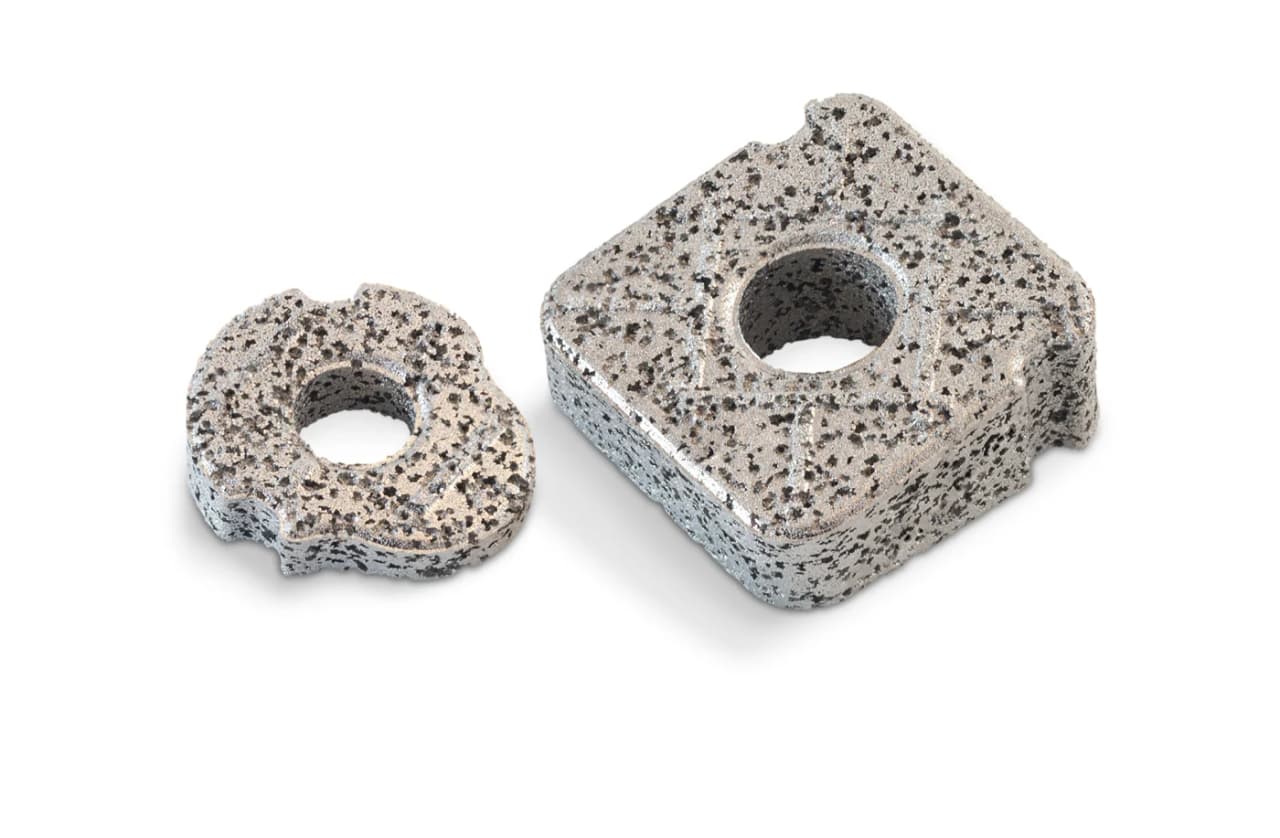

OsteoSinter® EVANS and COTTON wedges are porous titanium implants for Evans osteotomy (lateral column lengthening) and Cotton osteotomy (opening wedge of the medial cuneiform, to improve the inclination of the first ray and avoid overloading the lateral column) in the correction of adult-acquired flatfoot. Eighteen wedge sizes allow the correction to be matched to the osteotomy.

The OsteoSinter® material is biocompatible commercially pure titanium made by powder metallurgy, with 62–66 % interconnected porosity by volume. Each wedge is supplied individually packed in a blister and sterilised by gamma radiation, and is placed with a sterile single-use instrument kit made of polyamide 12. As metallic implants, the wedges are not subject to resorption.

Features

Placed directly, without carving or on-site adjustment
Sized wedges (12 EVANS, 6 COTTON) for controlled correction
Porous structure and textured surfaces for primary fixation to the bone
Wedges and instrument kit supplied sterile: no sterilisation or instrument processing required
Ancillary fixation at the surgeon’s discretion; the current surgical technique does not recommend it

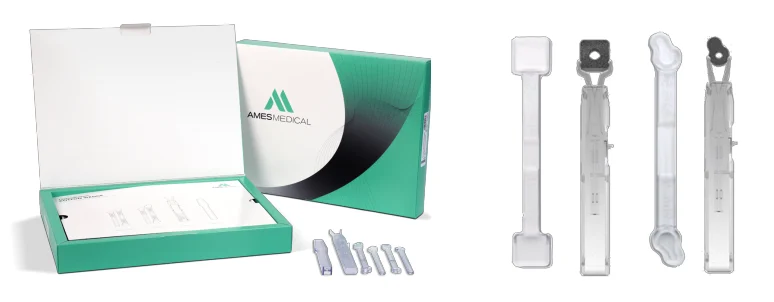

Single-use kit: one sizer for each size and type of wedge, tweezers to hold and insert the wedge, and an impactor used with a standard mallet (not supplied)
Material properties (representative values, manufacturer data): elastic modulus 2.8 GPa, compressive yield strength 31 MPa

Indications

Internal osteotomies of the bones of the foot in the correction of adult-acquired flatfoot (stage II posterior tibial tendon dysfunction):

lateral column lengthening (Evans osteotomy);
opening wedge osteotomy of the medial cuneiform (Cotton osteotomy).

Not intended for use in the spine.

Contraindications

Infection.
Physiologically or psychologically inadequate patient (limited ability or willingness to restrict activities or follow post-operative instructions).
Inadequate skin, bone or neurovascular conditions, which may delay healing.
Growing patients with open epiphyses.
Foreign-body sensitivity: where material sensitivity is suspected, test before implantation.
Smoking may result in delayed healing, non-healing or compromised stability.

See the electronic instructions for use (eIFU) for full information.

Sizes and ordering

For availability, kit contents or a quote, use Enquire above or call us.

OsteoSinter® EVANS wedges — 12 sizes12 items

Ref.	Name	Width (mm) [W]	Length (mm) [L]	Height (mm) [H]
P00209A1	OsteoSinter® EVANS wedge 18W × 18L × 6H	18	18	6
P00200B1	OsteoSinter® EVANS wedge 18W × 18L × 8H	18	18	8
P00201B1	OsteoSinter® EVANS wedge 18W × 18L × 10H	18	18	10
P00202B1	OsteoSinter® EVANS wedge 18W × 18L × 12H	18	18	12
P00210A1	OsteoSinter® EVANS wedge 20W × 20L × 6H	20	20	6
P00203B1	OsteoSinter® EVANS wedge 20W × 20L × 8H	20	20	8
P00204B1	OsteoSinter® EVANS wedge 20W × 20L × 10H	20	20	10
P00205B1	OsteoSinter® EVANS wedge 20W × 20L × 12H	20	20	12
P00211A1	OsteoSinter® EVANS wedge 22W × 22L × 6H	22	22	6
P00206B1	OsteoSinter® EVANS wedge 22W × 22L × 8H	22	22	8
P00207B1	OsteoSinter® EVANS wedge 22W × 22L × 10H	22	22	10
P00208B1	OsteoSinter® EVANS wedge 22W × 22L × 12H	22	22	12

OsteoSinter® COTTON wedges — 6 sizes6 items

Ref.	Name	Length (mm) [L]	Height (mm) [H]
P00300B1	OsteoSinter® COTTON wedge 15L × 4.5H	15	4.5
P00301B1	OsteoSinter® COTTON wedge 15L × 5.5H	15	5.5
P00302B1	OsteoSinter® COTTON wedge 15L × 6.5H	15	6.5
P00303B1	OsteoSinter® COTTON wedge 20L × 4.5H	20	4.5
P00304B1	OsteoSinter® COTTON wedge 20L × 5.5H	20	5.5
P00305B1	OsteoSinter® COTTON wedge 20L × 6.5H	20	6.5

Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the AMES Medical website or the instructions for use before ordering.
