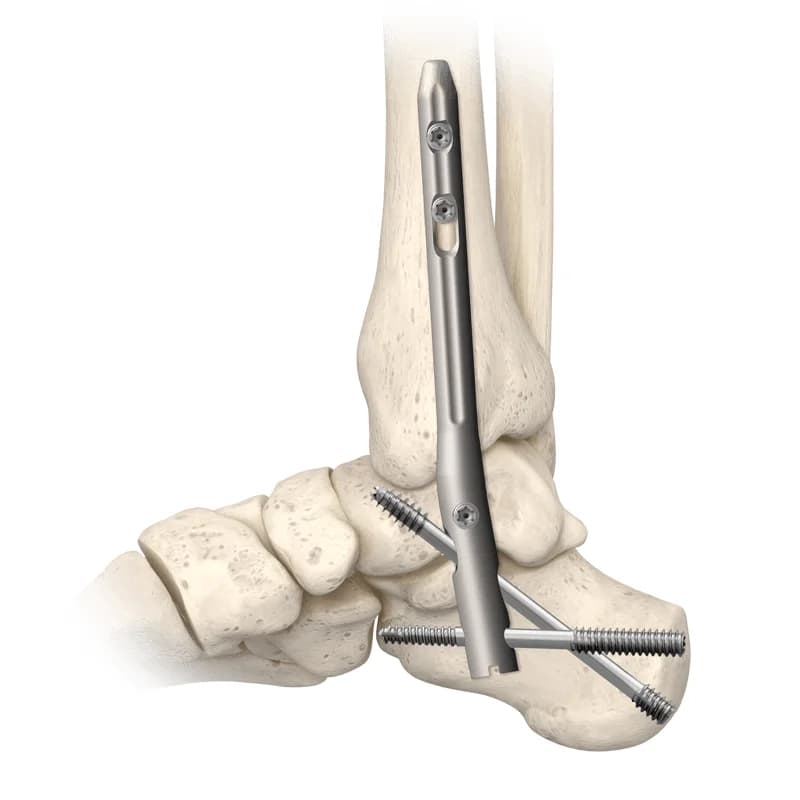

The TriWay® TibioTaloCalcaneal (TTC) Arthrodesis System is a solid intramedullary nail with an anatomical 7° posterior offset, used for tibiotalocalcaneal arthrodesis with multiplanar fixation. The nail is inserted with a cannulated instrument and reaming system and a radiolucent targeting guide, which includes an aiming guide for the subtalar compression screw.
An IBS® 6.5 mm Compression Screw placed through the subtalar joint and through the Nail is required.
Features
- Solid nail, with a cannulated instrument and reaming system for insertion.
- Anatomical 7° posterior offset, designed for purchase in the calcaneus.
- Multiplanar fixation: medio-lateral and postero-anterior.
- 5.0 mm titanium cotter screws (25 to 90 mm) and 5.0 mm headed screws for proximal tibial fixation.
- Left and right nails, 10, 11 and 12 mm in diameter and 160 to 250 mm long.
- Radiolucent targeting guide with an aiming guide for the subtalar compression screw.
Indications
Tibiotalocalcaneal arthrodesis and treatment of trauma to the hindfoot and distal tibia. Examples include:
- post-traumatic and degenerative arthritis involving both the ankle and subtalar joints;
- rheumatoid arthritis with severe deformity;
- revision of failed ankle arthrodesis with subtalar involvement or insufficient talar body;
- revision of failed total ankle arthroplasty with subtalar intrusion;
- talar deficiency, including avascular necrosis (requiring tibiocalcaneal arthrodesis);
- neuropathic or neuromuscular deformity or instability of the ankle, including Charcot foot;
- severe pilon fractures with trauma to the subtalar joint, and malunited tibial pilon fractures.
An IBS® 6.5 mm compression screw through the subtalar joint and through the nail is required.
Contraindications
Current or past acute or chronic systemic inflammation; active infection; sensitivity or allergy to the implant materials; bone pathologies that may compromise the rigidity of fixation (e.g. osteoporosis, acute cystic developments, acute osteopenia, bone tumour).
See the instructions for use for full information.
Sizes and ordering
Implants are supplied sterile. Codes are from CONMED's CE-market catalogue (2025) and the TriWay surgical technique (08/2023).
TriWay® arthrodesis nails, sterile16 items
| Ref. | Side | Diam. | Length |
|---|---|---|---|
| N20 ST101 | Right | 10 mm | 160 mm |
| N20 ST102 | Right | 10 mm | 200 mm |
| N20 ST111 | Right | 11 mm | 160 mm |
| N20 ST112 | Right | 11 mm | 200 mm |
| N20 ST113 | Right | 11 mm | 250 mm |
| N20 ST121 | Right | 12 mm | 160 mm |
| N20 ST122 | Right | 12 mm | 200 mm |
| N20 ST123 | Right | 12 mm | 250 mm |
| N20 ST201 | Left | 10 mm | 160 mm |
| N20 ST202 | Left | 10 mm | 200 mm |
| N20 ST211 | Left | 11 mm | 160 mm |
| N20 ST212 | Left | 11 mm | 200 mm |
| N20 ST213 | Left | 11 mm | 250 mm |
| N20 ST221 | Left | 12 mm | 160 mm |
| N20 ST222 | Left | 12 mm | 200 mm |
| N20 ST223 | Left | 12 mm | 250 mm |
TriWay® headed screws, Ø 5.0 mm, sterile7 items
| Ref. | Length |
|---|---|
| N20 ST720 | 20 mm |
| N20 ST722 | 22.5 mm |
| N20 ST725 | 25 mm |
| N20 ST727 | 27.5 mm |
| N20 ST730 | 30 mm |
| N20 ST732 | 32.5 mm |
| N20 ST735 | 35 mm |
TriWay® cotter screws, Ø 5.0 mm, titanium, sterile14 items
| Ref. | Length |
|---|---|
| N20 ST525 | 25 mm |
| N20 ST530 | 30 mm |
| N20 ST535 | 35 mm |
| N20 ST540 | 40 mm |
| N20 ST545 | 45 mm |
| N20 ST550 | 50 mm |
| N20 ST555 | 55 mm |
| N20 ST560 | 60 mm |
| N20 ST565 | 65 mm |
| N20 ST570 | 70 mm |
| N20 ST575 | 75 mm |
| N20 ST580 | 80 mm |
| N20 ST585 | 85 mm |
| N20 ST590 | 90 mm |
I.B.S.™ C compression screws, Ø 6.5 mm, sterile7 items
| Ref. | Length |
|---|---|
| S65 ST160 | 60 mm |
| S65 ST165 | 65 mm |
| S65 ST170 | 70 mm |
| S65 ST175 | 75 mm |
| S65 ST180 | 80 mm |
| S65 ST185 | 85 mm |
| S65 ST190 | 90 mm |
I.B.S.™ C+ compression screws, Ø 6.5 mm (30 mm distal thread), sterile7 items
| Ref. | Length |
|---|---|
| S65 ST560 | 60 mm |
| S65 ST565 | 65 mm |
| S65 ST570 | 70 mm |
| S65 ST575 | 75 mm |
| S65 ST580 | 80 mm |
| S65 ST585 | 85 mm |
| S65 ST590 | 90 mm |

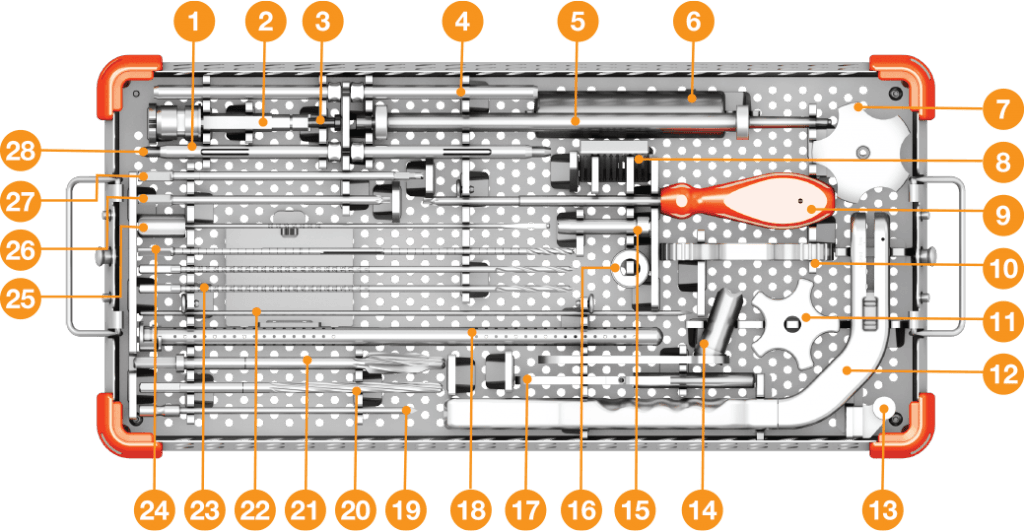

TriWay® instruments33 items

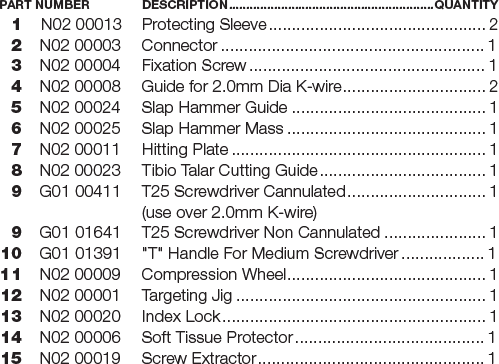

| Ref. | Description |
|---|---|
| N02 00013 | Protecting Sleeve |
| N02 00003 | Connector |
| N02 00004 | Fixation Screw |
| N02 00008 | Drill guide Guide for 2.0mm Dia K-wire |
| N02 00024 | Slap Hammer Guide |
| N02 00025 | Slap Hammer Mass |
| N02 00011 | Hitting Plate |
| N02 00023 | Tibio Talar Cutting Guide |
| G01 00411 | T25 Screwdriver Cannulated |
| G01 01641 | T25 Screwdriver Non Cannulated |
| G01 01391 | «T» Handle For Medium Screwdriver |
| N02 00009 | Compression Wheel |
| N02 00001 | Targeting Jig |
| N02 00020 | Index Lock |
| N02 00006 | Soft Tissue Protector |
| N02 00019 | Screw Extractor |
| N02 00010 | Compression Sleeve |
| N02 00005 | Index Tab |
| G01 40041 | K-wire Tube (included in the container N02 10011) |
| N02 00017 | Guide wire 2.0 × 300 mm, for 6.5 mm IBS screws |
| K10 NS200 | 2.5mm Dia K-wire Lg 200mm 1 Sharp Tip Non Sterile |
| K10 NS251 | 2.5mm Dia K-wire Lg 100mm 1 Sharp Tip Non Sterile |
| N02 00026 | Trocar Tip 4.3mm Dia |
| N02 00027 | Reamer 7.0 mm, cannulated |
| N02 00016 | Reamer 14.0 mm, cannulated |
| N02 00014 | Guide wire 3.2 × 350 mm, for 7 and 14 mm reamers |
| N02 00015 | Reamer 4.3 mm, non-cannulated |
| G01 01651 | Reamer 4.3 × 275 mm, cannulated, for 6.5 mm screws (over 2.0 mm guide wire) |
| N02 00018 | Depth Gauge |
| G01 01591 | T25 Screwdriver Tip Cannulated K-wire 2.0mm |
| N02 00021 | Cannulated step reamer: countersink for cotter screw |
| N02 00007 | 4.3mm Drill Guide |
| N02 10011 | TriWay container, reusable instruments |
Codes and sizes are taken from the manufacturer's marketing literature and may change. For current information, check the ConMed website or the instructions for use before ordering.
